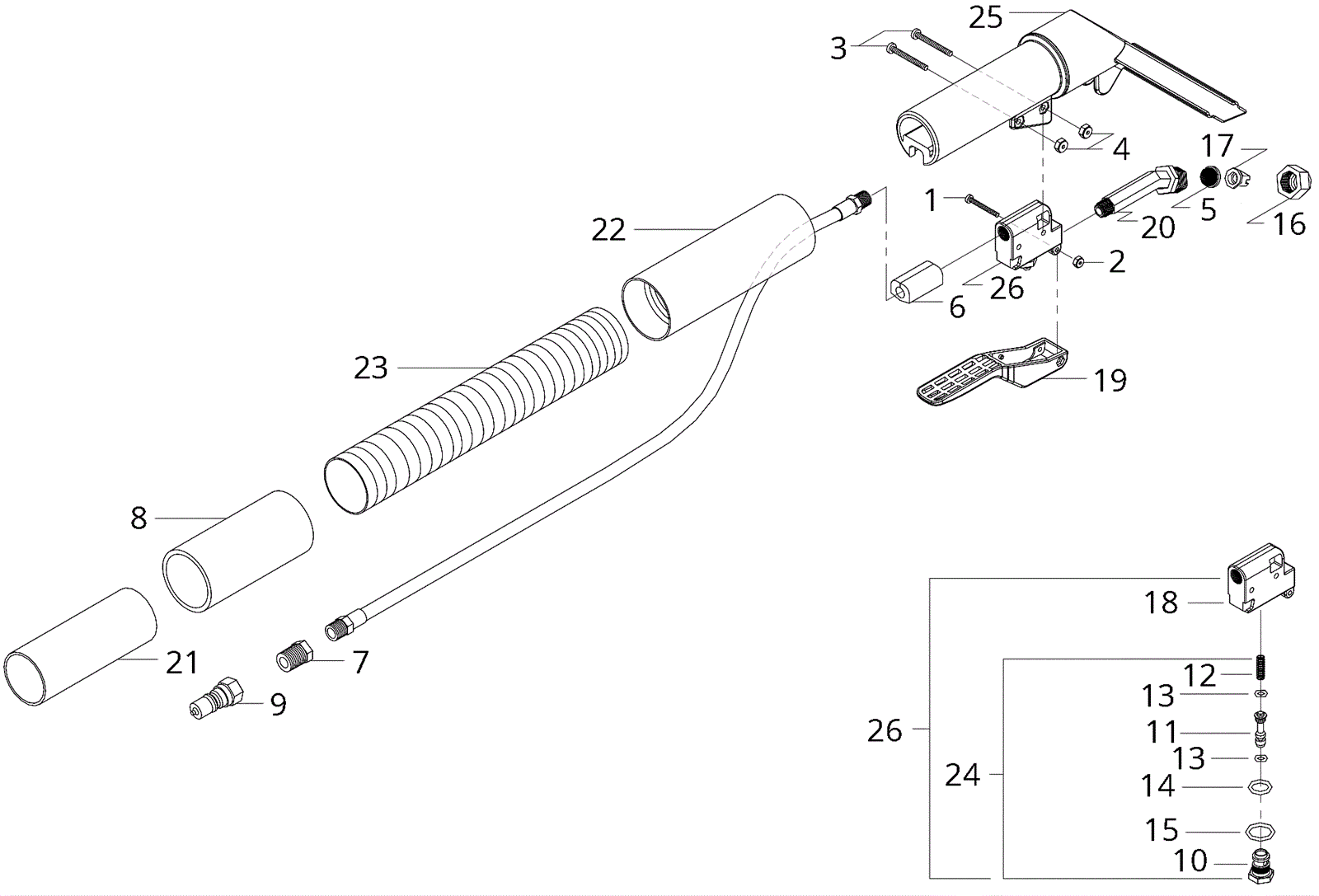

Hand Tool Assembly

#PartDescription ReqNotesAvailability
1 999-0339 Screw 4-40 x 7/8 round head slotted zinc plated 1
2 999-0295 Nut 4-40 nylon insert lock stainless steel 1
3 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
4 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
5 262-0254 4 inch filter 1
6 262-0255 Grommet 1
7 262-0063 Hex fitting 1
8 262-0052 Hose cuff 1
9 262-0013 Quick connect 1
10 262-0256 Valve stem guide 1
11 262-0257 Valve stem 1
12 262-0258 4 inch valve spring 1
13 262-0259 O-ring 2
14 262-0260 O-ring 1
15 262-0261 O-ring 1
16 262-0262 Cap nut 1
17 262-0263 Jet 1
18 262-0264 4 inch valve 1
19 262-0265 4 inch trigger 1
20 262-0266 4 inch elbow 1
21 262-0267 Coupler 1
22 262-0268 Hose 1
23 262-0049 12 inch vacuum hose 1
24 262-0003 4 inch tool stem assembly 1 (includes 10-15)
25 262-0048 4 inch detail tool handle assembly 1
26 262-0269 Valve 1 (includes 10-15, 18, 26)
N/S 262-0309 Screw 1
N/S 999-0357 Nut 8-32 nylon insert lock stainless steel 1
N/S 262-0429 Hose cuff 1
