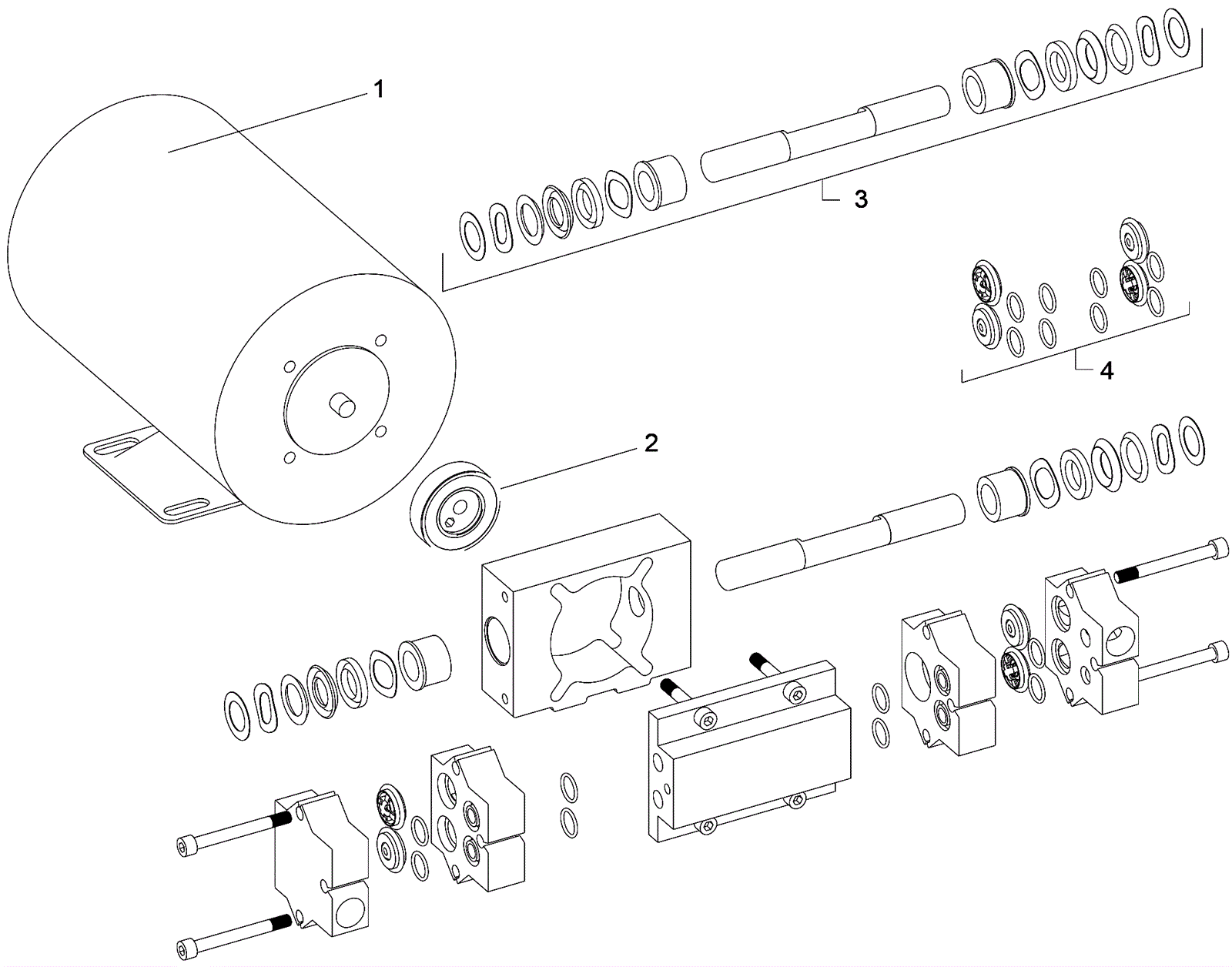

Pump Breakdown Assembly

#PartDescription ReqNotesAvailability
1a 262-0024 Pump assembly 1
1b 262-0622 220V 50hz pump 1
1c 262-0623 100V pump 1
1d 262-0624 220V 60hz pump 1
1e 262-0625 110V motor 1
1f 262-0626 100V motor 1
1g 262-0627 220V 60hz motor 1
1h 262-0628 220V motor 1
2a 262-0410 Cam and bearing 1
2b 262-0629 100V pump bearing 1
2c 262-0630 220V pump bearing 1
3 262-0411 Plunger and seal kit 1
4 262-0412 Valve and ring kit 1
