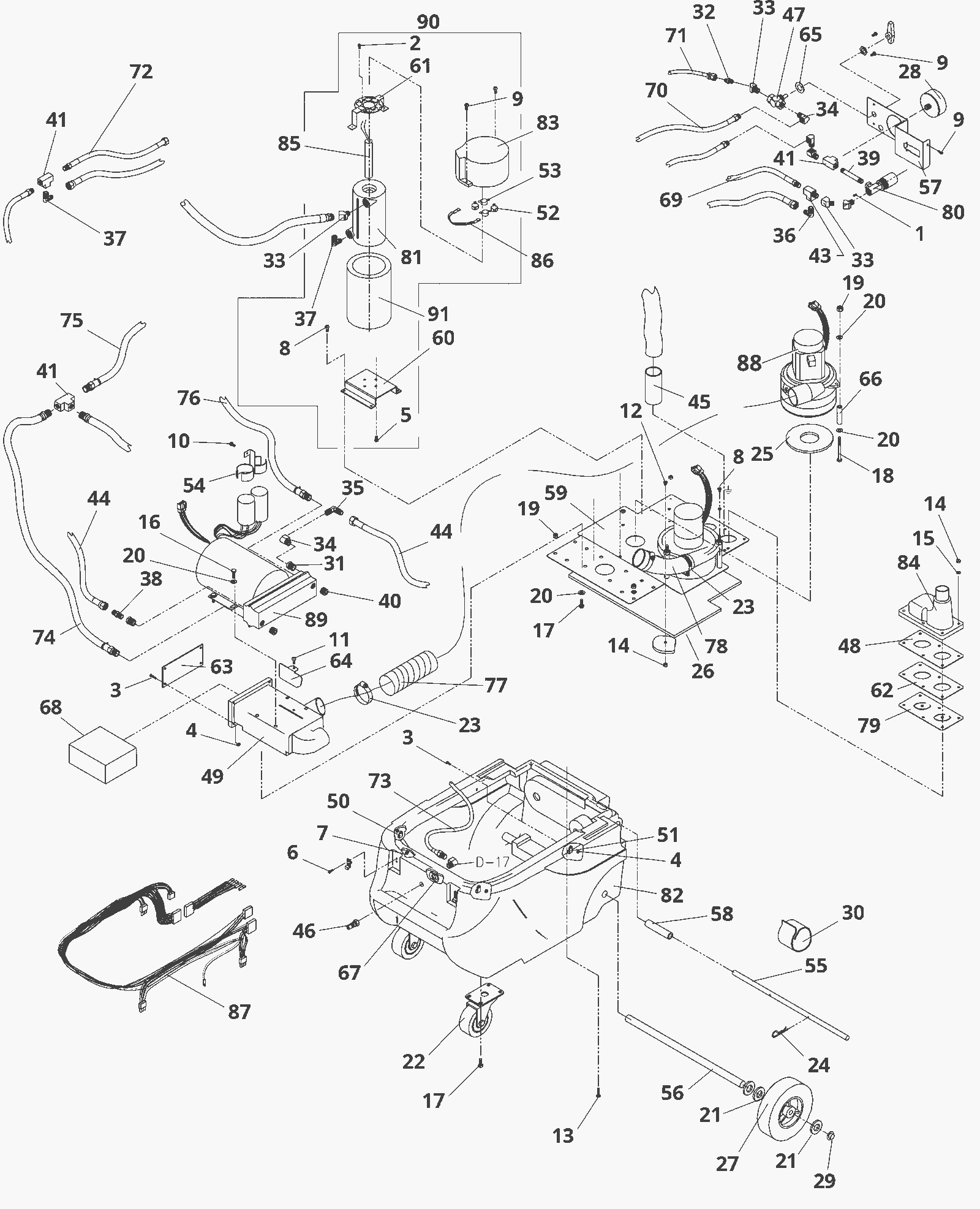

Base Assembly

#PartDescription ReqNotesAvailability
1 999-0941 Screw 4-40 x 1/4 pan head phillips stainless steel 2
2 262-0202 Screw 6-32 x 3/8 phillips 4
3 262-0078 Bolt 8
4 262-0151 Nut 8
5 262-0309 Screw 4
6 262-0153 Screw 8-32 x 3/4 4
7 999-0151 Nut 8-32 nylon insert lock zinc plated 4
8 262-0077 Screw 5
9 262-0094 Screw 5
10 262-0284 Screw 10-32 1
11 262-0311 Screw 3
12 262-0145 Screw 1
13 191-0276 Screw 2
14 262-0285 Nut 7
15 262-0093 Washer 6
16 262-0104 Bolt 4
17 262-0147 Screw 12
18 999-0864 Screw 1/4-20 x 4 1/2 hex head plain finish 6
19 999-0441 Nut 1/4-20 nylon lock jam zinc plated 14
20 262-0057 Washer 20
21 262-0314 Washer 6
22 262-0020 Caster wheel 2
23 262-0074 Clamp 4
24 262-0315 Cotter pin 2
25 175-0053 Gasket 2
26 262-0316 Gasket 1
27 262-0028 Wheel 2
28 262-0408 Pressure gauge 1
29 262-0318 Push nut fastner 2
30 262-0349 Velcro 1
31 262-0347 Bushing 2
32 262-0407 Fitting 1
33 262-0011 45 degree elbow 4
34 262-0023 90 degree elbow 5
35 262-0406 90 degree elbow 1
36 262-0613 Straight elbow 1
37 262-0614 Elbow fitting 2
38 262-0209 Nipple 1
39 262-0405 Nipple 1
40 262-0404 Plug 2
41 262-0210 Tee 3
42 262-0615 Tee fitting 3/8 x 1/8 inch 1
43 262-0321 Tee 1
44 262-0616 1/4 inch pulse hose 2
45 262-0052 Hose cuff 1
46 262-0013 Quick connect 1
47 262-0007 Ball valve 1
48 262-0323 Vacuum shut off valve 1
49 262-0324 Pump mount 1
50 262-0325 Cable clamp 2
51 262-0400 Cable clamp 2
52 262-0214 190 SPST thermostat 2
53 262-0215 230 SPST thermostat 2
54 262-0399 Bracket 1
55 262-0355 Axle 1
56 262-0327 Axle 1
57 262-0398 Bracket 1
58 262-0329 Pivot 2
59 262-0328 Plate 1
60 262-0330 Heater mount plate 1
61 262-0331 Plate 1
62 262-0332 Flapper valve plate 1
63 262-0333 Muffler mount cover plate 1
64 262-0356 Manifold bracket 1
65 262-0385 Nut 1
66 262-0183 Stand-off 6
67 262-0109 Spacer 1
68 262-0617 Muffling foam 1
69 262-0397 Hose 1
70 262-0409 5 inch solution hose 1
71 262-0396 12 inch hose 1
72 262-0395 8 inch hose 1
73 262-0394 9.5 inch hose 1
74 262-0393 14 inch hose 1
75 262-0392 25 inch hose 1
76 262-0391 8 inch hose 1
77 262-0339 Flex hose 1
78 262-0618 Flex hose 1
79 262-0340 Valve 1
80 262-0006 Unloader valve 1
81 262-0341 Casting exchange 1
82 262-0389 Base 1
83 262-0270 Heater cover 1
84 262-0343 Vacuum manifold 1
85 262-0621 Heating element 1
86 262-0230 Wire (black) 2
87 262-0619 Base harness 1
88 262-0415 3 stage vacuum motor with plug 2
89 262-0024 Pump assembly 1
