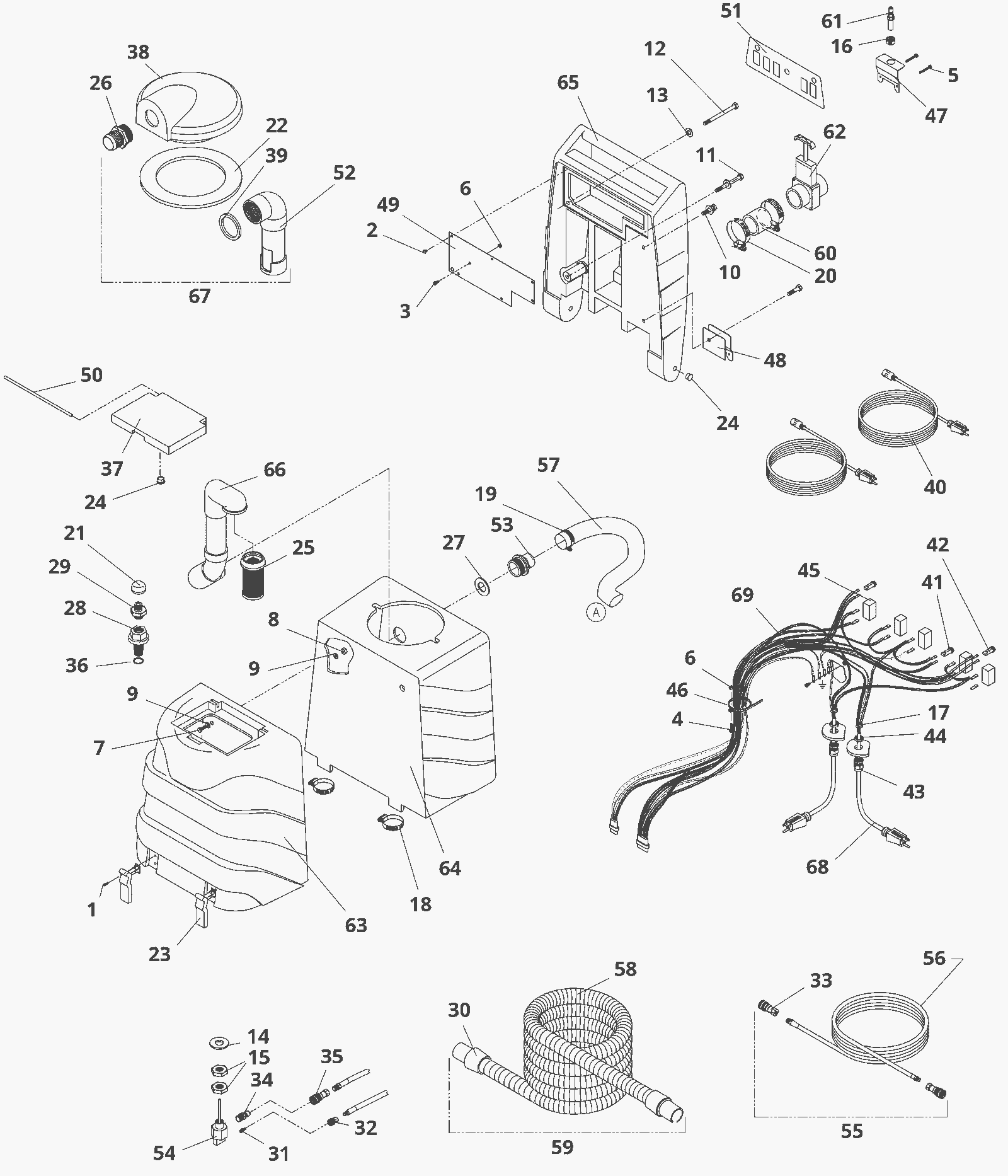

Tank Assembly

#PartDescription ReqNotesAvailability
1 262-0152 Screw 8-32 4
2 262-0077 Screw 6
3 262-0284 Screw 10-32 1
4 262-0145 Screw 1
5 191-0276 Screw 2
6 262-0285 Nut 2
7 262-0286 Screw 2
8 262-0159 Nut 1/4-20 stainless steel 2
9 262-0160 Washer 1/4 4
10 191-0277 Screw 2
11 191-0278 Screw 1
12 999-1566 Screw 3/8-16 x 4 3/4 hex head zinc plated 1
13 262-0287 Washer 3
14 262-0204 Washer 3/4 flat 1
15 262-0205 Nut 3/4-16 2
16 262-0130 Bushing holder 1
17 262-0163 Hose clamp 2
18 262-0288 Hose clamp 2
19 262-0135 2 inch hose clamp 1
20 262-0074 Clamp 2
21 262-0114 Mesh filter 1
22 191-0166 Gasket 1
23 262-0019 Latch 2
24 262-0044 Drain plug 3
25 191-0290 Float cage 1
26 262-0169 Hose barb 1
27 262-0289 Washer 1
28 262-0207 Bolt 3/4-16 1
29 262-0208 Adapter 1
30 262-0242 Hose cuff 2
31 262-0370 Plug 1
32 262-0371 Cuff 1
33 262-0133 1/4 inch female quick connect 2
34 262-0372 Plug 1
35 262-0373 Cuff 1
36 262-0374 O-ring 1
37 262-0009 Lid 1
38 262-0416 Lid 1
39 262-0306 Spacer 1
40 262-0042 25 foot power cord 2
41 262-0213 Green light 1
42 191-0286 Switch 2
43 191-0285 Strain relief 2
44 262-0179 Bushing 2
45 262-0005 2 lead switch 5
46 262-0290 Wire tie 1
47 262-0292 Bracket 1
48 262-0293 Dump valve bracket 1
49 262-0294 Handle plate 1
50 262-0010 Hinge 1
51 262-0607 Panel 1
52 262-0296 Elbow 1
53 191-0292 1 1/2 inch hose barb 1
54 262-0608 Tee fitting 1
55 262-0250 25 foot solution hose assembly 1 (includes 33, 56)
56 262-0307 Hose 1
57 262-0297 Vacuum hose 1
58 262-0253 25 foot vacuum hose (grey) 1
59 262-0298 Vacuum hose 1 (includes 58)
60 191-0279 Vinyl hose 1
61 262-0128 Nozzle 1
62 262-0299 Dump valve 1
63 262-0300 Solution tank 1
64 262-0609 Vac tank 1
65 262-0610 Handle 1
66 191-0287 Vacuum hose 1
67 262-0303 Lid assembly (gray) 1 (includes 22, 26, 28-39, 49)
68 262-0304 Pigtail 2
69 262-0611 Handle harness 1
