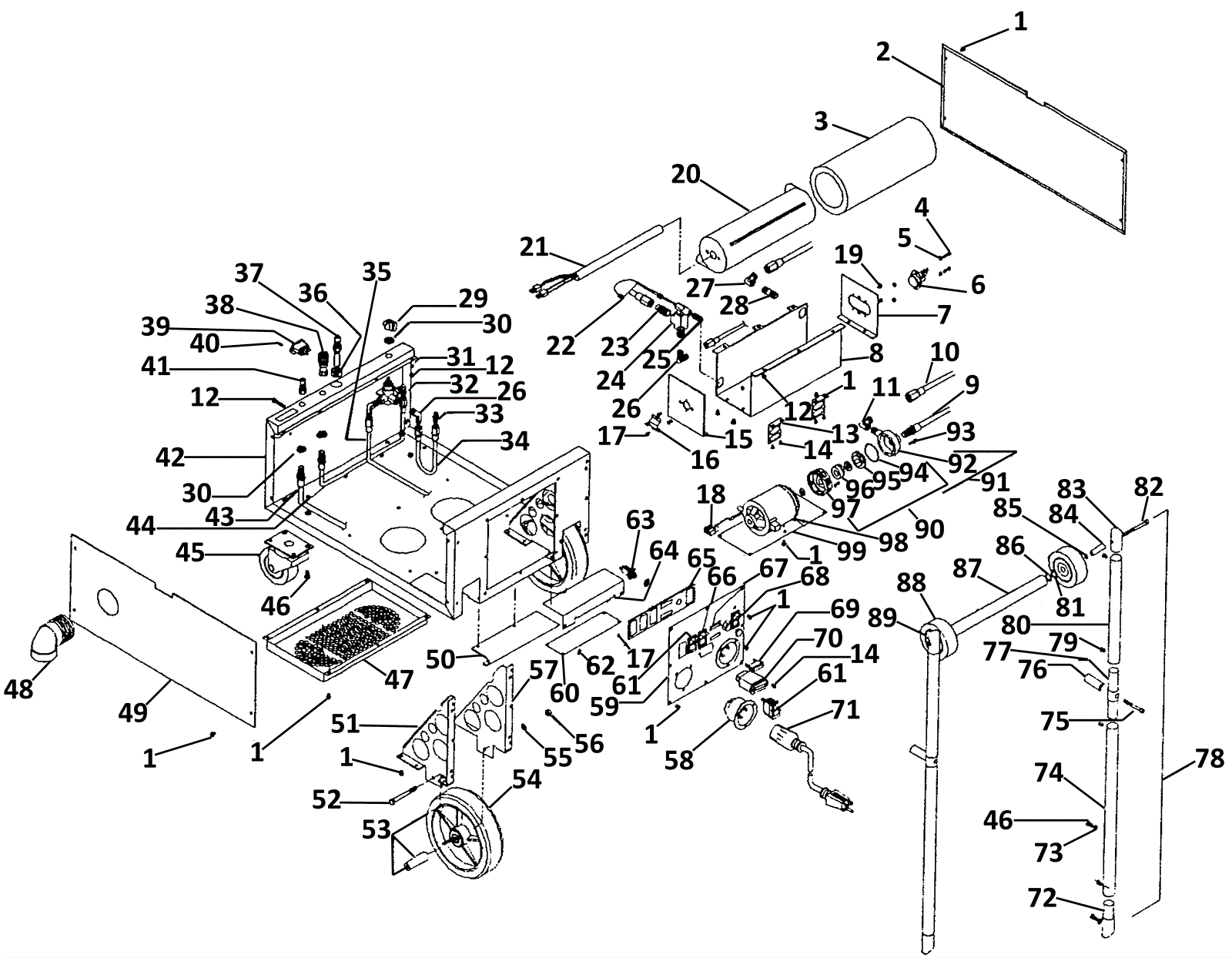

508 HX Lower Assembly

#PartDescriptionPriceReqNotesAvailability
1 262-0077 Screw $1.00 usually ships 3-14 days
4 262-0078 Bolt $0.90 usually ships 3-14 days
5 262-0151 Nut $0.90 usually ships 3-14 days
7 262-0081 Bracket $35.25 usually ships 3-14 days
12 262-0083 Nut $0.90 usually ships 3-14 days
13 262-0119 Support $18.20 usually ships 3-14 days
14 262-0086 Screw $0.90 usually ships 3-14 days
15 262-0085 Bracket $35.25 usually ships 3-14 days
16 262-0113 Bracket $10.10 usually ships 3-14 days
17 262-0102 Screw $0.90 usually ships 3-14 days
18 262-0099 Plug $2.14 usually ships 3-14 days
19 262-0080 Screw $0.90 usually ships 3-14 days
20 262-0115 Heat exchanger $682.55 usually ships 3-14 days
22 262-0139 20 inch thermosensor $83.72 usually ships 3-14 days
23 262-0066 Adapter $8.07 usually ships 3-14 days
25 262-0118 1/4 inch nipple $8.82 usually ships 3-14 days
26 262-0613 Straight elbow Call for price usually ships 3-14 days
30 262-0064 Nut $10.85 usually ships 3-14 days
31 262-0106 Nut $1.40 usually ships 3-14 days
33 262-0069 Adapter $3.76 usually ships 3-14 days
34 262-0070 Hose $54.62 usually ships 3-14 days
36 262-0130 Bushing holder $0.90 usually ships 3-14 days
37 262-0128 Nozzle $70.75 usually ships 3-14 days
38 262-0133 1/4 inch female quick connect $59.11 usually ships 3-14 days
41 262-0013 Quick connect $34.70 usually ships 3-14 days
43 262-0110 Hose $76.95 usually ships 3-14 days
44 262-0068 Hose $75.30 usually ships 3-14 days
45 262-0020 Caster wheel $80.44 usually ships 3-14 days
46 262-0104 Bolt $0.90 usually ships 3-14 days
54 262-0276 Wheel $100.72 usually ships 3-14 days
60 262-0101 Plate $680.15 usually ships 3-14 days
61 262-0278 Switch $37.59 usually ships 3-14 days
62 262-0202 Screw 6-32 x 3/8 phillips $0.90 usually ships 3-14 days
63 262-0095 Button $31.43 usually ships 3-14 days
64 262-0100 Bracket $56.62 usually ships 3-14 days
69 262-0097 Button $15.22 usually ships 3-14 days
71 262-0030 Power cord $88.40 usually ships 3-14 days
73 262-0057 Washer $0.90 usually ships 3-14 days
79 999-1509 Screw 10-32 x 3/8 flat head phillips stainless steel $0.99 ships same day
85 262-0313 Washer $0.90 usually ships 3-14 days
92 262-0090 Cap $173.97 usually ships 3-14 days
93 262-0089 Screw $3.14 usually ships 3-14 days
94 262-0091 O-ring $5.08 usually ships 3-14 days
95 262-0120 Impeller kit $60.58 usually ships 3-14 days
