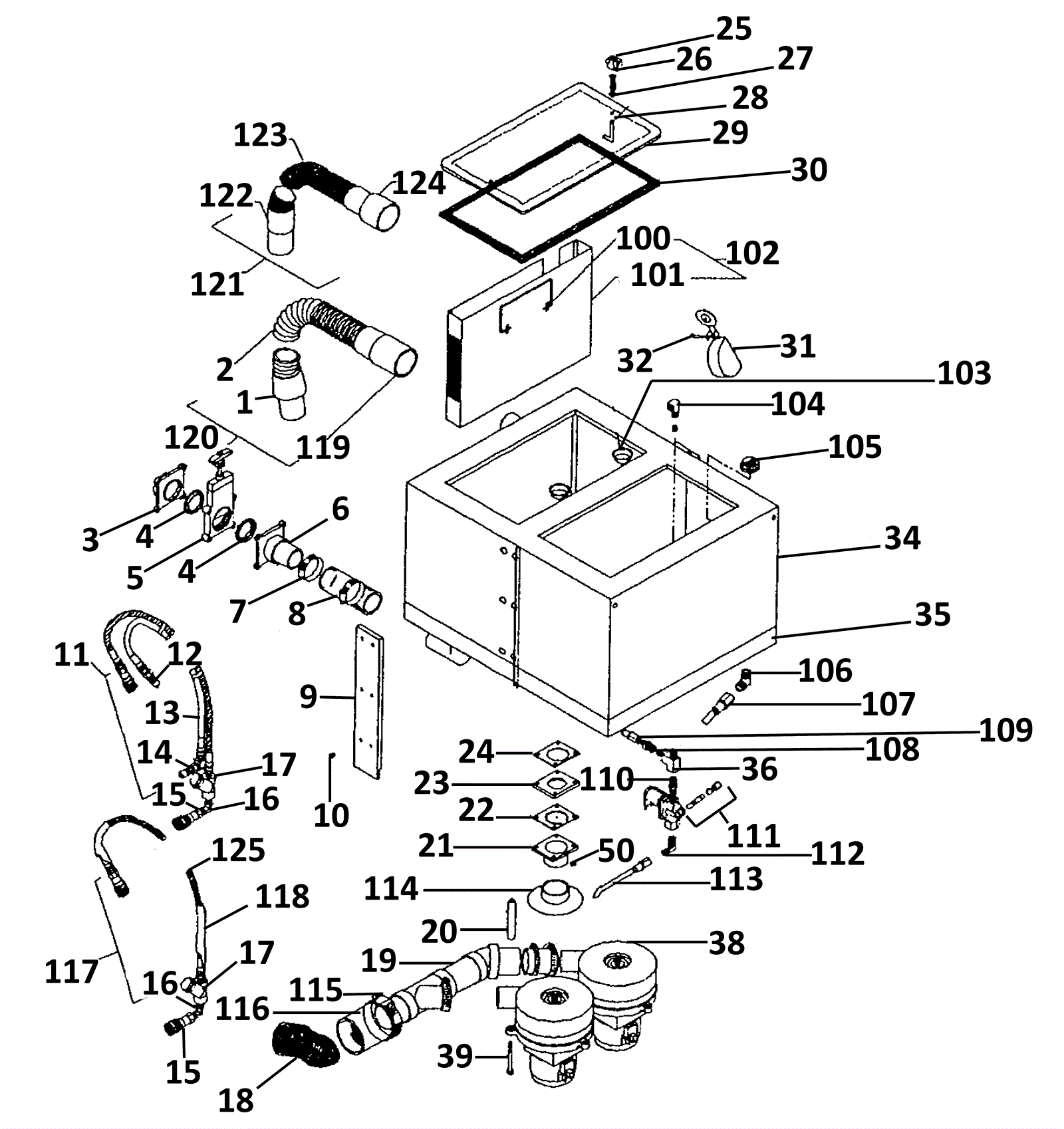

508 HX Upper Assembly

#PartDescriptionPriceReqNotesAvailability
2 262-0253 25 foot vacuum hose (grey) $132.27 usually ships 3-14 days
3 262-0138 Dump valve spigot $14.30 usually ships 3-14 days
4 262-0137 Dump valve seal $29.38 usually ships 3-14 days
5 262-0033 Dump valve $63.72 usually ships 3-14 days
6 262-0136 Dump valve adapter with nut $31.30 usually ships 3-14 days
7 262-0135 2 inch hose clamp $8.09 usually ships 3-14 days
8 262-0144 Hose $8.55 usually ships 3-14 days
10 262-0053 Screw $0.99 usually ships 3-14 days
12 262-0013 Quick connect $38.17 usually ships 3-14 days
14 262-0023 90 degree elbow $7.52 usually ships 3-14 days
15 262-0133 1/4 inch female quick connect $65.02 usually ships 3-14 days
16 262-0406 90 degree elbow Call for price usually ships 3-14 days
26 262-0057 Washer $0.90 usually ships 3-14 days
27 262-0056 Spring $2.88 usually ships 3-14 days
36 262-0321 Tee $15.57 usually ships 3-14 days
37 262-0074 Clamp $7.08 usually ships 3-14 days
38 262-0045 Vacuum motor $284.63 usually ships 3-14 days
50 262-0083 Nut $0.99 usually ships 3-14 days
103 262-0040 Filter $6.28 usually ships 3-14 days
110 262-0209 Nipple $4.27 usually ships 3-14 days
112 262-0613 Straight elbow Call for price usually ships 3-14 days
125 262-0307 Hose $218.44 usually ships 3-14 days
