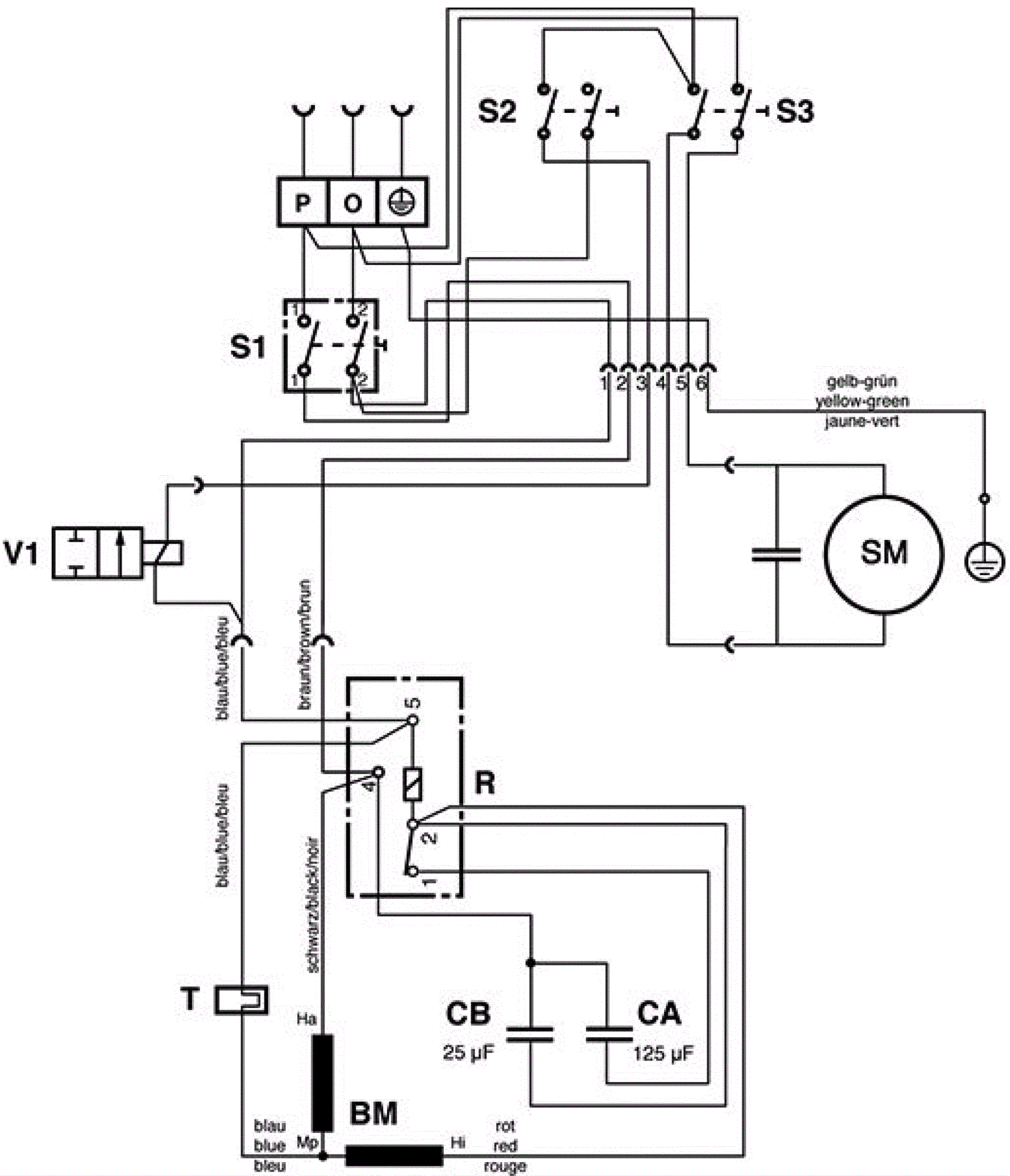

RA 501E Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
BM 195-0072 230V motor Call for price 1 usually ships 9-26 days
CA 195-0038 320V capacitor Call for price 1 usually ships 9-26 days
CB 195-0034 Capacitor Call for price 1 usually ships 9-26 days
S1 195-3676 Switch $99.00 1 usually ships 9-26 days
SM 295-1983 Vacuum motor $706.20 1 usually ships 1-5 days
V1 195-0068 230V magnetic valve Call for price 1 usually ships 9-26 days
