RA 501E

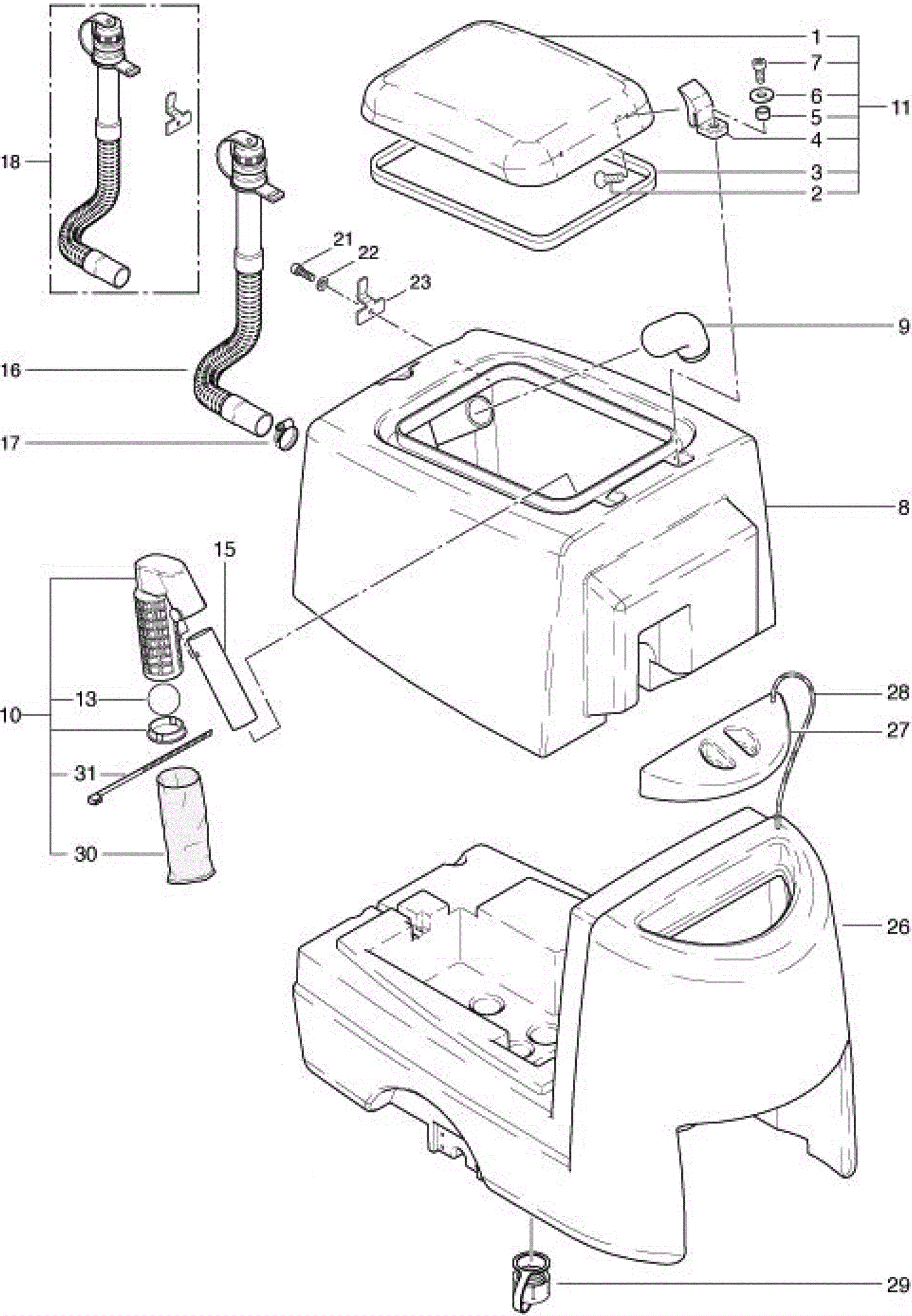

Tank Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
195-8981
Recovery tank lid
$219.12
1
usually ships 1-5 days
2
195-3600
Screw M4 x 8mm
Call for price
1
usually ships 15-20 days
3
195-8982
Recovery tank lid gasket
$46.20
1
usually ships 1-5 days
4
261-0012
Hinge for lid
$8.25
1
usually ships 1-5 days
5
261-0011
Spacer
$4.29
1
usually ships 1-5 days
6
261-0013
Washer
$3.30
1
usually ships 1-5 days
7
261-0014
Screw
$3.30
1
usually ships 1-5 days
8
195-0045
Waste water tank
Call for price
1
usually ships 15-20 days
9
195-3607
Angled pipe
Call for price
1
usually ships 15-20 days
10
195-3608
Float assembly
Call for price
1
(includes 13, 30-31)
usually ships 15-20 days
11
195-0046
Tank cover assembly
Call for price
1
(includes 1-7)
usually ships 15-20 days
13
195-3611
Float ball
Call for price
1
usually ships 15-20 days
15
195-3613
Vacuum hose
Call for price
1
usually ships 15-20 days
16
195-8989
Recovery tank drain hose assembly (OBSOLETE)
$49.17
1
usually ships 16-24 days
17
195-3615
Hose clamp
Call for price
1
usually ships 15-20 days
18
195-8989
Recovery tank drain hose assembly (OBSOLETE)
$49.17
1
(before SN 9040.002)
usually ships 16-24 days
21
261-0014
Screw
$3.30
1
usually ships 1-5 days
22
195-3706
Washer M5 serrated
Call for price
1
usually ships 15-20 days
23
195-0048
Hose support
Call for price
1
usually ships 15-20 days
26
195-0049
Clean water tank
Call for price
1
usually ships 15-20 days
27
195-3629
Solution tank cover
Call for price
1
usually ships 15-20 days
28
195-3630
Cord
Call for price
1
usually ships 15-20 days
29
195-3633
Cap
Call for price
1
usually ships 15-20 days
30
295-1993
Filter
$76.56
1
usually ships 1-5 days
31
195-3639
Cable tie
Call for price
1
usually ships 15-20 days
