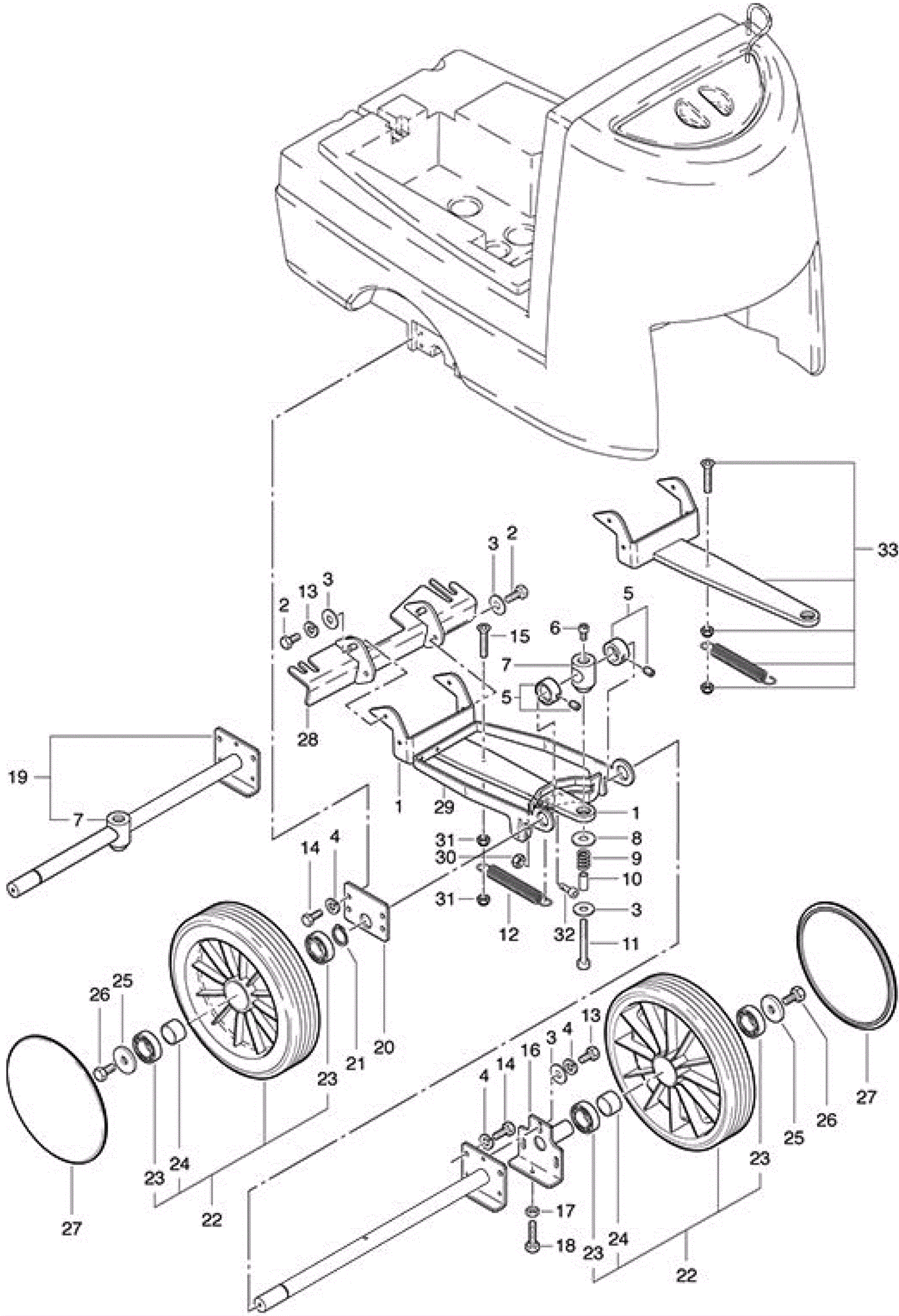

RA 501E Chassis and Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 195-0040 Lever Call for price 2 usually ships 9-26 days
2 195-3570 Screw M6 Call for price 2 usually ships 9-26 days
3 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
4 195-3572 Spring washer Call for price 3 usually ships 9-26 days
5 195-3573 Tension ring with thred pin Call for price 2 usually ships 9-26 days
6 195-0041 Screw M6 x 10mm Call for price 1 usually ships 9-26 days
7 195-3574 Ball stud Call for price 2 usually ships 9-26 days
8 195-3575 Washer Call for price 1 usually ships 9-26 days
9 195-3576 Compression spring Call for price 1 usually ships 9-26 days
10 195-3577 Washer Call for price 1 usually ships 9-26 days
11 195-3578 Screw M6 Call for price 1 usually ships 9-26 days
12 195-3579 Spring Call for price 1 usually ships 9-26 days
13 195-3580 Screw M6 hex Call for price 2 usually ships 9-26 days
14 195-3560 Screw $9.44 2 usually ships 9-26 days
15 195-0042 Screw M6 x 25mm countersunk Call for price 1 usually ships 9-26 days
16 195-3582 Clamping plate Call for price 1 usually ships 9-26 days
17 195-3583 Nut M6 Call for price 1 usually ships 9-26 days
18 195-3584 Screw M6 x 20mm Call for price 1 usually ships 9-26 days
19 195-0043 Axle Call for price 1 (includes 7) usually ships 9-26 days
20 195-3586 Clamping plate Call for price 1 usually ships 9-26 days
21 195-3587 Security ring Call for price 1 usually ships 9-26 days
22 261-0034 7 inch wheel $361.90 2 (includes 23-24) usually ships 9-26 days
23 195-3589 Ball bearing Call for price 4 usually ships 9-26 days
24 195-3590 Spacer Call for price 2 usually ships 9-26 days
25 195-3561 Washer Call for price 2 usually ships 9-26 days
26 195-3570 Screw M6 Call for price 2 usually ships 9-26 days
27 195-3592 Wheel cover Call for price 2 usually ships 9-26 days
28 195-3593 Nozzle support bracket $247.50 1 usually ships 9-26 days
29 195-3594 Nozzle bracket Call for price 1 usually ships 9-26 days
30 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
31 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 2 ships same day
32 195-0044 Screw M8 x 16mm hex head Call for price 1 usually ships 9-26 days
33 195-3598 Lever assembly Call for price 1 (before SN 8820.002) usually ships 9-26 days
