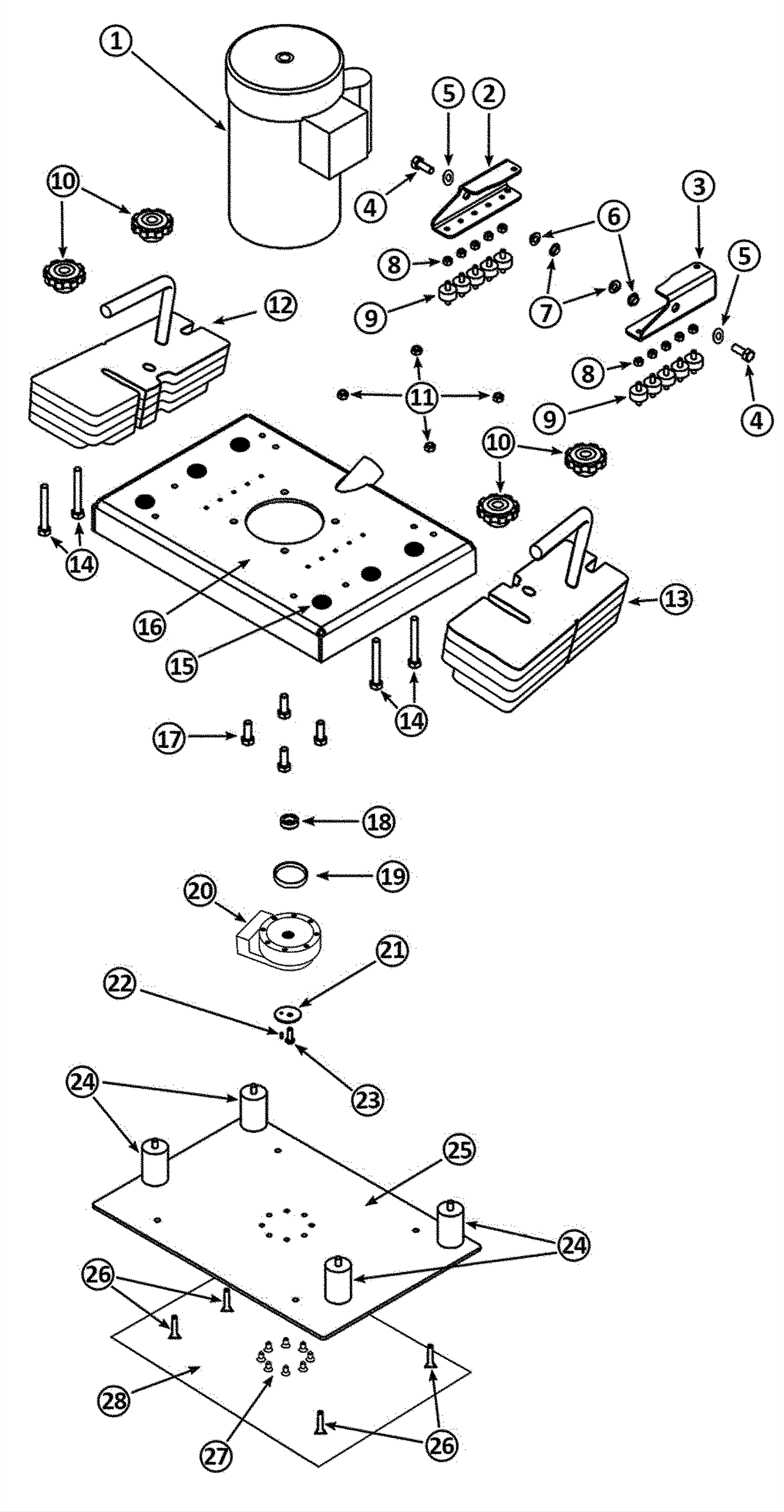

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
260-1002
|
1725 RPM motor (OBSOLETE) |
1 |
|
|
2 |
260-1239
|
Right hand pivot bracket |
1 |
|
|
3 |
260-1240
|
Left hand pivot bracket |
1 |
|
|
4 |
260-1241
|
3/8 inch pivot point bolt |
2 |
|
|
5 |
260-1329
|
Washer |
4 |
|
|
6 |
260-1228
|
Plastic flange bushing (pack of 2) |
2 |
|
|
7 |
260-1229
|
3/8 inch lock nut |
2 |
|
|
8 |
260-1244
|
1/4 inch lock nut |
5 |
|
|
9 |
260-1245
|
1/2 inch tall isolator (pkg of 10) |
5 |
|
|
10 |
260-1085
|
Knob |
4 |
|
|
11 |
260-1246
|
5/16 inch lock nut |
4 |
|
|
12 |
260-1334
|
Right side weight |
1 |
|
|
13 |
260-1333
|
Left side weight |
1 |
|
|
14 |
260-1009
|
Removable weight bolt |
4 |
|
|
15 |
260-1332
|
Felt dot |
6 |
|
|
16 |
260-1253
|
20 inch base |
1 |
|
|
17 |
260-1255
|
3/8 inch motor mount bolts |
4 |
|
|
18 |
260-1256
|
20 inch motor shaft spacer |
1 |
|
|
19 |
N/A
|
Not available |
1 |
(ring spacer) (avaliable in Kit3) |
|
20 |
N/A
|
Not available |
1 |
(20 in eccentric assembly) (available in Kit3) |
|
21 |
999-1054
|
Bolt 1/4-28 x 1 hex head stainless steel |
1 |
|
|
22 |
260-1205
|
Key |
1 |
|
|
23 |
999-1054
|
Bolt 1/4-28 x 1 hex head stainless steel |
1 |
|
|
24 |
260-1260
|
2 1/4 inch isolator (no longer available see kit) |
4 |
|
|
25 |
260-1261
|
20 inch aluminum driver plate |
1 |
|
|
26 |
260-1263
|
Isolator bolt |
4 |
|
|
27 |
260-1264
|
Eccentric bearing cup bolt |
8 |
|
|
28 |
260-1001
|
20 inch grip face |
1 |
|
|
N/S |
260-1003
|
Power cord assembly |
1 |
|
|
N/S |
260-1301
|
Neoprene rubber strip 1/4 x 1 x 12 inch |
1 |
|
|
N/S |
260-1258
|
20 inch eccentric assembly |
1 |
|
|
N/S |
260-1043
|
20 inch dust skirt |
1 |
|
|
Kit1 |
260-1310
|
20 inch isolator repair kit |
1 |
(includes 11, 21-24, 26-28) |
|
Kit2 |
260-1307
|
Weight bolt kit |
1 |
(includes 11, 14, 21, 23-24, 26-28) |
|
Kit3 |
260-1312
|
20 inch base plate assembly |
1 |
(includes 11, 18-28) |
|
Kit4 |
260-1245
|
1/2 inch tall isolator (pkg of 10) |
1 |
(includes 8 and 9) |
|
