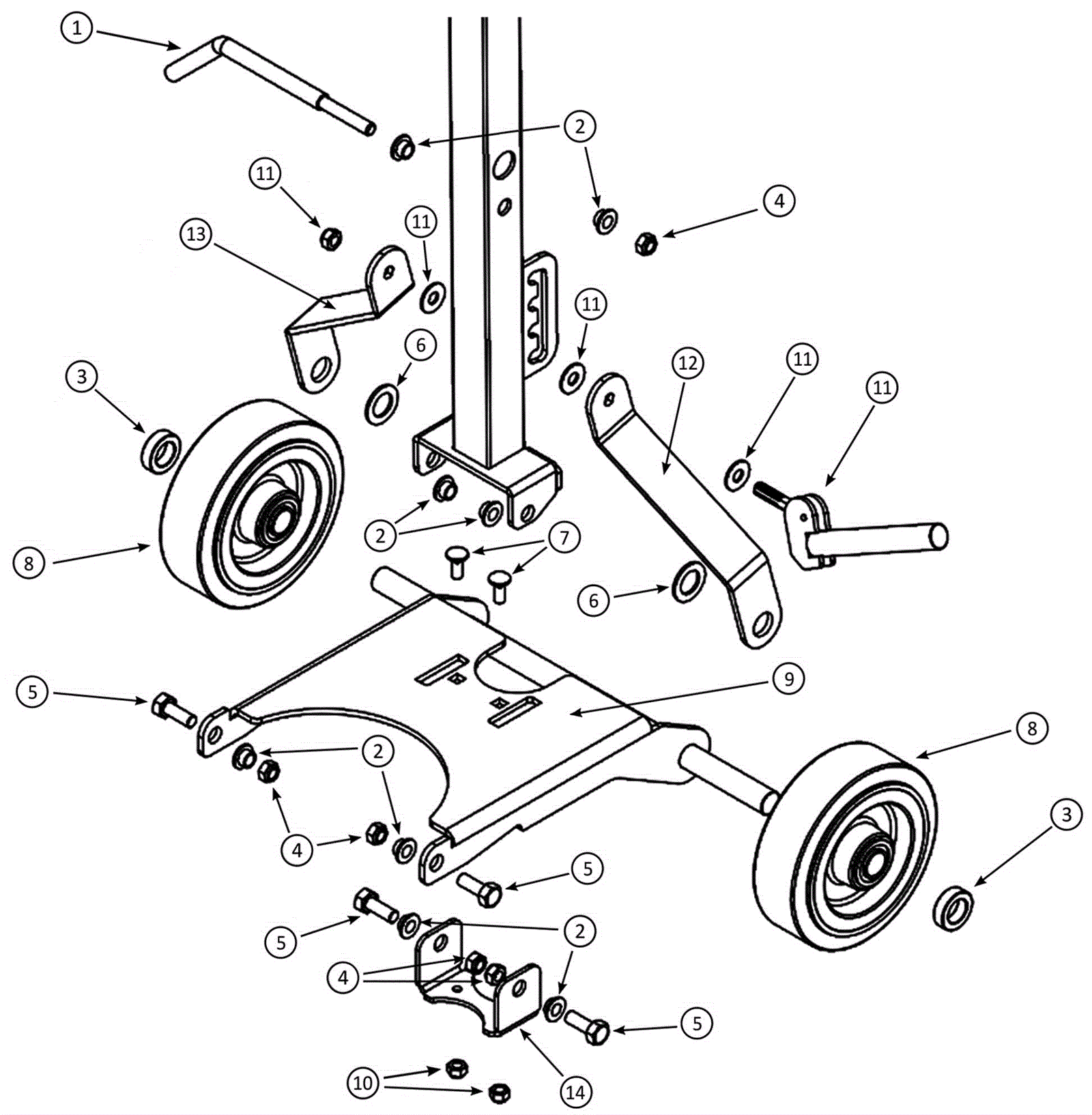

| # | Part | Description |
Req | Notes | Availability |
|---|
01 |
260-1227
|
Cord wrap |
1 |
|
|
02 |
260-1228
|
Plastic flange bushing (pack of 2) |
8 |
|
|
03 |
260-1005
|
Axle collar |
2 |
|
|
04 |
260-1229
|
3/8 inch lock nut |
5 |
|
|
05 |
260-1230
|
3/8 inch pivot point bolts (pack of 2) |
4 |
|
|
06 |
260-1008
|
Wave washer |
2 |
|
|
07 |
260-1231
|
Handle yoke bolt |
7 |
|
|
08 |
260-1000
|
6 inch wheel |
2 |
|
|
09 |
260-1232
|
1 piece axle attachment bracket |
1 |
|
|
10 |
260-1233
|
Handle yoke nut |
2 |
|
|
11 |
260-1206
|
3/8 inch tension handle assembly |
1 |
|
|
12 |
260-1234
|
Left hand handle adjustment bar |
1 |
|
|
13 |
260-1235
|
Right hand handle adjustment bar |
1 |
|
|
14 |
260-1236
|
Handle yoke |
1 |
|
|
