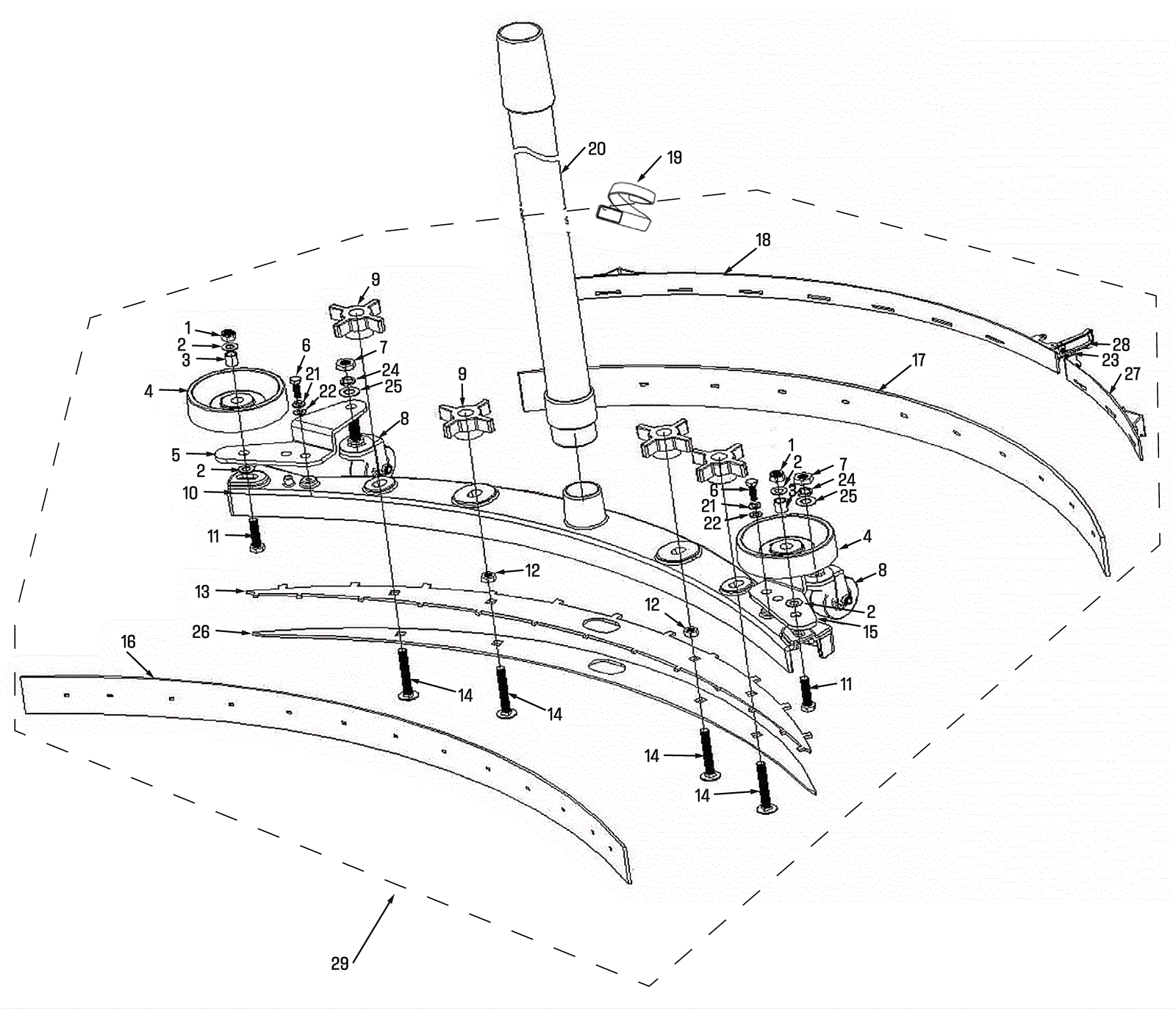

RX20 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1651 Nut M8-1 hex stainless steel $2.83 ships same day
2 N/A Not available Call for price (washer D8D16) usually ships 3-26 days
3 N/A Not available Call for price (sleeve D12D9-13) usually ships 3-26 days
4 252-9187 Bumper wheel $24.07 usually ships 3-12 days
5 252-9208 Left hand fixed squeegee lifting plate $18.18 usually ships 3-12 days
6 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 ships same day
7 999-6697 Nut M10-1.5 hex stainless steel $1.01 ships same day
8 252-9209 Squeegee swivel caster $55.30 usually ships 3-12 days
9 252-9210 Star wing nut knob Call for price usually ships 3-12 days
10 252-9211 Squeegee main body $666.64 usually ships 3-12 days
11 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 ships same day
12 999-1651 Nut M8-1 hex stainless steel $2.83 ships same day
13 252-9326 Blade fixing plate $80.64 usually ships 3-12 days
14 252-9327 Screw M8 x 60 carriage $6.25 usually ships 3-12 days
16 252-9151 32 inch squeegee blade front $51.52 usually ships 3-12 days
17 252-9152 32 inch squeegee blade rear $52.62 usually ships 3-12 days
18 252-9214 Squeegee tightening clamp assembly $74.77 usually ships 3-12 days
19 252-9216 Recovery tank vacuum hose $62.82 usually ships 3-12 days
20 252-9328 Sewage water hose $56.76 usually ships 3-12 days
21 N/A Not available Call for price (spring washer D6) usually ships 3-26 days
22 N/A Not available Call for price (washer D6D12) usually ships 3-26 days
23 999-0740 Nut M5-.8 hex stainless steel $0.99 ships same day
24 N/A Not available Call for price (spring washer D10) usually ships 3-26 days
25 N/A Not available Call for price (washer D10D20) usually ships 3-26 days
26 252-9329 Blade fixing plate $80.64 usually ships 3-12 days
27 252-9330 Left hand rear blade fixing part Call for price usually ships 3-12 days
28 N/A Not available Call for price (screw M5 x 50) usually ships 3-26 days
29 252-9212 Squeegee assembly $557.16 (includes 1-18, 21-28) usually ships 3-12 days
N/S N/A Not available Call for price (squeegee bracket) usually ships 3-26 days
