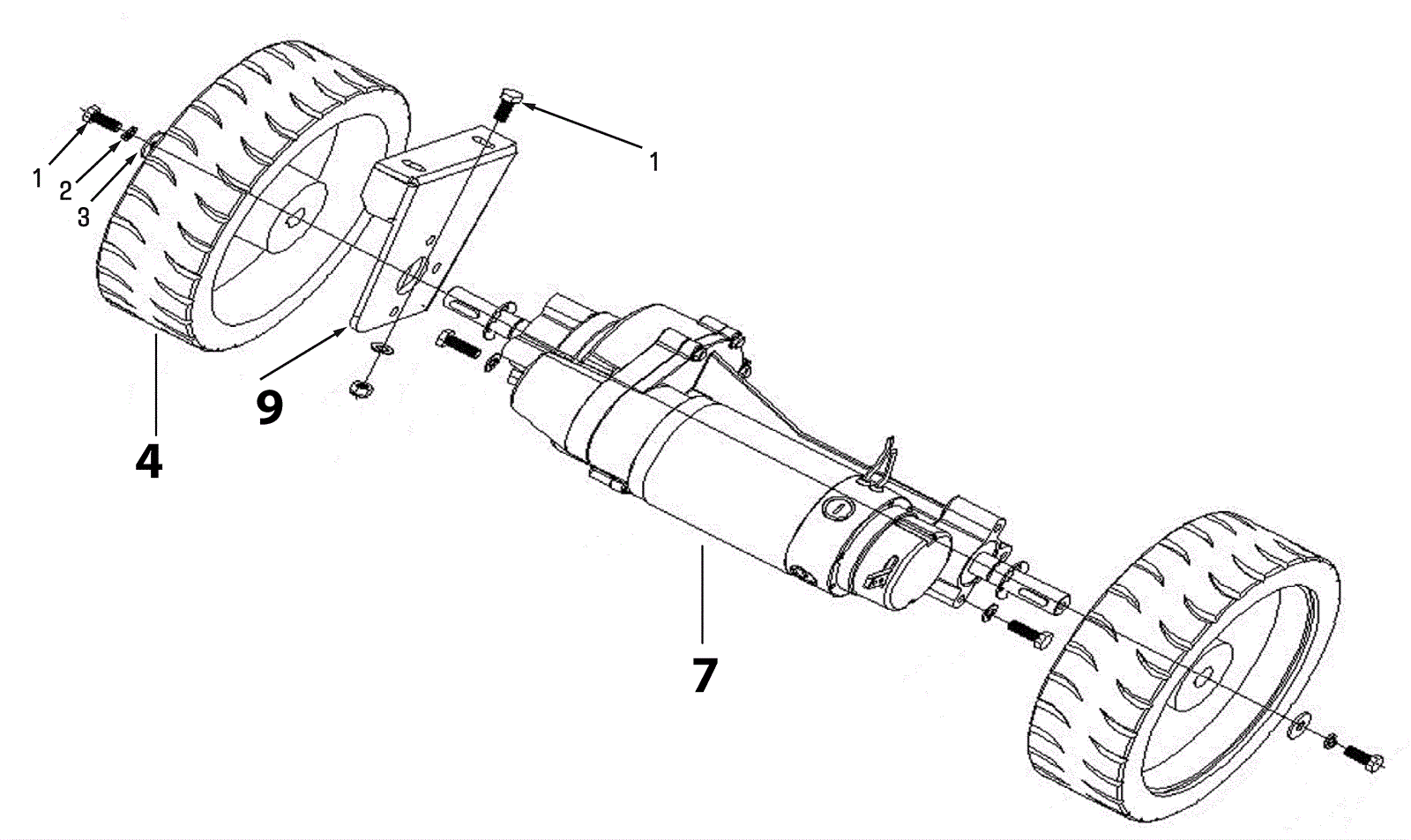

RX20 Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
2 N/A Not available Call for price 2 (spring washer D8) usually ships 3-26 days
3 N/A Not available Call for price 2 (washer D8D24) usually ships 3-26 days
4 252-9308 10 inch rear wheel $479.27 2 usually ships 3-12 days
7 252-9309 24V drive motor $1,298.02 2 usually ships 3-12 days
9 252-9310 Drive motor fixing plate $56.76 1 usually ships 3-12 days
N/S 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 2 ships same day
N/S N/A Not available Call for price 4 (washer D8D16) usually ships 3-26 days
N/S 999-1651 Nut M8-1 hex stainless steel $2.83 2 ships same day
N/S 252-9311 Electric brake Call for price 1 usually ships 3-12 days
