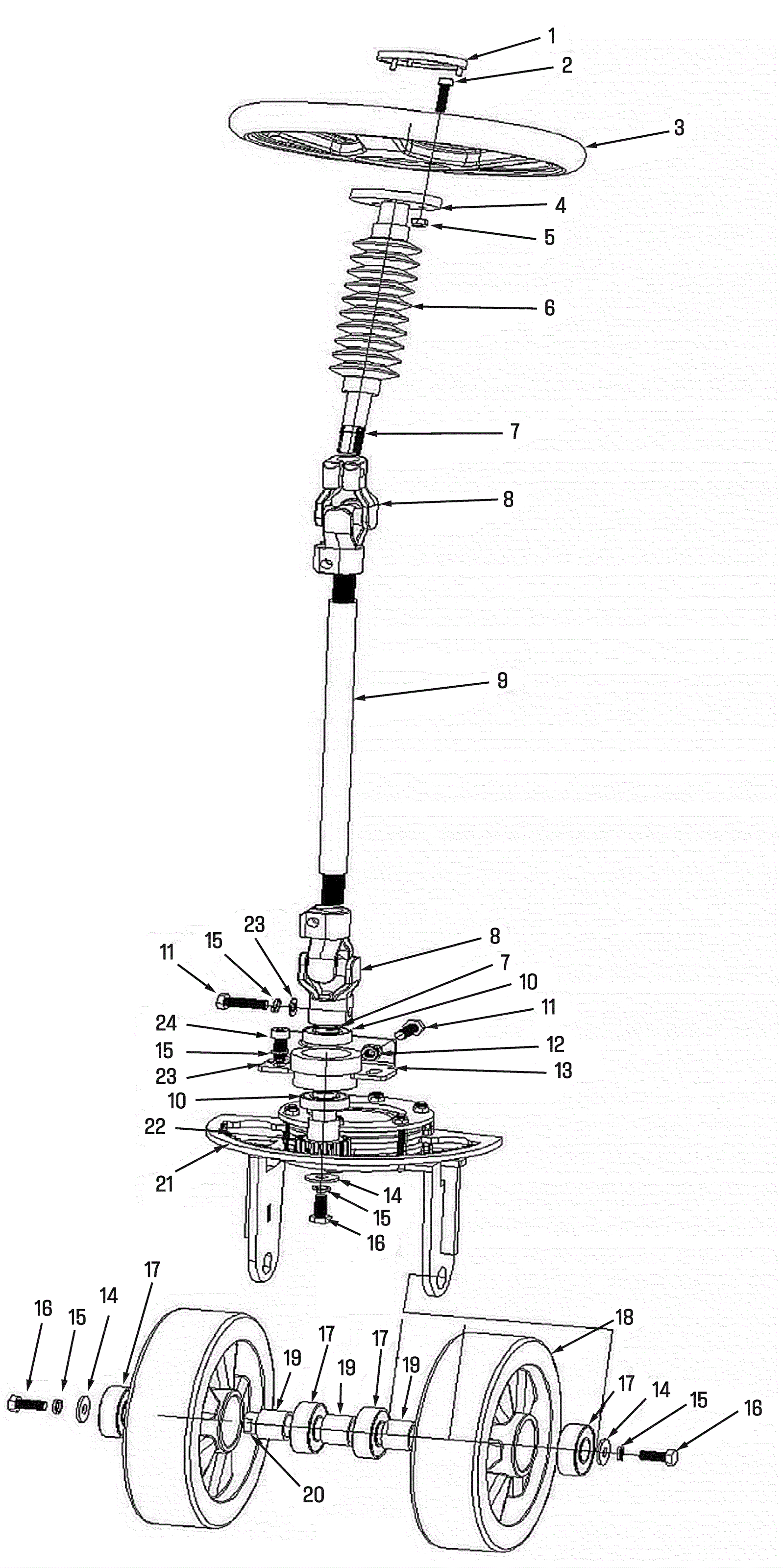

RX20 Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9287 Steering wheel cover $12.31 1 usually ships 3-12 days
2 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 3 ships same day
3 252-9288 Steering wheel $140.35 2 usually ships 3-12 days
4 252-9289 Steering wheel main shaft $59.88 1 usually ships 3-12 days
5 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
6 252-9290 Protecting cover $21.13 1 usually ships 3-12 days
7 N/A Not available Call for price 2 (spring D14) usually ships 3-26 days
8 252-9291 Universal joint $80.64 2 usually ships 3-12 days
9 252-9292 Steering wheel vertical axis $80.64 1 usually ships 3-12 days
10 252-9268 Bearing $13.96 2 usually ships 3-12 days
11 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 4 ships same day
12 999-1651 Nut M8-1 hex stainless steel $2.83 2 ships same day
13 252-9293 Gear bracket with bearing $50.89 1 usually ships 3-12 days
14 N/A Not available Call for price 3 (washer D8D24) usually ships 3-26 days
15 N/A Not available Call for price 5 (spring washer D8) usually ships 3-26 days
16 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 3 ships same day
17 252-9294 Bearing $36.00 4 usually ships 3-12 days
18 252-9178 8 inch main wheel $139.25 2 usually ships 3-12 days
19 252-9295 Shaft sleeve $21.13 3 usually ships 3-12 days
20 252-9296 Front wheel main axle $42.06 1 usually ships 3-12 days
21 252-9297 Gear plate group $277.02 1 usually ships 3-12 days
22 252-9298 Gear group $205.56 1 usually ships 3-12 days
23 N/A Not available Call for price 2 (washer D8D16) usually ships 3-26 days
24 999-1648 Screw M8-1.25 x 20mm socket head stainless steel $2.07 2 usually ships 11-24 days
