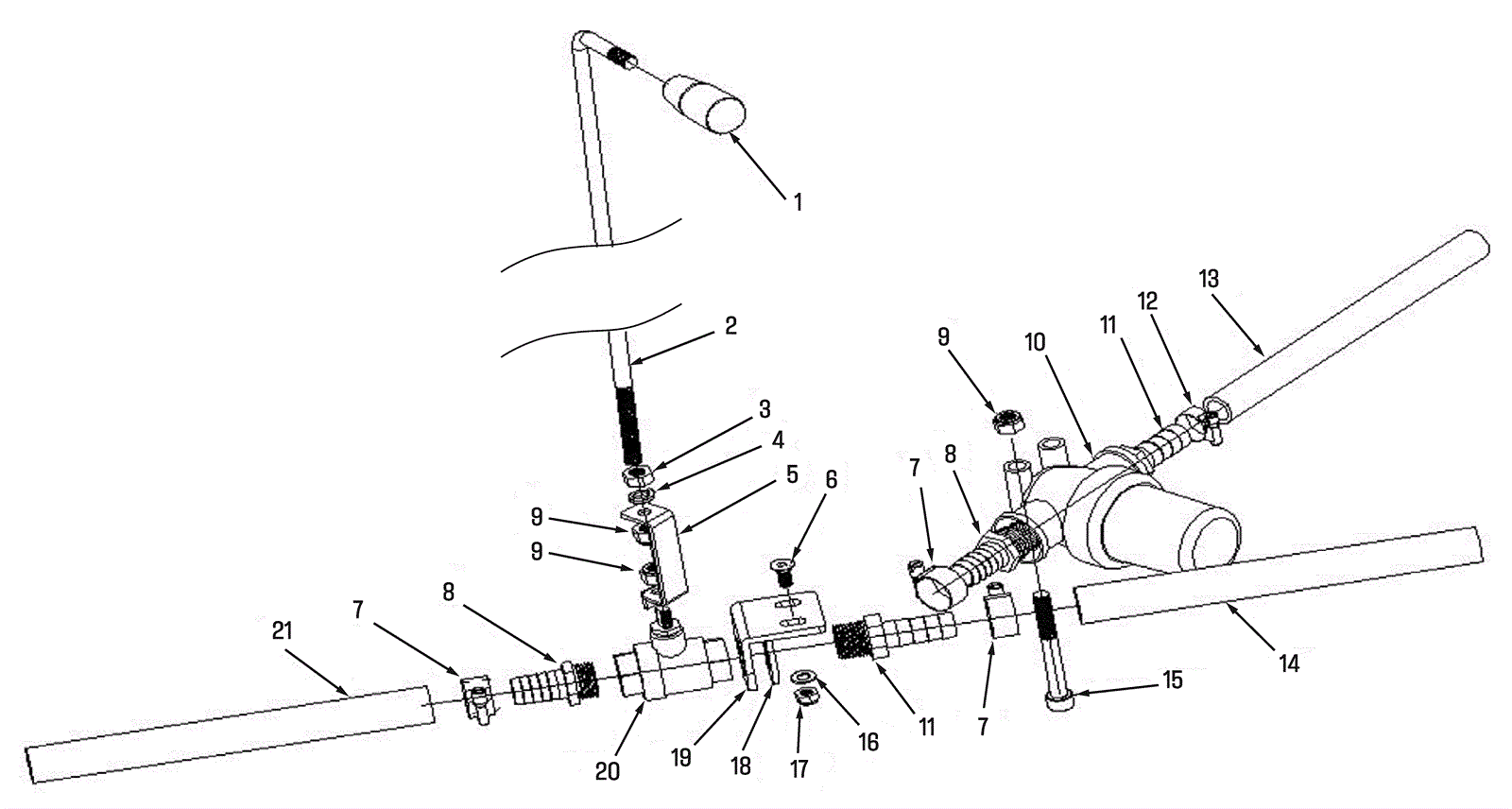

RX20 Drain Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9278 Water control handle $9.19 1 usually ships 3-12 days
2 252-9279 Drainage rod $36.00 1 usually ships 3-12 days
3 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
4 N/A Not available Call for price 1 (spring washer D8) usually ships 3-26 days
5 252-9280 Bracket $27.19 1 usually ships 3-12 days
6 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 2 ships same day
7 252-9281 Clip D16-D25 $9.19 3 usually ships 3-12 days
8 252-9282 G1/2-D13 pipe joint $15.25 2 usually ships 3-12 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 ships same day
10 252-9283 Inline water filter with 2 gaskets $68.71 1 usually ships 3-12 days
11 252-9282 G1/2-D13 pipe joint $15.25 2 usually ships 3-12 days
12 252-9284 Clip D13-D19 $9.19 1 usually ships 3-12 days
13 252-9200 13mm ID fresh water hose $8.09 1 (12 inches) usually ships 3-12 days
14 252-9200 13mm ID fresh water hose $8.09 1 (8 inches) usually ships 3-12 days
15 999-1379 Screw M8-1.25 x 70mm socket head stainless steel $0.99 1 usually ships 1-5 days
16 N/A Not available Call for price 2 (nut D6 x D12) usually ships 3-26 days
17 N/A Not available Call for price 2 (screw M6) usually ships 3-26 days
18 N/A Not available Call for price 1 (washer D20 x D37) usually ships 3-26 days
19 252-9285 Bracket $30.13 1 usually ships 3-12 days
20 252-9286 G1/2 water valve $45.01 1 usually ships 3-12 days
21 252-9200 13mm ID fresh water hose $8.09 1 (12 inches) usually ships 3-12 days
