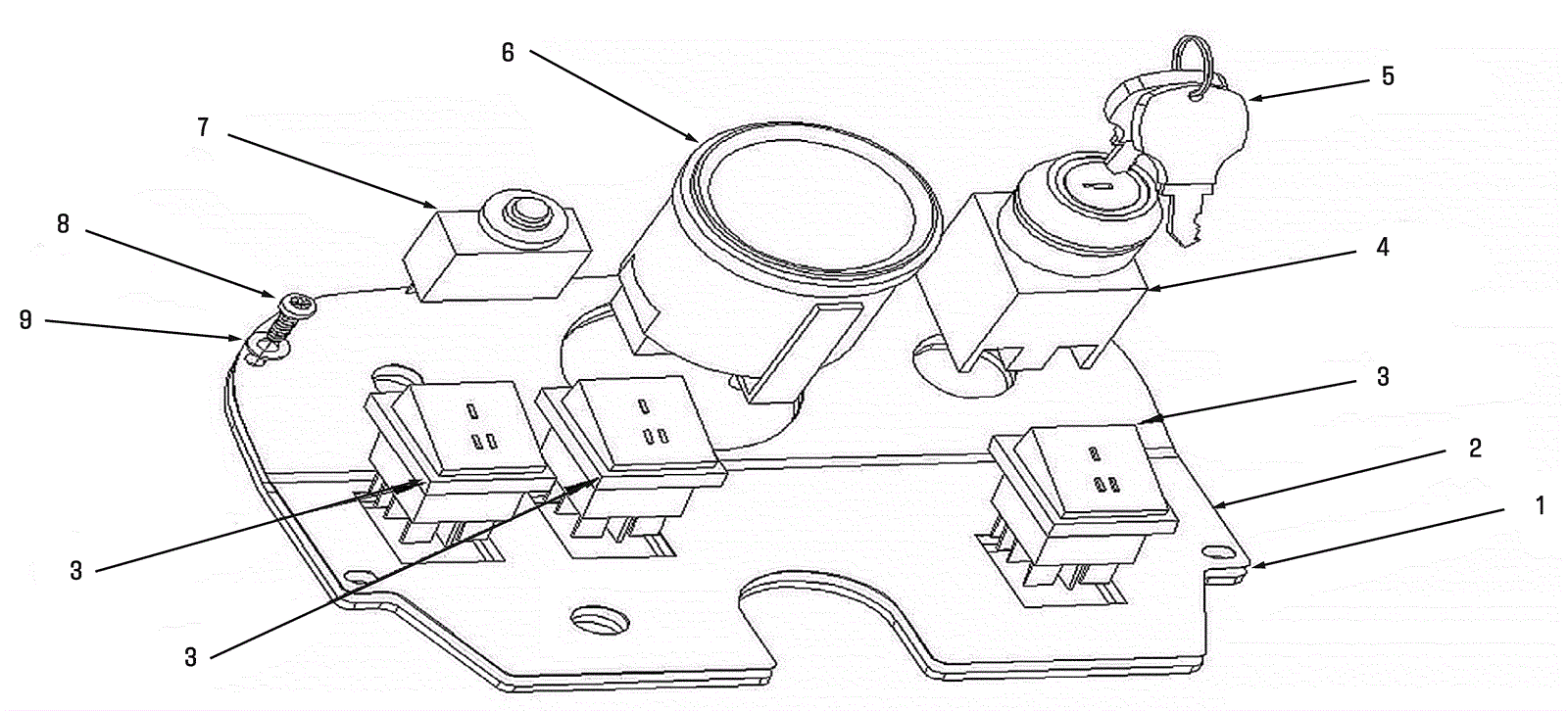

RX20 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9272 Panel $110.41 1 usually ships 10-12 days
2 252-9273 Panel decal $9.19 1 usually ships 10-12 days
3 252-9229 Toggle switch $21.13 3 usually ships 10-12 days
4 252-9098 Key switch with 2 keys $49.41 1 usually ships 10-12 days
5 252-9099 Main on/off switch key $9.19 1 usually ships 10-12 days
6 252-9274 Electricity/hour meter $98.46 1 usually ships 10-12 days
7 252-9156 5 amp circuit breaker $9.19 1 ships same day
8 N/A Not available Call for price 4 (screw M4 x 15) usually ships 3-26 days
9 N/A Not available Call for price 4 (washer D4 x D9) usually ships 3-26 days
