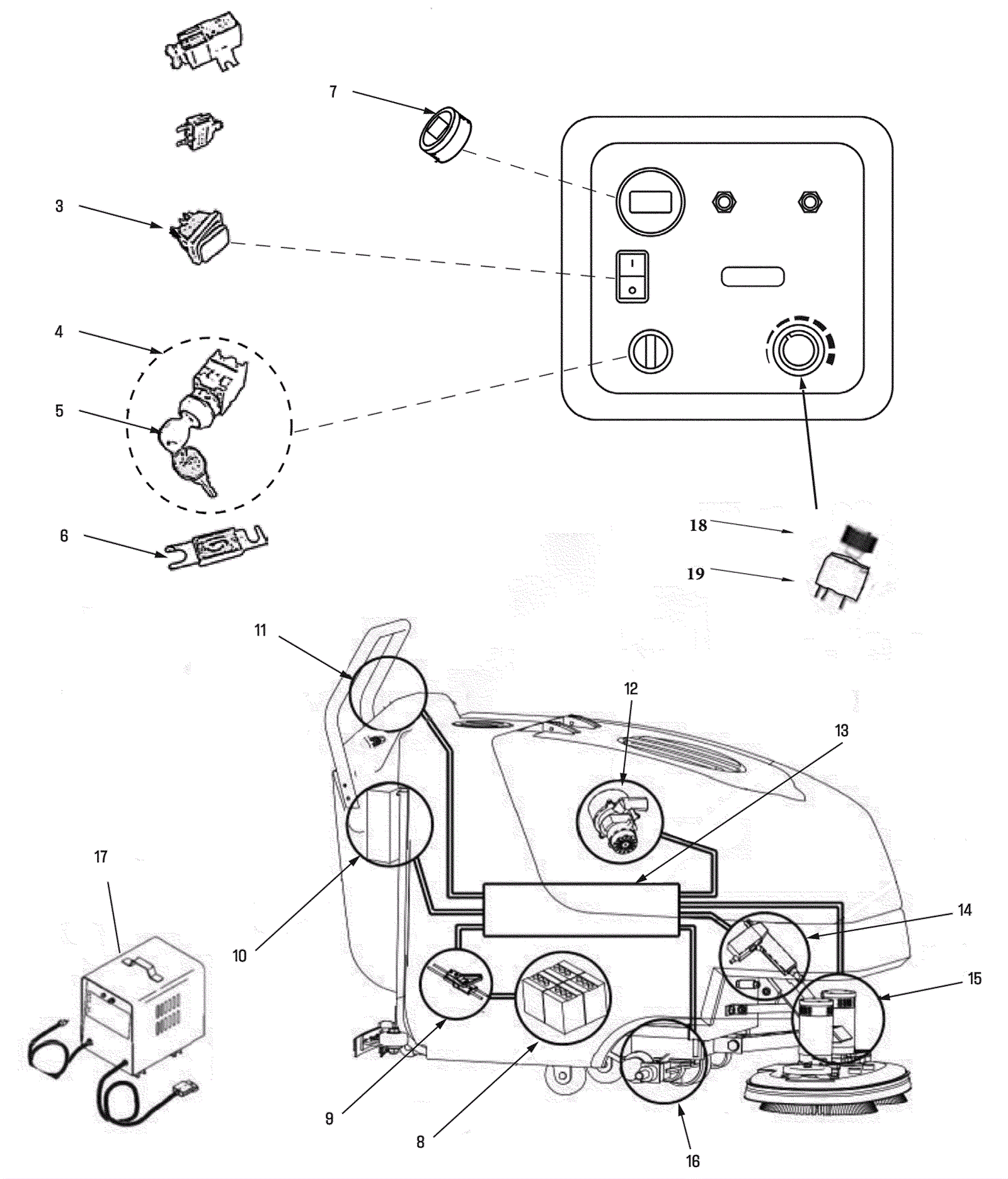

DX32 Electrical Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9223 24V relay/contactor $99.94 1 usually ships 3-12 days
2a 252-9156 5 amp circuit breaker $9.19 1 usually ships 3-12 days
2b 252-9224 10A circuit breaker $9.19 1 usually ships 3-12 days
2c 252-9225 20A circuit breaker $9.19 1 usually ships 3-12 days
2d 252-9226 40A circuit breaker $19.29 1 usually ships 3-12 days
3 252-9229 Toggle switch $21.13 1 usually ships 3-12 days
4 252-9098 Key switch with 2 keys $49.41 1 (includes 5) usually ships 3-12 days
5 252-9099 Main on/off switch key $9.19 1 usually ships 3-12 days
6a 252-9227 80A fuse $19.29 1 usually ships 3-12 days
6b 252-9228 150A fuse $19.29 1 usually ships 3-12 days
7 252-9092 Round hour and battery meter $127.12 1 usually ships 3-12 days
8 252-9597 6V battery $776.27 4 usually ships 3-12 days
9 252-9689 Charger socket housing Call for price 1 usually ships 3-12 days
10 252-9690 Circuit board Call for price 1 usually ships 3-12 days
11 252-9615 Control panel Call for price 1 usually ships 3-12 days
12 252-9682 24V vacuum motor Call for price 1 usually ships 3-12 days
13 252-9691 Wire harness Call for price 1 usually ships 3-12 days
14 252-9628 Head lifiting motor Call for price 1 usually ships 3-12 days
15 252-9179 Brush head motor $621.83 2 usually ships 3-12 days
16 252-9309 24V drive motor $1,298.02 1 usually ships 3-12 days
17 252-9154 24V battery charger $725.71 1 usually ships 3-12 days
18 252-9692 Speed governor dial knob Call for price 1 usually ships 3-12 days
19 252-9693 Speed governor dial switch Call for price 1 usually ships 3-12 days
