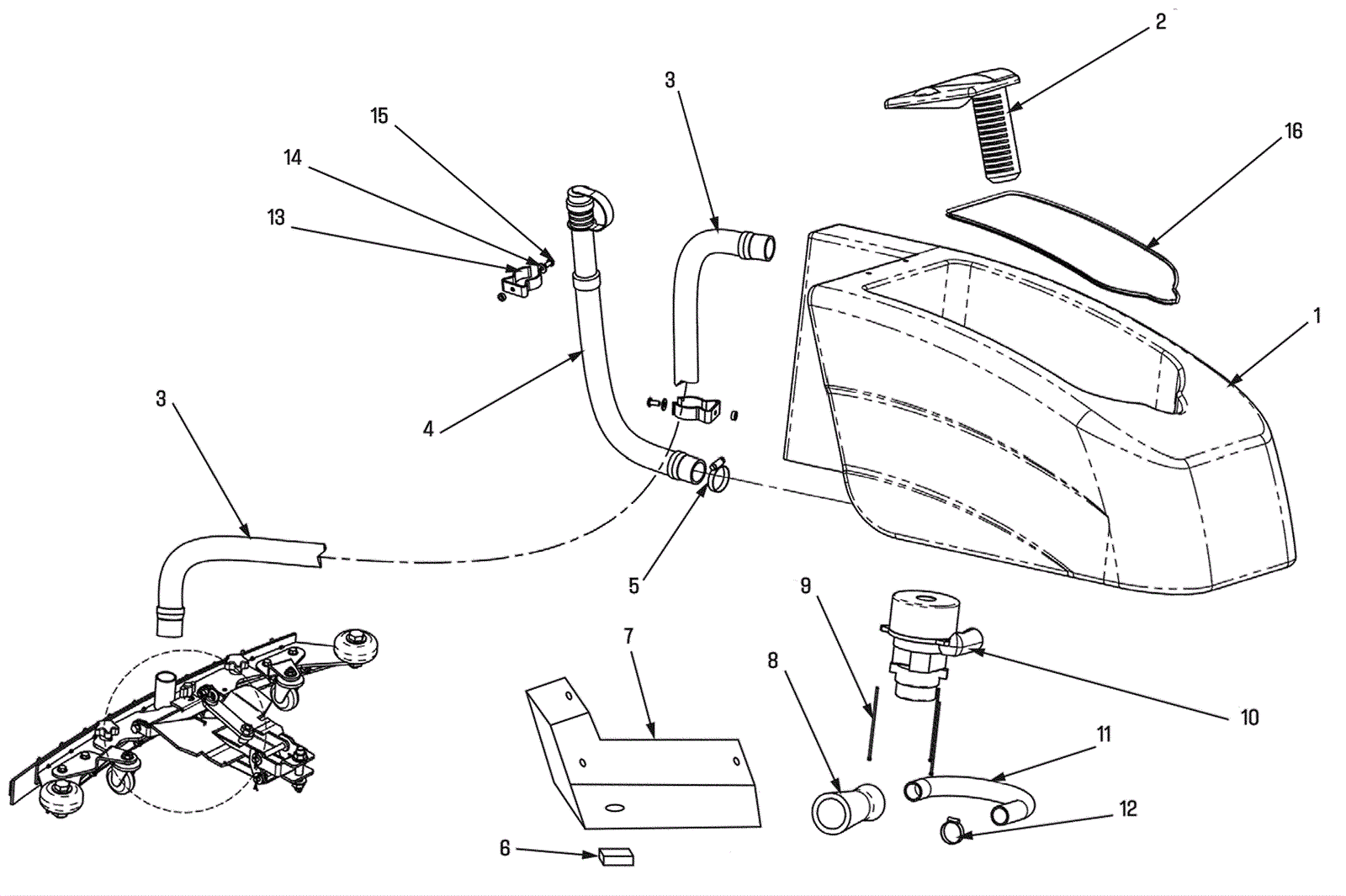

DX26 Vacuum System Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9602 Recovery tank Call for price 1 usually ships 3-12 days
2 252-9677 Ball float shutoff tube Call for price 1 usually ships 3-12 days
3 252-9678 Vacuum hose Call for price 1 usually ships 3-12 days
4 252-9679 Drain hose Call for price 1 usually ships 3-12 days
5 252-9049 Hose clamp $9.19 1 usually ships 3-12 days
6 252-9231 Small charger socket housing (includes 2 metal connectors) $45.01 1 usually ships 6-16 days
7 252-9680 Vacuum dust cover Call for price 1 usually ships 3-12 days
8 252-9061 Noise muffler $9.19 1 usually ships 3-12 days
9 252-9681 M6 screw Call for price 3 usually ships 3-12 days
10 252-9682 24V vacuum motor Call for price 1 usually ships 3-12 days
11 N/A Not available Call for price 1 (Noise muffler pipe) usually ships 3-26 days
12 252-9683 Hose clamp Call for price 1 usually ships 3-12 days
13 252-9239 Pipe hanger clip $12.12 1 usually ships 3-12 days
14 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
15 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
16 252-9240 Recovery tank cover seal $157.98 1 usually ships 3-12 days
