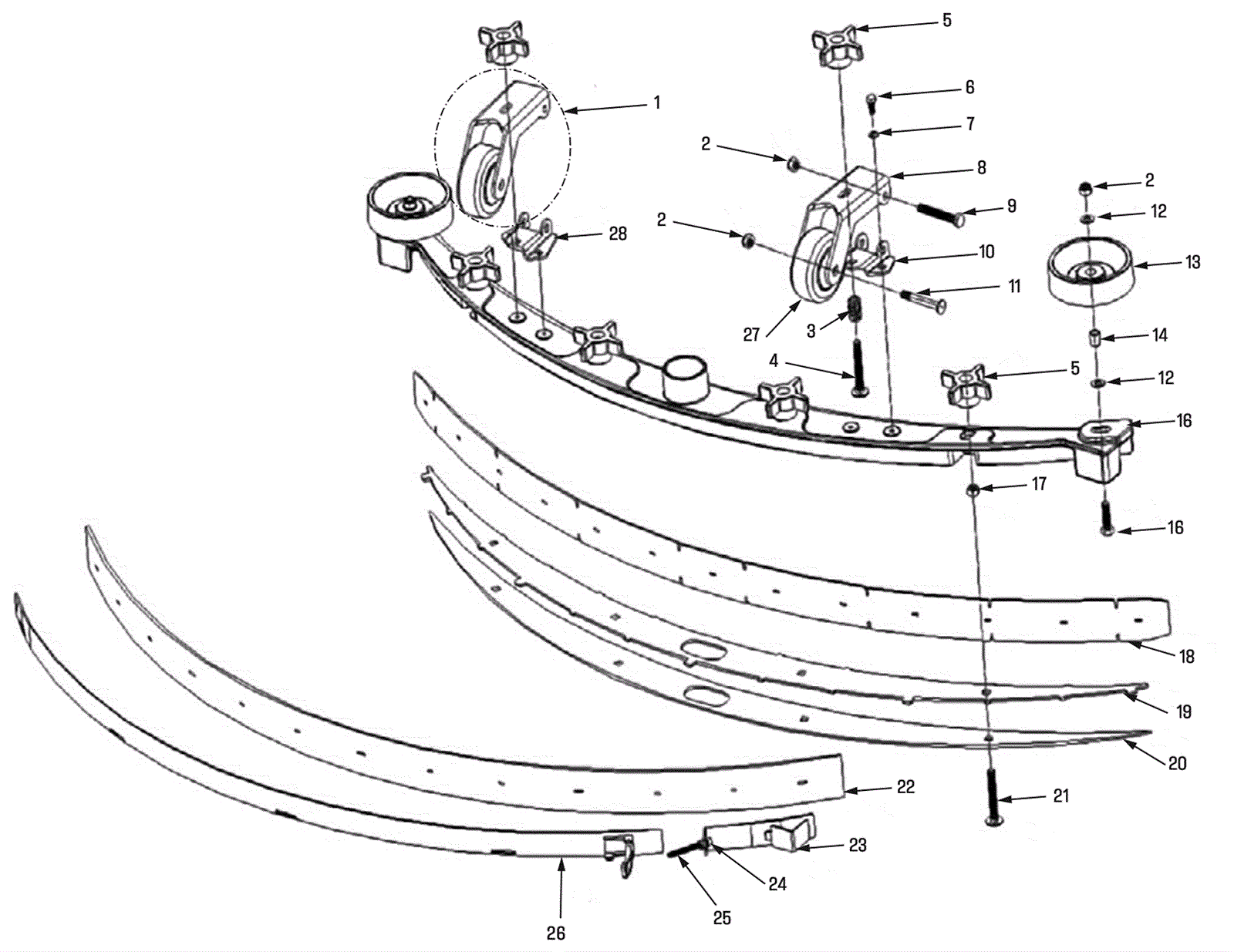

DX32 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9648 Squeegee wheel and bracket Call for price 2 usually ships 3-12 days
2 999-1651 Nut M8-1 hex stainless steel $2.83 4 ships same day
3 252-9649 Spring Call for price 2 usually ships 3-12 days
4 N/A Not available Call for price 2 (Screw M8 x 60) usually ships 3-26 days
5 252-9650 Tightening knob w/ M8 nut Call for price 6 usually ships 3-12 days
6 N/A Not available Call for price 2 (Screw M8 x 15) usually ships 3-26 days
7 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
8 252-9651 Squeegee bracket wheel Call for price 2 usually ships 3-12 days
9 N/A Not available Call for price 2 (Screw M8 x 60) usually ships 3-26 days
10 252-9652 Right hand squeegee wheel bracket mount Call for price 1 usually ships 3-12 days
11 N/A Not available Call for price 2 (Screw M8 x 60) usually ships 3-26 days
12 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
13 252-9187 Bumper wheel $24.07 2 usually ships 3-12 days
14 252-9653 Sleeve Call for price 2 usually ships 3-12 days
15 252-9654 Squeegee body Call for price 1 usually ships 3-12 days
16 N/A Not available Call for price 2 (Screw M8 x 30) usually ships 3-26 days
17 999-1651 Nut M8-1 hex stainless steel $2.83 6 ships same day
18 252-9655 46 inch squeegee blade front Call for price 1 usually ships 3-12 days
19 252-9656 Upper squeegee mount Call for price 1 usually ships 3-12 days
20 252-9657 Lower squeegee mount Call for price 1 usually ships 3-12 days
21 N/A Not available Call for price 6 (Screw M8 x 60) usually ships 3-26 days
22 252-9658 46 inch squeegee blade rear Call for price 1 usually ships 3-12 days
23 252-9659 Right hand squeegee clamp Call for price 1 usually ships 3-12 days
24 N/A Not available Call for price 1 (Screw M5 x 50) usually ships 3-26 days
25 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
26 252-9660 Left hand squeegee clamp Call for price 1 usually ships 3-12 days
27 252-9661 Squeegee wheel Call for price 2 usually ships 3-12 days
28 252-9662 Left hand squeegee wheel bracket mount Call for price 1 usually ships 3-12 days
