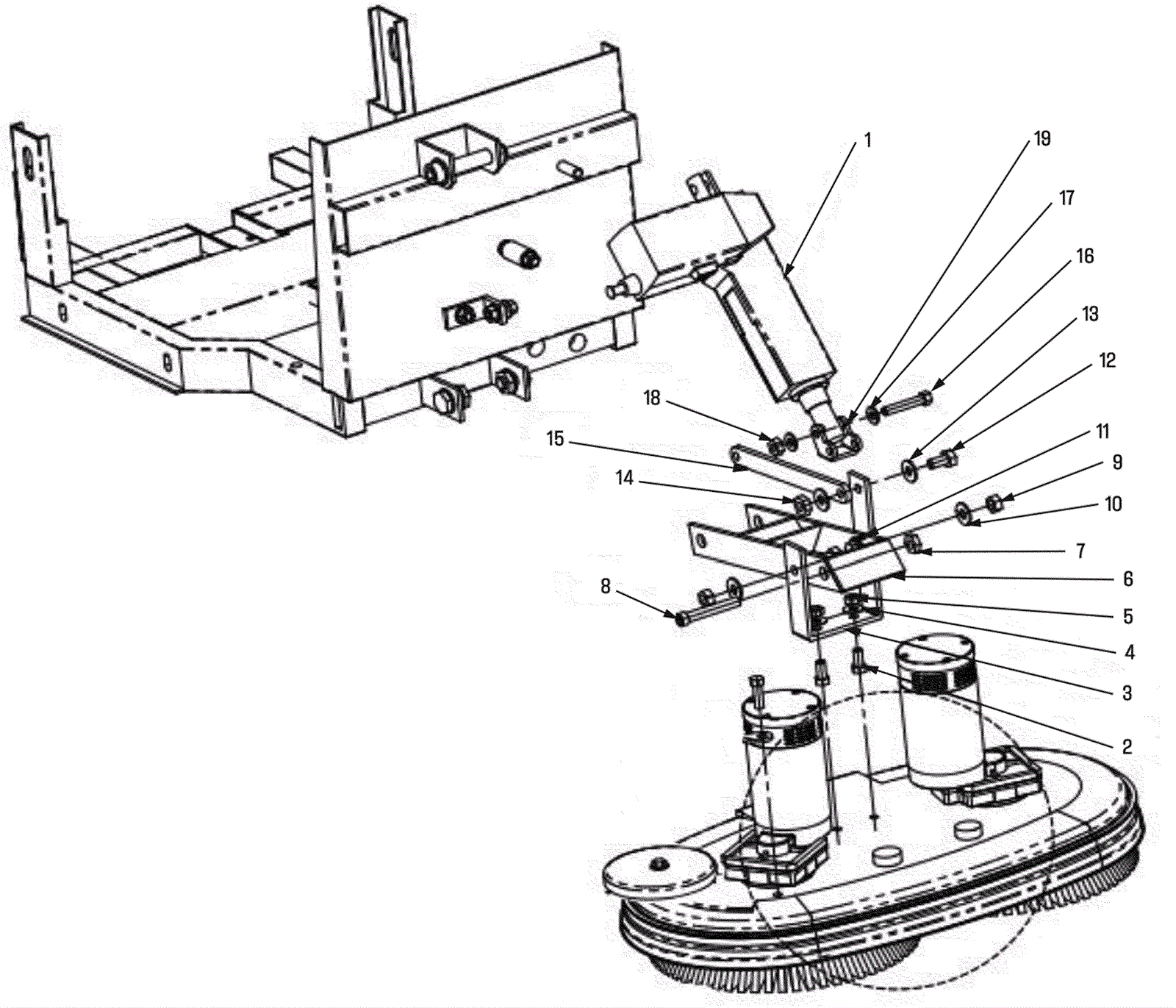

DX32 Head Lifiting Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1 252-9628 Head lifiting motor Call for price 1 usually ships 3-12 days
2 N/A Not available Call for price 2 (Bolt M10 x 40 hex) usually ships 3-26 days
3 N/A Not available Call for price 1 (U bracket) usually ships 3-26 days
4 252-9625 Bracket Call for price 1 usually ships 3-12 days
5 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 2 usually ships 1-5 days
6 N/A Not available Call for price 1 (Bracket) usually ships 3-26 days
7 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
8 N/A Not available Call for price 1 (Screw M8 x 70) usually ships 3-26 days
9 252-9626 Sleeve Call for price 2 usually ships 3-12 days
10 252-9627 Spacer nylon Call for price 2 usually ships 3-12 days
11 999-1651 Nut M8-1 hex stainless steel $2.83 2 ships same day
12 N/A Not available Call for price 1 (M8 screw) usually ships 3-26 days
13 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
14 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
15 N/A Not available Call for price 1 (Adjustment lever) usually ships 3-26 days
16 N/A Not available Call for price 1 (Screw M8 x 45) usually ships 3-26 days
17 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
18 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
19 N/A Not available Call for price 1 (Bracket) usually ships 3-26 days
