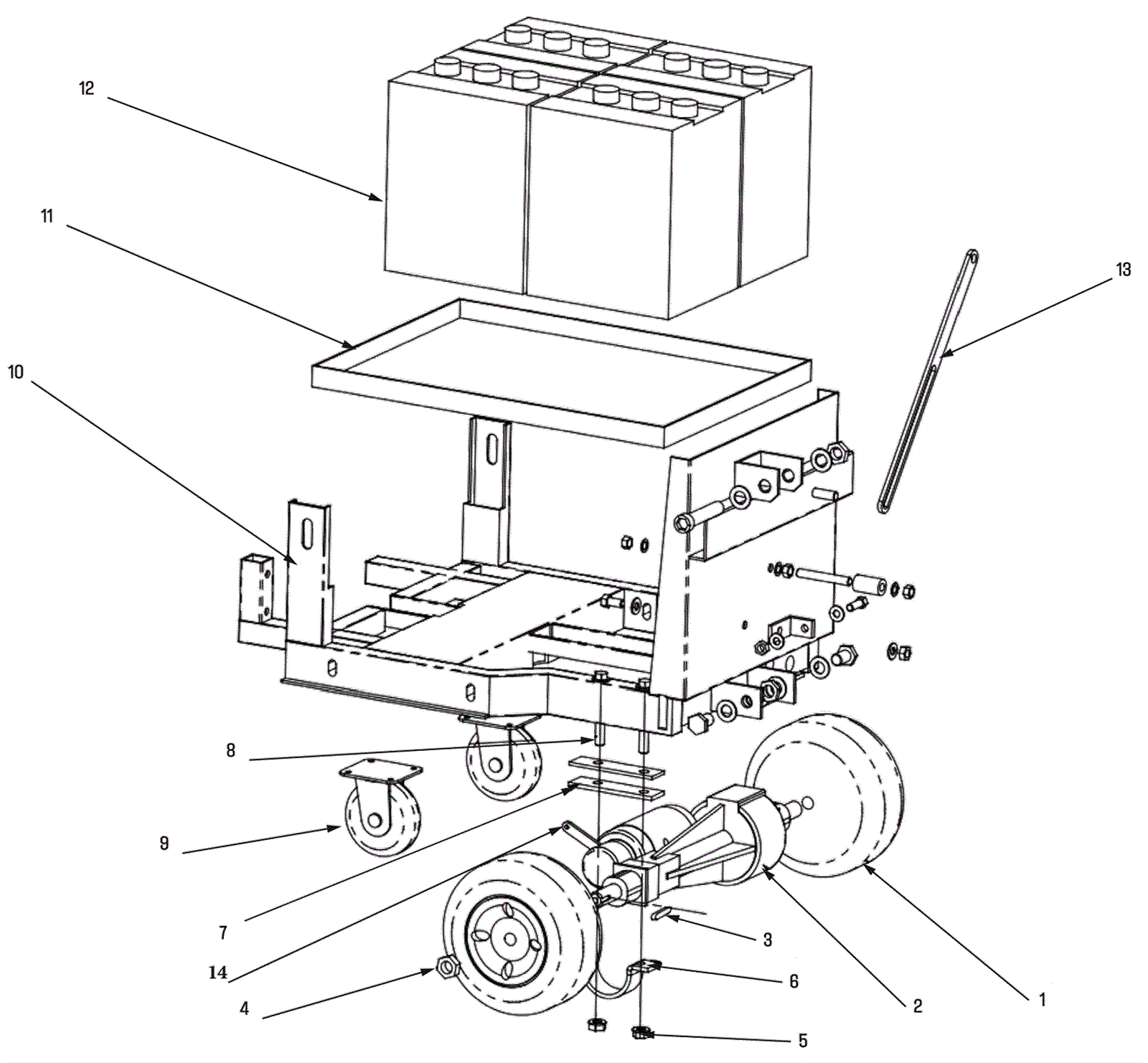

DX32 Frame, Wheel, and Batteries Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9308 10 inch rear wheel $479.27 2 usually ships 3-12 days
2 252-9309 24V drive motor $1,298.02 1 usually ships 3-12 days
3 252-9617 Motor pin Call for price 1 usually ships 3-12 days
4 252-9618 M12 nut Call for price 2 usually ships 3-12 days
5 999-1651 Nut M8-1 hex stainless steel $2.83 2 ships same day
6 252-9619 U bracket Call for price 1 usually ships 3-12 days
7 252-9620 Balance block Call for price 1 usually ships 3-12 days
8 N/A Not available Call for price 2 (M8 screw) usually ships 3-26 days
9 252-9621 Swivel caster Call for price 2 usually ships 3-12 days
10 252-9622 Frame weldment Call for price 1 usually ships 3-12 days
11 252-9623 Battery tray Call for price 1 usually ships 3-12 days
12 252-9597 6V battery $776.27 4 usually ships 3-12 days
13 252-9604 Support rod Call for price 1 usually ships 3-12 days
14 252-9311 Electric brake Call for price 1 usually ships 3-12 days
