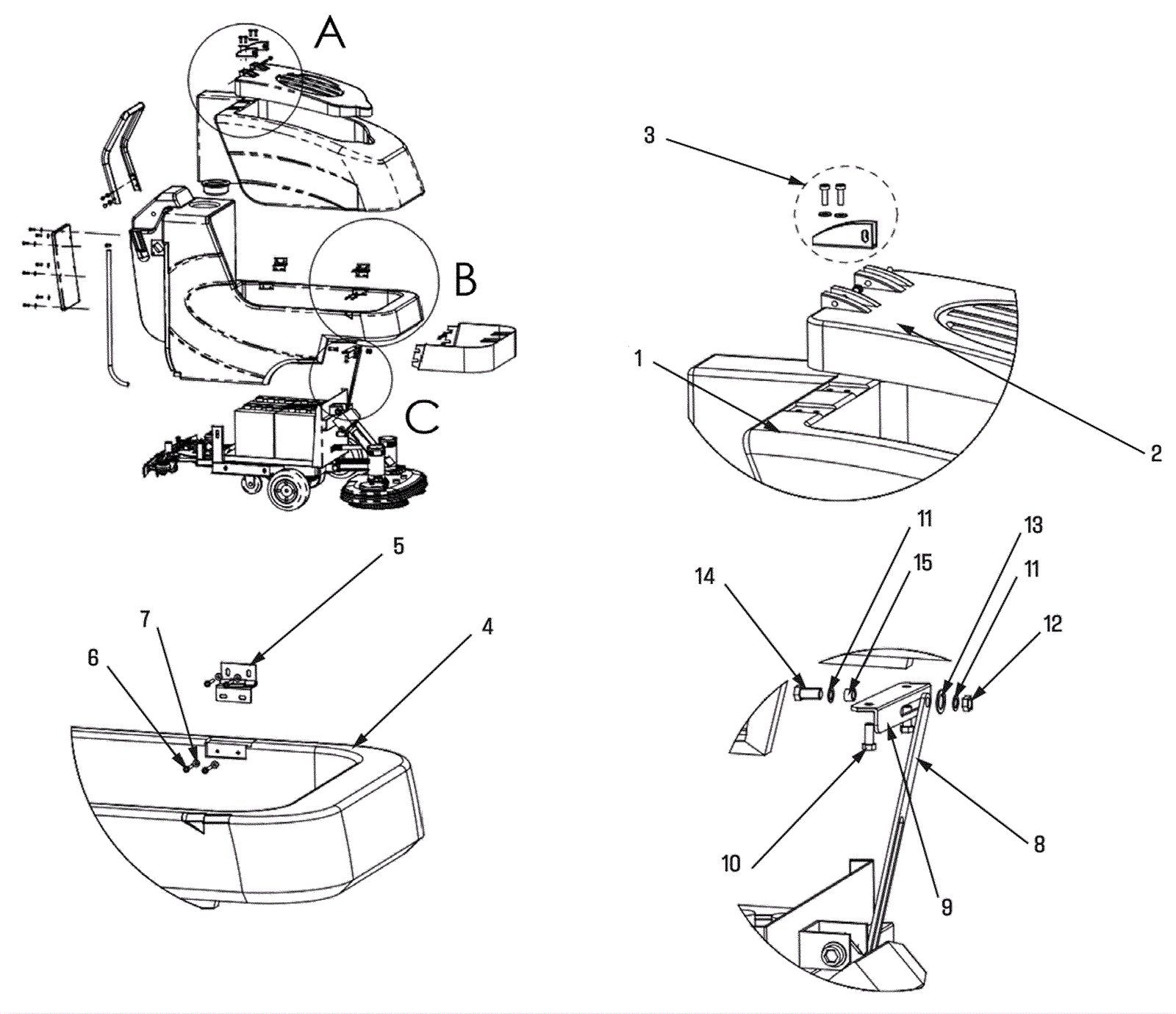

DX32 Recovery Tank - Hinges Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9599 Recovery water tank Call for price 1 usually ships 3-12 days
2 252-9600 Recovery tank cover Call for price 1 usually ships 3-12 days
3 252-9601 Pivot bracket assembly w/ hardware Call for price 1 usually ships 3-12 days
4 252-9602 Recovery tank Call for price 1 usually ships 3-12 days
5 252-9603 Hinge Call for price 1 usually ships 3-12 days
6 N/A Not available Call for price 2 (Bolt M8 x 15MM socket head) usually ships 3-26 days
7 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
8 252-9604 Support rod Call for price 1 usually ships 3-12 days
9 252-9605 Bracket Call for price 1 usually ships 3-12 days
10 N/A Not available Call for price 2 (Bolt M8 x 15MM socket head) usually ships 3-26 days
11 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
12 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
13 252-9606 Bushing nylon Call for price 1 usually ships 3-12 days
14 N/A Not available Call for price 1 (Bolt M8 x 15MM socket head) usually ships 3-26 days
15 252-9607 Spacer M8 steel Call for price 1 usually ships 3-12 days
