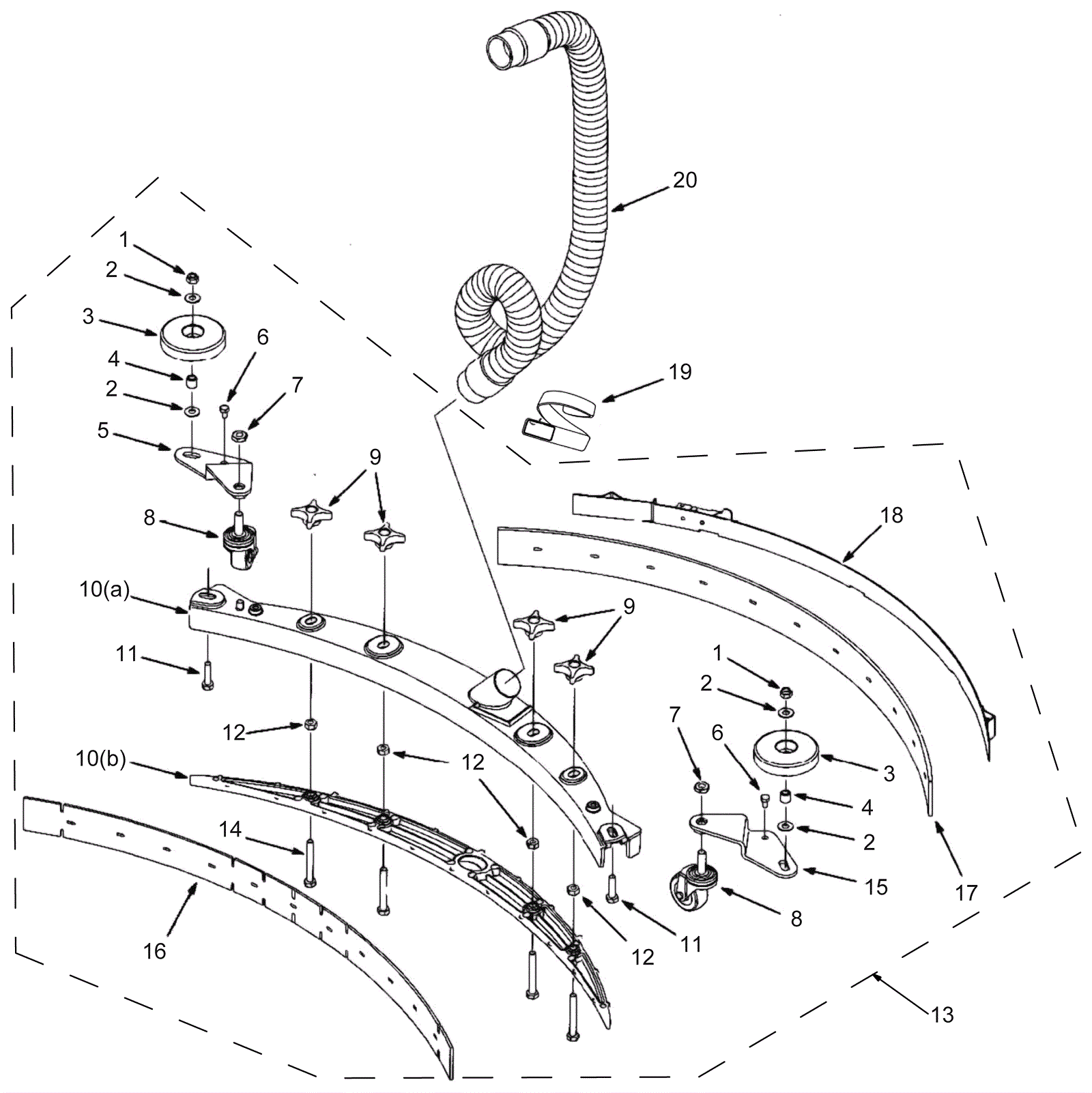

DX20 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
2 N/A Not available Call for price 4 (flat washer 8mm x 25mm x 3mm) usually ships 3-26 days
3 252-9187 Bumper wheel $24.07 2 usually ships 3-12 days
4 252-9188 Sleeve $9.19 2 usually ships 3-12 days
5 252-9208 Left hand fixed squeegee lifting plate $18.18 1 usually ships 3-12 days
6 N/A Not available Call for price 2 (screw M6 x 16 hex with washer) usually ships 3-26 days
7 999-6697 Nut M10-1.5 hex stainless steel $1.01 2 ships same day
8 252-9209 Squeegee swivel caster $55.30 2 usually ships 3-12 days
9 252-9210 Star wing nut knob Call for price 4 usually ships 3-12 days
10 252-9211 Squeegee main body $666.64 1 (2 pieces) usually ships 3-12 days
11 999-0875 Screw 3/8-16 x 3 socket head plain finish $0.99 2 ships same day
12 999-1651 Nut M8-1 hex stainless steel $2.83 4 ships same day
13 252-9212 Squeegee assembly $557.16 1 (includes 1-12, 14-18) usually ships 3-12 days
14 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 4 ships same day
15 252-9213 Right hand fixed squeegee metal plate $16.35 1 usually ships 3-12 days
16 252-9151 32 inch squeegee blade front $51.52 1 usually ships 3-12 days
17 252-9152 32 inch squeegee blade rear $52.62 1 usually ships 3-12 days
18 252-9214 Squeegee tightening clamp assembly $74.77 1 usually ships 3-12 days
19 252-9215 Velcro cinch strap $6.44 1 usually ships 3-12 days
20 252-9216 Recovery tank vacuum hose $62.82 1 usually ships 3-12 days
