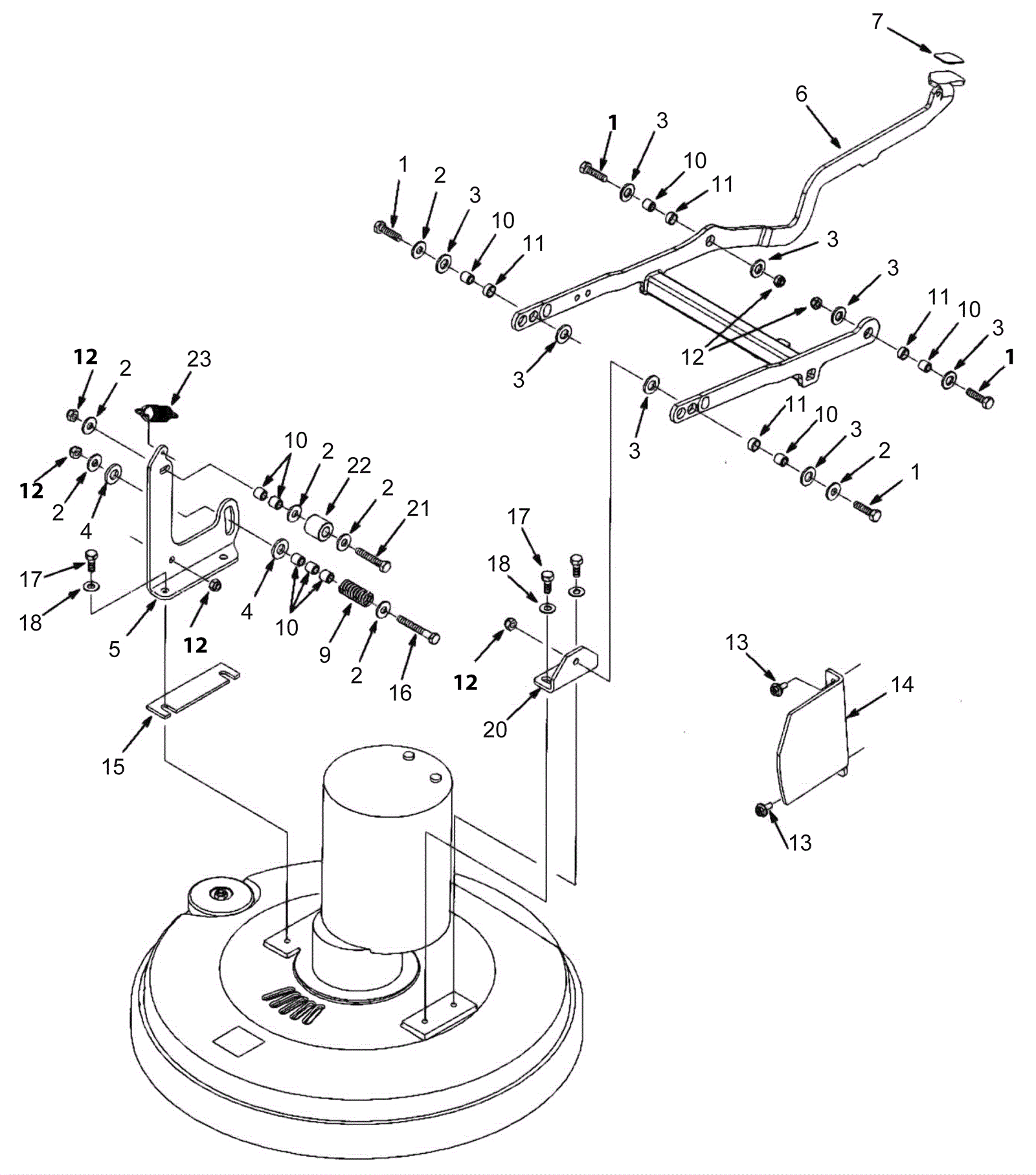

DX20 Brush Head Lifting Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1653 Screw M8-1.25 x 30mm hex head stainless steel $4.36 4 ships same day
2 N/A Not available Call for price 6 (flat washer 8mm x 22mm x 2mm) usually ships 3-26 days
3 252-9073 Nylon washer $6.25 8 usually ships 3-12 days
5 252-9189 Head lift bracket $134.29 1 usually ships 3-12 days
6 252-9190 Head lift lever $86.53 1 usually ships 3-12 days
7 252-9191 Foot pad $9.19 1 usually ships 3-12 days
9 252-9192 Spring Call for price 1 usually ships 3-12 days
10 252-9172 Sleeve $9.19 9 usually ships 3-12 days
11 252-9194 Sleeve $9.19 4 usually ships 3-12 days
12 999-1651 Nut M8-1 hex stainless steel $2.83 5 ships same day
13 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 2 ships same day
14 252-9195 Base plate lifting bracket $36.74 1 usually ships 3-12 days
15 252-9196 Double shim $9.19 1 usually ships 3-12 days
16 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 1 ships same day
17 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 3 ships same day
18 N/A Not available Call for price 3 (flat washer 8mm x 25mm x 3mm) usually ships 3-26 days
20 252-9197 Bracket $21.13 1 usually ships 3-12 days
21 999-1426 Screw M8-1.25 x 45mm hex head stainless steel $3.04 1 ships same day
22 252-9198 Roller $9.19 1 usually ships 3-12 days
23 252-9199 Spring $18.18 1 usually ships 3-12 days
