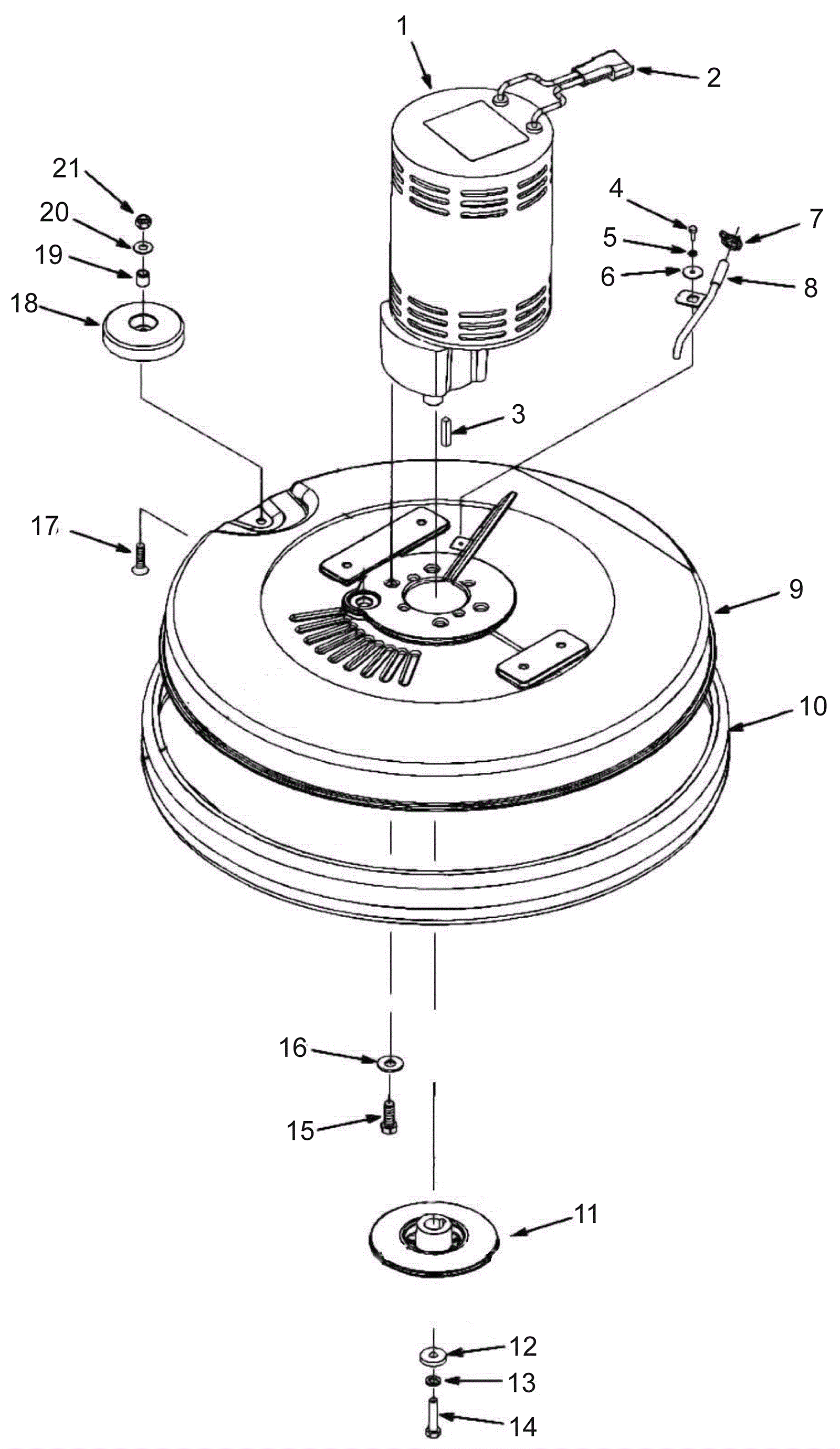

DX20 Brush Head Assembly

#PartDescriptionPriceReqNotesAvailability
1a 252-9179 Brush head motor $621.83 1 (includes 1b) usually ships 3-12 days
1b 252-9180 Carbon brush kit $146.22 1 usually ships 3-12 days
2 252-9181 Connector plug $9.19 1 usually ships 3-12 days
3 252-9182 Machine key $9.19 1 usually ships 3-12 days
5 999-9089 Washer M4 flat stainless steel $0.99 1 ships same day
6 N/A Not available Call for price 1 (flat washer 4mm x 19mm x 1mm) usually ships 3-26 days
7 252-9069 Hose clamp $9.19 1 usually ships 3-12 days
8 252-9183 Water pipe $56.76 1 usually ships 3-12 days
9 252-9184 20 inch brush head cover $443.64 1 usually ships 3-12 days
10 252-9185 20 inch brush head skirt $82.48 1 usually ships 3-12 days
11 252-9186 Triangle pad driver $110.41 1 usually ships 3-12 days
12 N/A Not available Call for price 1 (flat washer 8mm x 25mm x 1mm) usually ships 3-26 days
13 999-0674 Washer M8 split lock plain finish $0.99 1 ships same day
14 N/A Not available Call for price 1 (bolt M8) usually ships 3-26 days
15 999-9230 Screw 5/16-18 x 1 3/8 hex cap $0.99 1 usually ships 11-24 days
16 N/A Not available Call for price 1 (flat washer 8mm x 32mm x 2.5mm) usually ships 3-26 days
17 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
18 252-9187 Bumper wheel $24.07 1 usually ships 3-12 days
19 252-9188 Sleeve $9.19 1 usually ships 3-12 days
20 N/A Not available Call for price 1 (flat washer 8mm x 25mm x 3mm) usually ships 3-26 days
21 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
