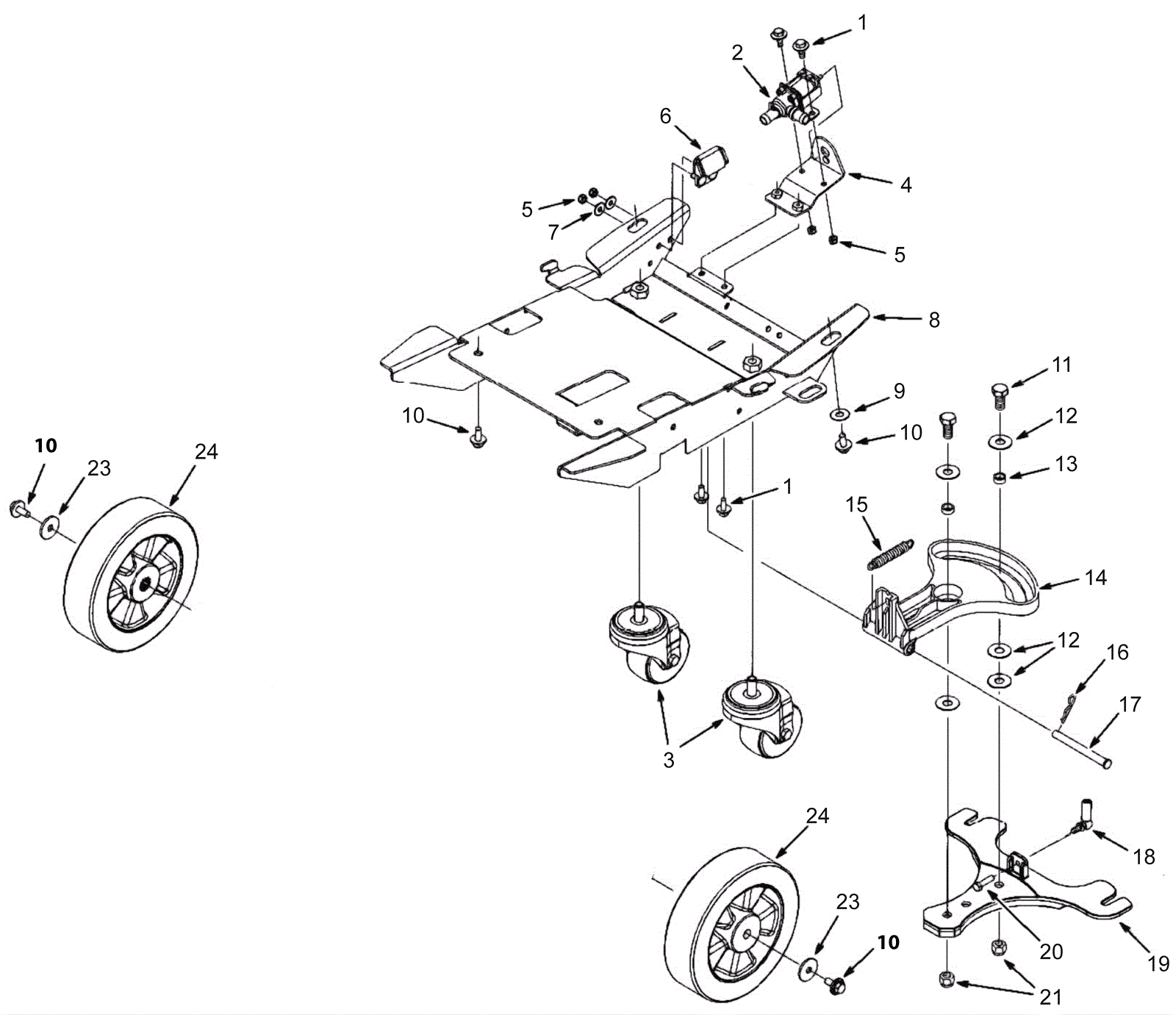

DX20 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 4 (screw M6 x 16 hex with washer) usually ships 3-26 days
2 252-9167 Water shut off solenoid valve $50.89 1 usually ships 3-12 days
3 252-9168 3 inch swivel caster $54.20 2 usually ships 3-12 days
4 252-9169 Valve mounting bracket Call for price 1 usually ships 3-12 days
5 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
6 252-9170 Head lift locator $9.19 1 usually ships 3-12 days
7 N/A Not available Call for price 2 (washer 6mm x 14mm x 1mm) usually ships 3-26 days
8 252-9171 Machine base plate $822.24 1 usually ships 3-12 days
9 N/A Not available Call for price 1 (washer 8mm x 22mm x 2mm) usually ships 3-26 days
10 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 3 ships same day
11 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread $4.82 1 ships same day
12 N/A Not available Call for price 5 (washer 12mm x 27mm x 2.5mm) usually ships 3-26 days
13 252-9172 Sleeve $9.19 2 usually ships 3-12 days
14 252-9173 Squeegee pivot bracket $126.75 1 usually ships 3-12 days
15 252-9174 Squeegee tension spring $18.18 1 usually ships 3-12 days
16 252-9175 Cotter hairpin $7.90 1 usually ships 3-12 days
17 252-9176 Pin axle $9.19 1 usually ships 3-12 days
18 252-9160 Ball joint $9.19 1 usually ships 3-12 days
19 252-9177 Squeegee mount bracket $128.78 1 usually ships 3-12 days
20 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 1 ships same day
21 999-0503 Nut M12-1.75 hex stainless steel $1.91 2 ships same day
23 N/A Not available Call for price 2 (washer 8mm x 32mm x 2.5mm) usually ships 3-26 days
24 252-9178 8 inch main wheel $139.25 2 usually ships 3-12 days
