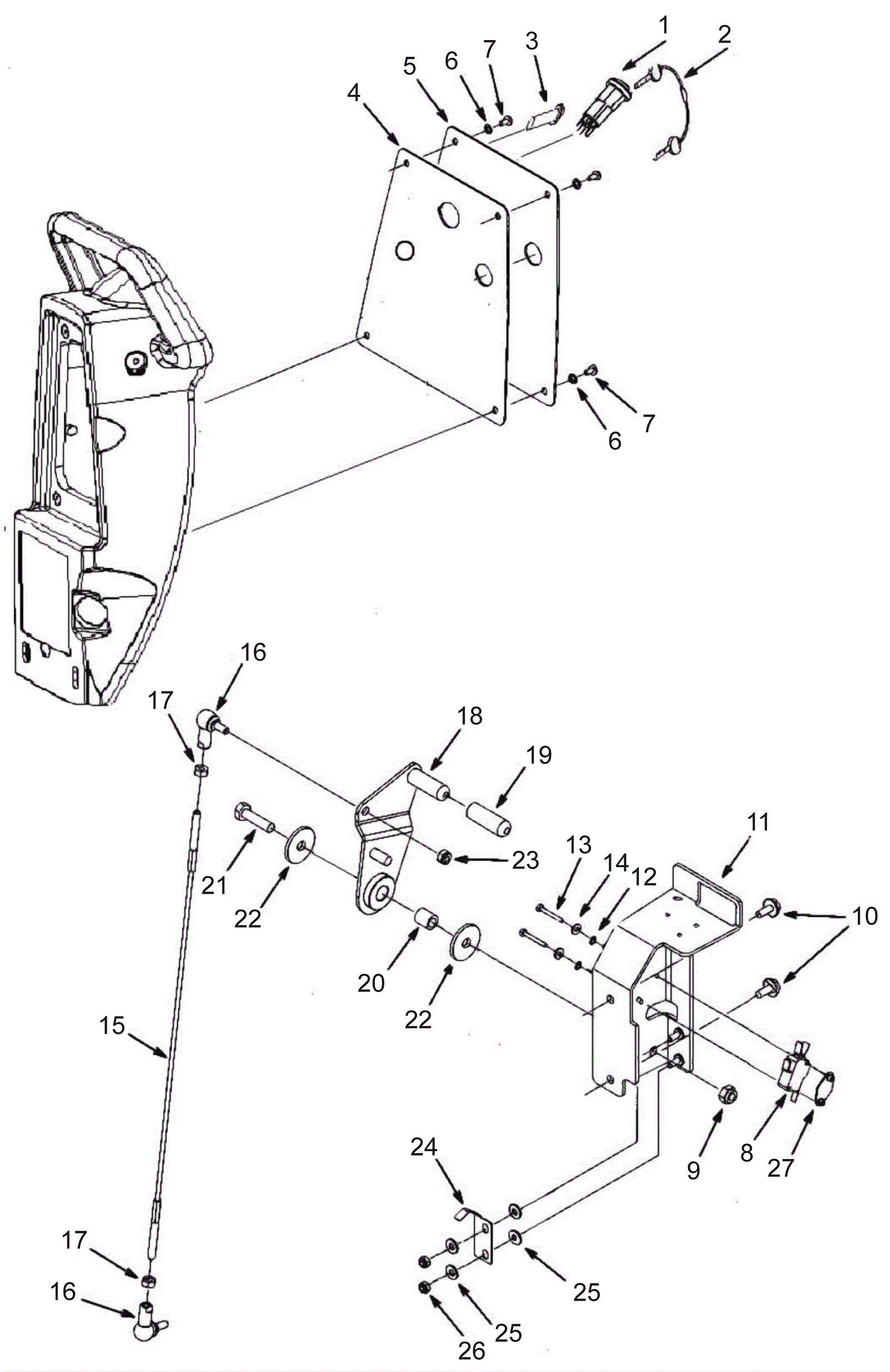

DX20 User Control Assembly-2

#PartDescriptionPriceReqNotesAvailability
1 252-9098 Key switch with 2 keys $49.41 1 usually ships 3-12 days
2 252-9099 Main on/off switch key $9.19 1 usually ships 3-12 days
3 252-9156 5 amp circuit breaker $9.19 1 usually ships 3-12 days
4 252-9155 Panel $92.59 1 usually ships 3-12 days
5 252-9157 Panel decal $9.19 1 usually ships 3-12 days
6 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
7 N/A Not available Call for price 2 (screw M4 x 10) usually ships 3-26 days
8 252-9093 Micro switch for brush $30.13 1 usually ships 3-12 days
9 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
10 N/A Not available Call for price 2 (screw M6 x 16 hex head with washer) usually ships 3-26 days
11 252-9158 Squeegee lift bracket $110.41 1 usually ships 3-12 days
12 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
13 999-6691 Screw M3-.5 x 20mm pan head phillips stainless steel $0.99 2 usually ships 11-24 days
14 N/A Not available Call for price 2 (washer M3) usually ships 3-26 days
15 252-9159 15 inch steel cable $74.77 1 usually ships 3-12 days
16 252-9160 Ball joint $9.19 2 usually ships 3-12 days
17 N/A Not available Call for price 2 (screw M6 hex) usually ships 3-26 days
18 252-9161 Squeegee lift lever $21.13 1 usually ships 3-12 days
19 252-9162 Handle knob sleeve $9.19 1 usually ships 3-12 days
20 252-9163 Sleeve $9.19 1 usually ships 3-12 days
21 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
23 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
24 252-9165 Squeegee lifting spring lever $9.19 1 usually ships 3-12 days
25 N/A Not available Call for price 4 (washer 5mm x 13mm x 1mm) usually ships 3-26 days
26 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
27 252-9166 Rhombus locating mechanism Call for price 1 usually ships 3-12 days
