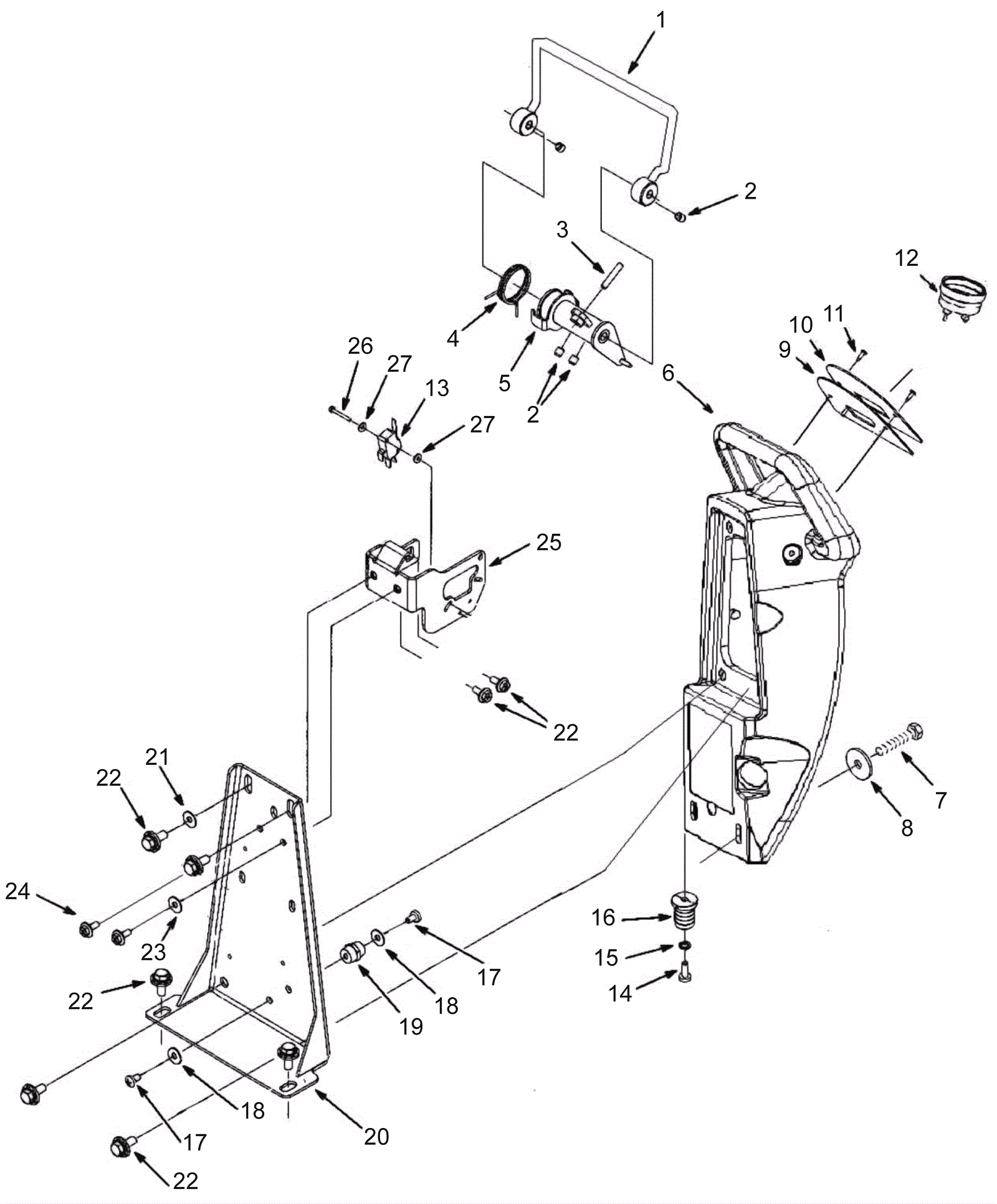

DX20 User Control Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 252-9087 Engagement lever handle $43.18 1 usually ships 3-12 days
2 N/A Not available Call for price 3 (screw M8 x 8) usually ships 3-26 days
3 N/A Not available Call for price 1 (screw M6 x 30) usually ships 3-26 days
4 N/A Not available Call for price 1 (spring) usually ships 3-26 days
5 252-9088 Rotating switch arm $74.77 1 usually ships 3-12 days
6 252-9089 Handle body $354.35 1 usually ships 3-12 days
7 999-9215 Screw M8-1.25 x 35 hex cap stainless full thread $1.36 1 usually ships 11-24 days
8 N/A Not available Call for price 1 (flat washer 8mm x 32mm x 2.5mm) usually ships 3-26 days
9 252-9090 Control board panel $45.01 1 usually ships 3-12 days
10 252-9091 Panel decal $9.19 1 usually ships 3-12 days
11 N/A Not available Call for price 2 (screw M4 x 10) usually ships 3-26 days
12 252-9092 Round hour and battery meter $127.12 1 usually ships 3-12 days
13 252-9093 Micro switch for brush $30.13 1 usually ships 3-12 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
15 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
16 252-9094 Pipe joint $9.19 1 usually ships 3-12 days
17 999-1908 Screw M6-1 x 10mm hex head stainless steel $0.99 2 ships same day
18 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
19 252-9095 Post head $9.19 1 usually ships 3-12 days
20 252-9096 Handle bracket $74.77 1 usually ships 3-12 days
21 N/A Not available Call for price 1 (washer 6mm x 24mm x 3mm) usually ships 3-26 days
22 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 6 ships same day
23 N/A Not available Call for price 1 (flat washer 6mm x 18mm x 1mm) usually ships 3-26 days
24 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 2 ships same day
25 252-9097 Protecting bracket $45.01 1 usually ships 3-12 days
26 999-6715 Screw M3-.5 x 6mm pan head stainless steel $0.99 1 usually ships 11-24 days
27 999-1521 Washer M3 flat stainless steel $0.99 1 ships same day
