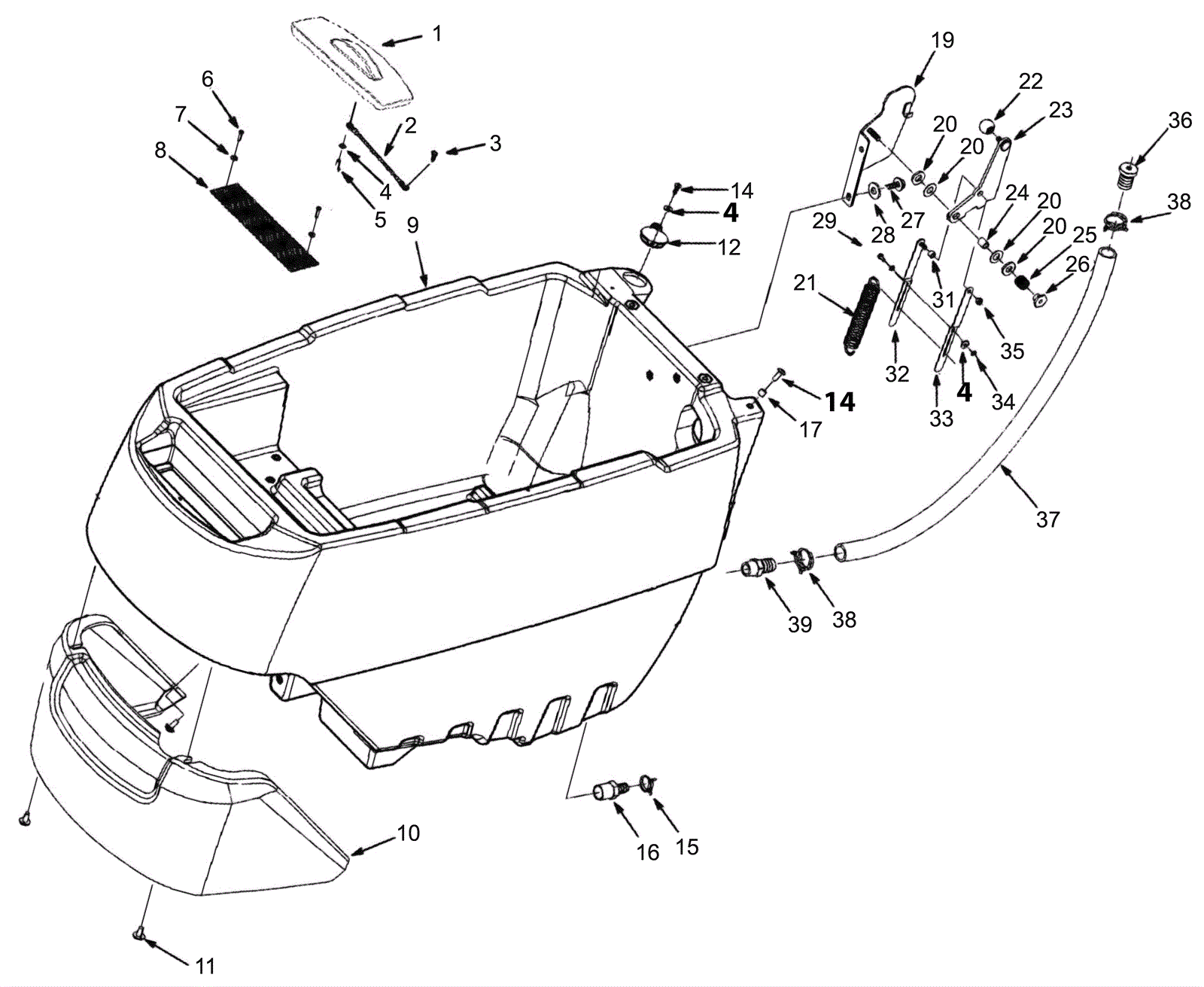

DX20 Fresh Water Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9063 Fresh water fill cover $15.25 1 usually ships 3-12 days
2 252-9064 Chain $9.19 1 usually ships 3-12 days
4 999-9089 Washer M4 flat stainless steel $0.99 3 ships same day
5 999-1898 Screw M4-.7 x 12mm pan head phillips stainless steel $0.99 1 ships same day
6 999-6691 Screw M3-.5 x 20mm pan head phillips stainless steel $0.99 2 usually ships 11-24 days
7 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
8 252-9065 Fresh water fill filter screen $9.19 1 usually ships 3-12 days
9 252-9066 Fresh water tank $777.79 1 usually ships 3-12 days
10 252-9067 Front guard $253.14 1 usually ships 3-12 days
11 N/A Not available Call for price 2 (screw M6 x 16 hex with washer) usually ships 3-26 days
12 252-9068 Fresh water hose fill cover $33.07 1 usually ships 3-12 days
14 N/A Not available Call for price 2 (screw M4 x 10) usually ships 3-26 days
15 252-9069 Hose clamp $9.19 1 usually ships 3-12 days
16 252-9070 Water fitting joint $43.73 1 usually ships 3-12 days
17 252-9071 Sleeve Call for price 1 usually ships 3-12 days
19 252-9072 Brush lifting bracket $30.13 1 usually ships 3-12 days
20 252-9073 Nylon washer $6.25 4 usually ships 3-12 days
21 252-9074 Head pressure spring $18.18 1 usually ships 3-12 days
22 252-9075 Handle knob $18.18 1 usually ships 3-12 days
23 252-9076 Brush lifting lever arm $31.78 1 usually ships 3-12 days
24 252-9077 Sleeve $9.19 1 usually ships 3-12 days
25 252-9078 Spring $18.18 1 usually ships 3-12 days
26 252-9079 Connect lifting rod nut Call for price 1 usually ships 3-12 days
27 N/A Not available Call for price 1 (screw 20 hex) usually ships 3-26 days
28 N/A Not available Call for price 1 (washer 8mm x 22mm x 2mm) usually ships 3-26 days
29 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 1 ships same day
31 252-9080 Sleeve $5.50 1 usually ships 3-12 days
32 252-9081 Left hand spring lever $21.13 1 usually ships 3-12 days
33 252-9082 Right hand spring lever $21.13 1 usually ships 3-12 days
34 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
35 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
36 252-9083 Water pipe connector $9.19 1 usually ships 3-12 days
37 252-9084 Water level indicator hose $55.66 1 usually ships 3-12 days
38 252-9085 Hose clamp $9.19 2 usually ships 3-12 days
39 252-9086 Water pipe joint $12.12 1 usually ships 3-12 days
