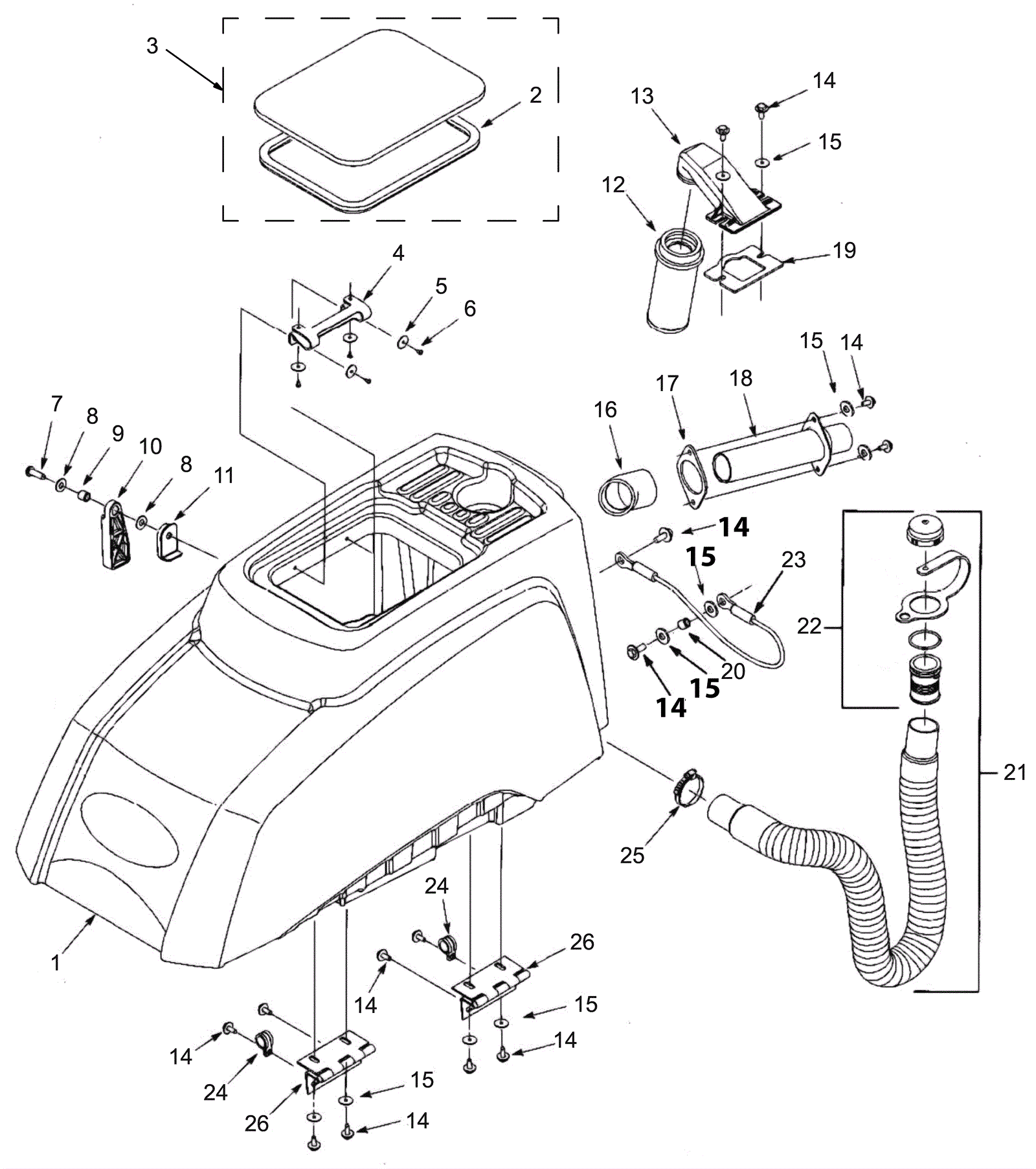

DX20 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-9031 Recovery tank $722.30 1 usually ships 3-12 days
2 252-9032 Recovery tank seal $38.03 1 usually ships 3-12 days
3 252-9033 Recovery tank cover and seal $56.76 1 (includes 2) usually ships 3-12 days
4 252-9034 Flexible strap hinge $42.39 1 usually ships 3-12 days
5 999-9089 Washer M4 flat stainless steel $0.99 4 ships same day
6 N/A Not available Call for price 4 (screw M4) usually ships 3-26 days
7 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 1 ships same day
8 N/A Not available Call for price 2 (flat washer 8mm x 22mm x 2mm) usually ships 3-26 days
9 252-9035 Sleeve $9.19 1 usually ships 3-12 days
10 252-9036 Tank lifting stop $8.09 1 usually ships 3-12 days
11 252-9037 Stop bracket $9.19 1 usually ships 3-12 days
12 252-9038 Floating ball shutoff tube complete assembly $33.07 1 (includes 13, 18) usually ships 3-12 days
13 252-9039 Float shutoff arm $21.13 1 usually ships 3-12 days
14 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 14 ships same day
15 N/A Not available Call for price 8 (flat washer 6mm x 18mm x 1mm) usually ships 3-26 days
16 252-9040 Elbow $18.18 1 usually ships 3-12 days
17 252-9041 Gasket $6.44 1 usually ships 3-12 days
18 252-9042 Plastic vac hose connector $27.01 1 usually ships 3-12 days
19 252-9043 Gasket $6.44 1 usually ships 3-12 days
20 252-9044 Sleeve $6.61 1 usually ships 3-12 days
21 252-9045 Recovery tank drainage hose assembly $62.82 1 (includes 22) usually ships 3-12 days
22 252-9046 Drainage hose plug assembly $16.35 1 usually ships 3-12 days
23 252-9047 Steel cable with eyelets $51.60 1 usually ships 3-12 days
24 252-9048 Wire clip $9.19 2 usually ships 3-12 days
25 252-9049 Hose clamp $9.19 1 usually ships 3-12 days
26 252-9050 Hinge $33.07 2 usually ships 3-12 days
