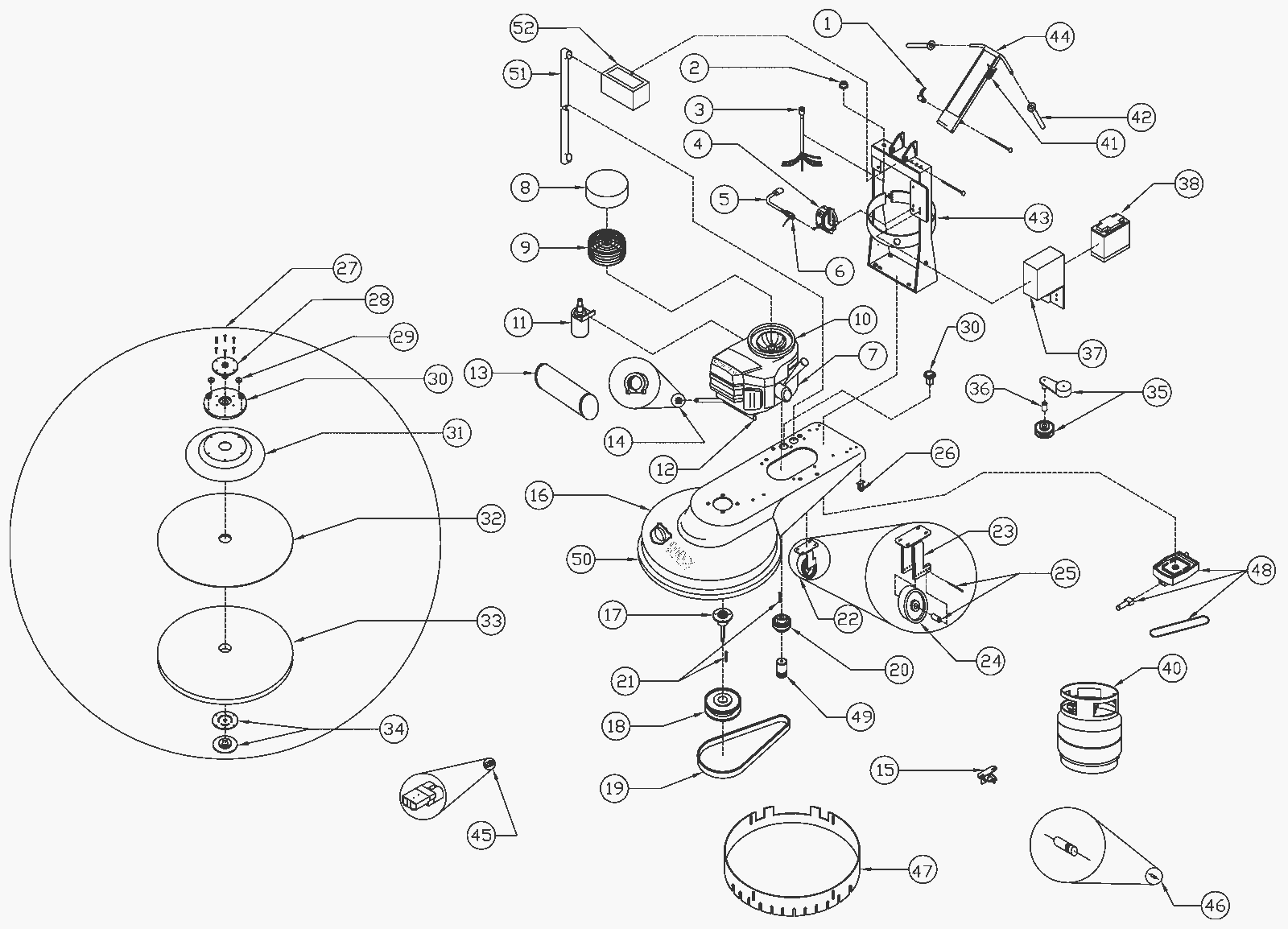

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
252-1366
|
Handle adjustment (OBSOLETE) |
1 |
|
|
2 |
169-0016
|
Key switch assembly with two keys |
1 |
|
|
3 |
252-1953
|
Ignition switch wiring harness (Onyx) |
1 |
|
|
4 |
252-1948
|
Regulator (N51) |
1 |
|
|
5 |
252-1420
|
14 Inch hose assembly with regulator |
1 |
|
|
6 |
991-6002
|
12V fuel lock off (Model 152) |
1 |
|
|
7a |
252-1441
|
13 Hp Kawasaki twin engine |
1 |
|
|
7b |
252-1442
|
17 Hp Kawasaki twin engine |
1 |
|
|
8 |
252-1548
|
Dust bonnet |
1 |
|
|
9 |
160-0123
|
3 tab filter cage for 18HP (metal) |
1 |
|
|
10 |
252-1549
|
Dust bonnet seal (OBSOLETE) |
1 |
|
|
11 |
178-0025
|
12V starter assembly kit (Kawasaki FH500V & FH541V engines) |
1 |
|
|
12a |
252-1444
|
17 Hp Kawasaki manifold |
1 |
|
|
12b |
N/A
|
Not available |
1 |
(17 hp kawasaki manifold) |
|
13a |
N/A
|
Not available |
1 |
(muffler) |
|
13b |
N/A
|
Not available |
1 |
(catalytic converter) |
|
14 |
252-9145
|
Muffler clamp |
1 |
|
|
15 |
160-0083
|
Starter solenoid (remote mounted) |
1 |
|
|
16 |
252-1378
|
27 inch deck assembly |
1 |
|
|
17 |
252-2093
|
Shaft assembly |
1 |
|
|
18 |
160-0135
|
Pulley 8.8 x 1 |
1 |
|
|
19 |
991-0009
|
BX51 belt |
1 |
|
|
20 |
160-0036
|
Pulley 3.5 x 1 |
1 |
|
|
21 |
252-1382
|
12 inch square keystock |
2 |
|
|
22 |
160-0062
|
6 inch caster wheel with bracket (standard) |
2 |
|
|
23 |
252-1386
|
Deluxe wheel bracket (5 holes) |
2 |
|
|
24 |
991-2014
|
6 inch drive wheel (includes bearings) |
2 |
|
|
25 |
252-9009
|
Axle kit |
2 |
|
|
26 |
181-1282
|
2 inch caster wheel |
1 |
|
|
27 |
252-0281
|
21 inch pad driver with thread hub |
1 |
|
|
28 |
991-8516
|
5 inch flange |
1 |
|
|
29 |
252-1554
|
Spacer |
6 |
|
|
30 |
252-1555
|
10 inch coupler (OBSOLETE) |
1 |
|
|
31 |
252-1556
|
Riser (OBSOLETE) |
1 |
|
|
32 |
252-0282
|
21 inch gripper surface |
1 |
|
|
33 |
252-9105
|
21 inch beige pad |
1 |
|
|
34a |
252-2147
|
27 inch pad driver assembly |
1 |
|
|
34b |
252-1558
|
27 inch gripper surface |
1 |
|
|
34c |
252-9113
|
27 inch beige pad(case of 5) |
1 |
|
|
35 |
252-9146
|
24-27 inch fenner rotary tensioner |
1 |
|
|
36 |
252-1559
|
Spacer |
1 |
|
|
37 |
252-1560
|
Battery box (OBSOLETE) |
1 |
|
|
38 |
162-0007
|
12V 12Ah sealed battery |
1 |
|
|
39 |
154-0019
|
Hour meter |
1 |
|
|
40 |
161-0004
|
Steel propane tank |
1 |
|
|
41 |
991-6017
|
53 inch throttle cable |
1 |
|
|
42 |
252-1401
|
Handle grip |
2 |
|
|
43 |
252-1452
|
Bottle carrier |
1 |
|
|
44 |
252-1563
|
T-handle |
1 |
|
|
45 |
252-1564
|
Battery connector |
1 |
|
|
46 |
252-1562
|
6amp diode |
1 |
|
|
47 |
252-9016
|
27 inch vacuum skirt (white) |
1 |
|
|
48 |
252-1974
|
Vacuum motor |
1 |
|
|
49 |
252-9108
|
Motor shaft extension |
1 |
|
|
50 |
252-9025
|
Plastic vacuum skirt (white) with hardware |
1 |
|
|
51 |
252-9109
|
Vacuum hose |
1 |
|
|
52 |
252-9110
|
Vacuum bag box |
1 |
|
|
