| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |

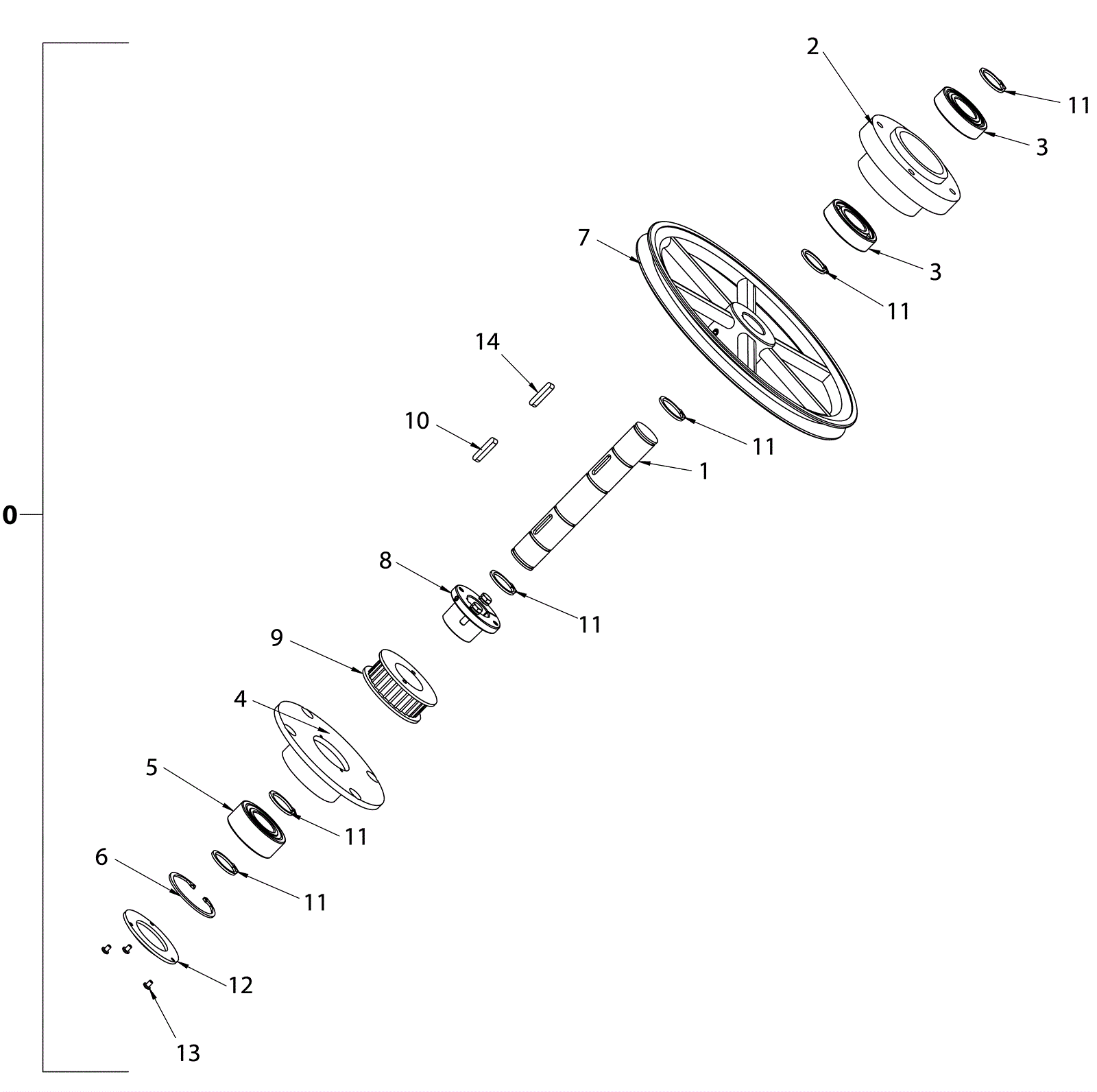

252-9572
|
Planetary shaft assembly |
Call for price
|
1 |
(includes 1-14) |
usually ships 9-11 days |
1 |
252-9573
|
Planetary main shaft |
$288.41
|
1 |
|
usually ships 9-11 days |
2 |
252-9455
|
Bearing housing |
$80.28
|
1 |
|
usually ships 9-11 days |
3 |
252-9453
|
Bearing |
$26.08
|
2 |
|
usually ships 9-11 days |
4 |
252-9574
|
Tristrip lower main housing |
$324.05
|
1 |
|
usually ships 9-11 days |
5 |
252-9575
|
Bearing |
$109.67
|
1 |
|
usually ships 9-11 days |
6 |
252-9576
|
Spring steel internal retaining ring |
$6.80
|
1 |
|
usually ships 9-11 days |
7 |
252-9458
|
7.9 inch pulley |
$38.39
|
1 |
|
usually ships 9-11 days |
8 |
252-9577
|
Bushing |
$47.21
|
1 |
|
usually ships 9-11 days |
9 |
252-1436
|
Sprocket P28-8M-30-JA |
$288.30
|
1 |
|
usually ships 1-5 days |
10 |
252-9578
|
1/4 x 1/4 x 1 1/4 machine key |
$5.87
|
1 |
|
usually ships 9-11 days |
11 |
252-9579
|
External retaining ring |
$7.54
|
6 |
|
usually ships 9-11 days |
12 |
252-9580
|
Bearing housing end cap |
$67.97
|
1 |
|
usually ships 9-11 days |
13 |
999-9266
|
Screw 8-32 x 1/4 pan head phillips |
$0.99
|
3 |
|
usually ships 12-18 days |
14 |
252-9456
|
Key 1/4 x 1/4 x 28mm |
$4.18
|
1 |
|
usually ships 9-11 days |
