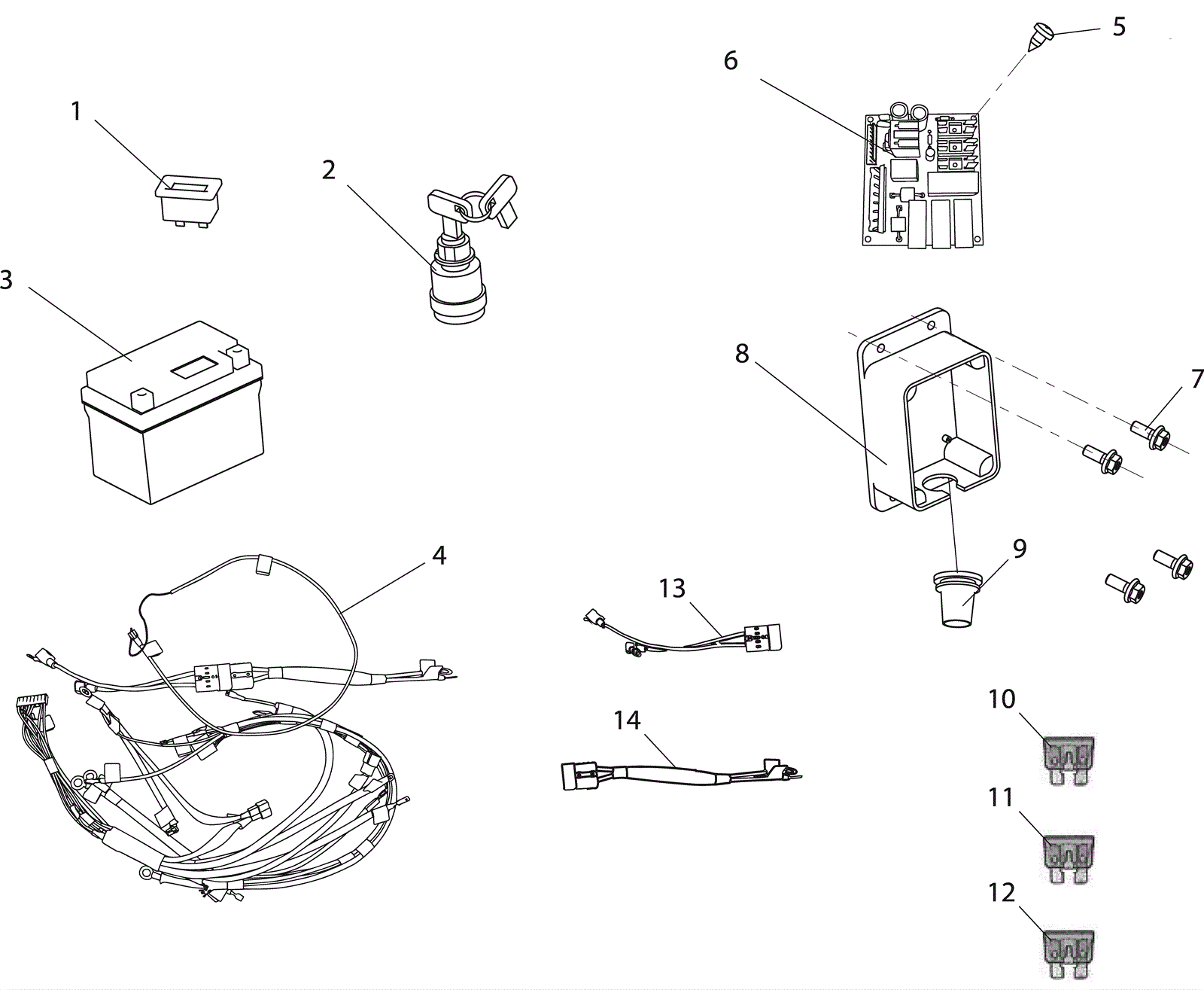

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
252-9509
|
Tach hour meter pin |
$47.76
|
1 |
|
usually ships 9-11 days |
2 |
252-2157
|
Ignition switch with 2 keys |
$16.28
|
1 |
|
usually ships 9-11 days |
3 |
252-9510
|
12V lithium ion battery |
$214.38
|
1 |
|
usually ships 9-11 days |
4 |
252-9511
|
Wire harness |
$80.47
|
1 |
|
usually ships 9-11 days |
5 |
252-9512
|
Screw 3 x 6 self tapping |
Call for price
|
4 |
|
usually ships 9-11 days |
6 |
252-9513
|
Circuit board |
$34.35
|
1 |
|
usually ships 9-11 days |
7 |
999-1801
|
Screw M6 X 12mm hex head flange |
$2.79
|
4 |
|
ships same day |
8 |
252-9514
|
Electronic box and cover |
$15.62
|
1 |
|
usually ships 9-11 days |
9 |
252-9515
|
Wire grommet |
$4.40
|
1 |
|
usually ships 9-11 days |
10 |
252-9516
|
3Amp fuse (ATO blade type) |
$5.50
|
1 |
|
usually ships 9-11 days |
11 |
252-9517
|
7.5Amp fuse (ATO blade type) |
$5.50
|
1 |
|
usually ships 9-11 days |
12 |
252-9518
|
15Amp fuse (ATO blade type) |
$5.50
|
1 |
|
usually ships 9-11 days |
13 |
252-9519
|
Lithium ion battery to connector cable |
$17.46
|
1 |
(battery to connector) |
usually ships 9-11 days |
14 |
252-9520
|
Starter solenoid to battery connector |
$16.53
|
1 |
(starter solenoid to battery connector) |
usually ships 9-11 days |
