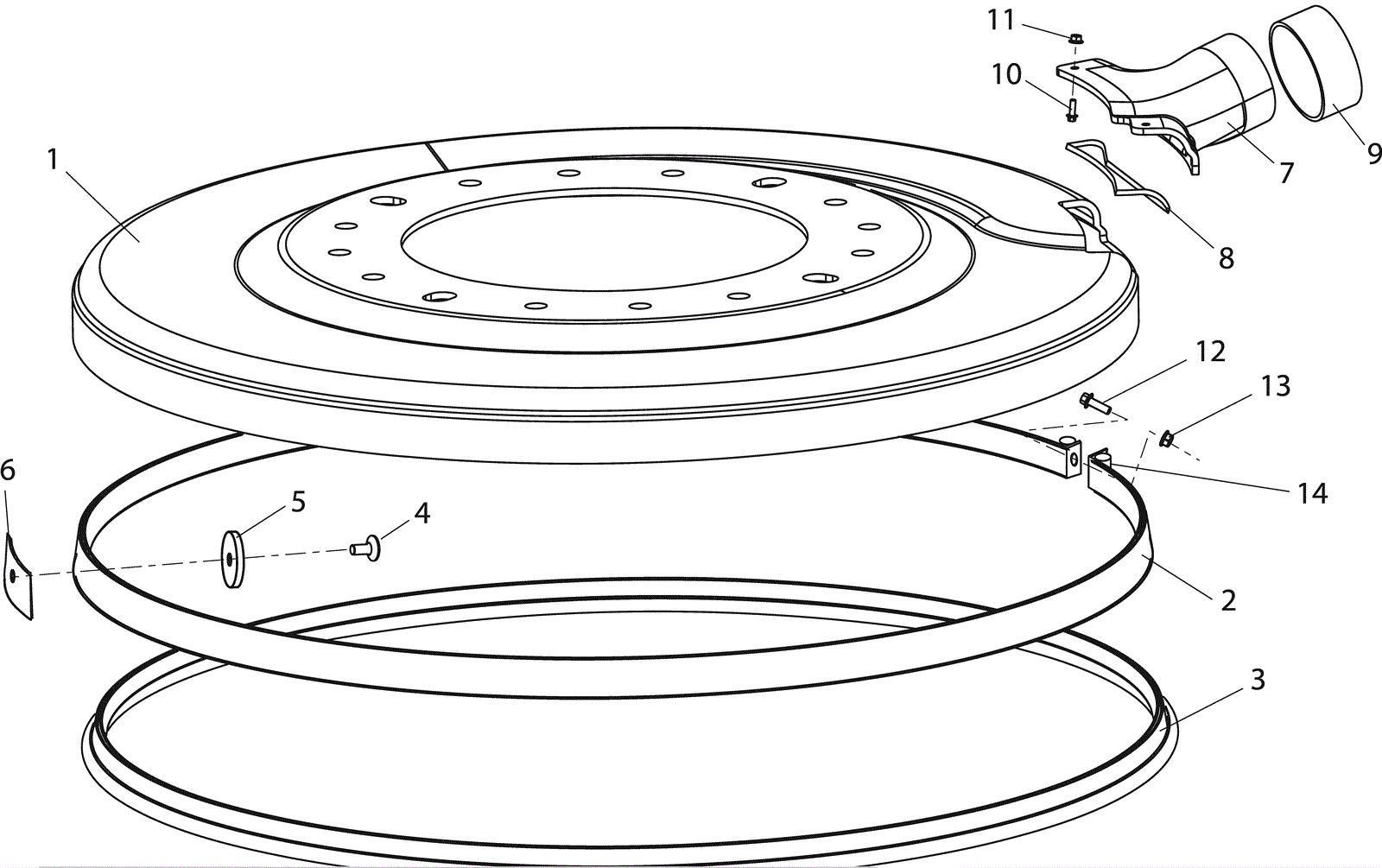

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
252-9150
|
27 inch shroud |
$110.31
|
1 |
(27 inch) |
usually ships 9-11 days |
1b |
252-9469
|
24 inch shroud |
$116.28
|
1 |
(24 inch) |
usually ships 9-11 days |
1c |
252-9470
|
21 inch shroud |
$93.69
|
1 |
(21 inch) |
usually ships 9-11 days |
2a |
252-9471
|
27 inch shroud seal strap |
$17.27
|
1 |
(27 inch) |
usually ships 9-11 days |
2b |
252-9472
|
24inch shroud seal strap |
$16.90
|
1 |
(24 inch) |
usually ships 9-11 days |
2c |
252-9473
|
21 inch shroud seal strap |
$16.90
|
1 |
(21 inch) |
usually ships 9-11 days |
3 |
252-9474
|
Shroud seal with adhesive back (cut to fit) |
$22.59
|
1 |
|
usually ships 9-11 days |
4 |
252-9475
|
Screw M5 x 20 flat head socket cap stainless |
$4.18
|
10 |
|
usually ships 9-11 days |
5 |
252-9476
|
Washer M5 x 35OD x 3 flat |
$4.40
|
10 |
|
usually ships 9-11 days |
6 |
252-9477
|
Rounded clip nut M5 zinc |
$5.06
|
10 |
|
usually ships 9-11 days |
7a |
252-9478
|
Dust chute |
$8.45
|
1 |
(27 and 24 inch compatible) |
usually ships 9-11 days |
7b |
252-9479
|
Dust chute |
$9.55
|
1 |
(21 inch compatible) |
usually ships 9-11 days |
8 |
252-9480
|
20 inch dust chute foam gasket |
$4.40
|
1 |
|
usually ships 9-11 days |
9 |
252-9481
|
Dust chute cap |
$7.54
|
1 |
|
usually ships 9-11 days |
10 |
999-9261
|
Bolt M6 x 16 flange zinc |
$0.99
|
4 |
|
usually ships 12-18 days |
11 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
4 |
|
ships same day |
12 |
252-9482
|
Bolt M5 x 65 hex head flange zinc |
$4.18
|
1 |
|
usually ships 9-11 days |
13 |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
14 |
252-9483
|
Round pin with M5 clearance hole |
$5.06
|
2 |
|
usually ships 9-11 days |
