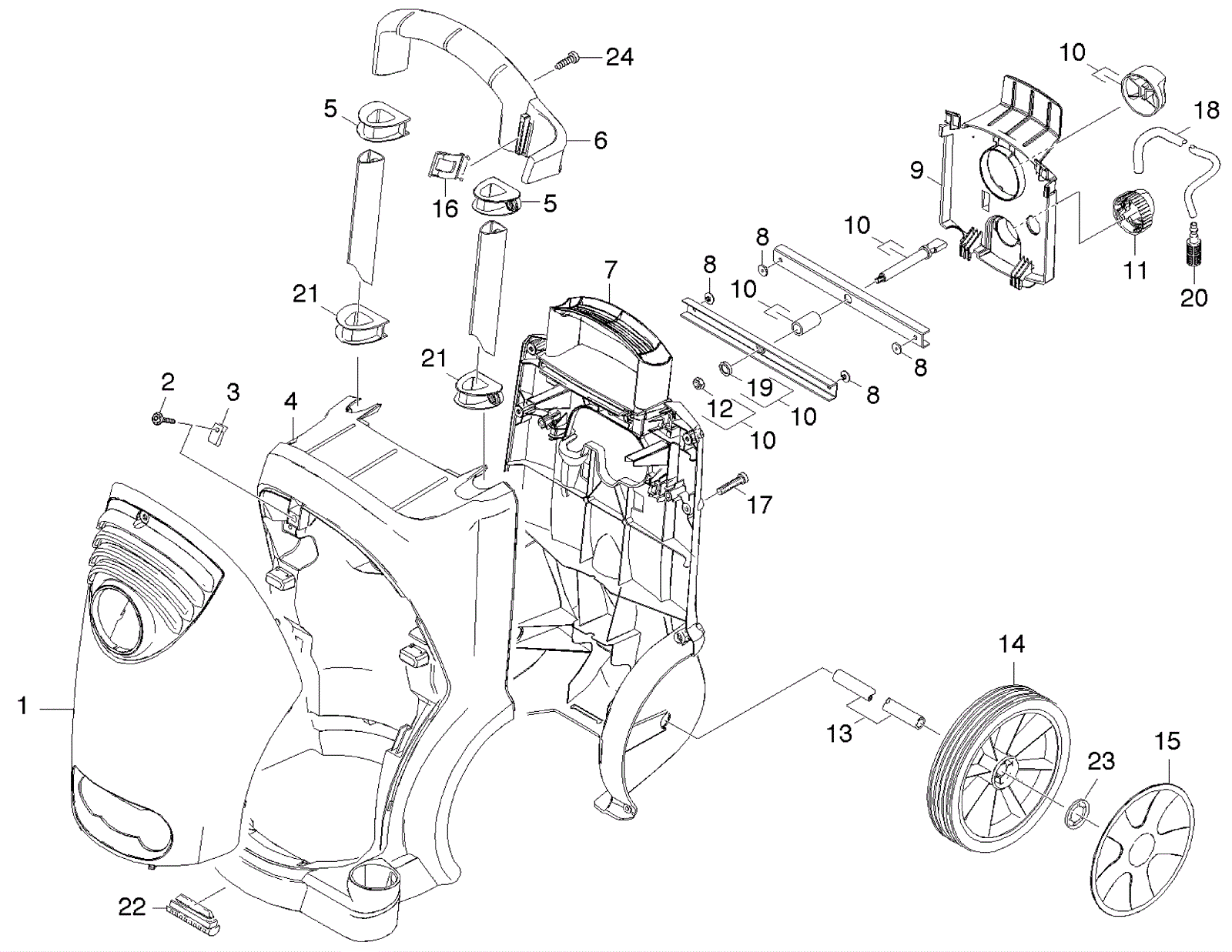

KE-231407D Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-3000 Cover Call for price 1 usually ships 10-13 days
2 252-3001 Screw M16-8x 4.8mm $1.58 1 usually ships 10-13 days
3 252-3002 Putting nut $2.84 1 usually ships 10-13 days
4 252-3003 Frame front part $102.99 1 usually ships 11-15 days
5 252-3004 Guide $2.31 2 usually ships 10-13 days
6 252-3005 Handle $14.19 1 usually ships 10-13 days
7 252-3006 Frame rear panel $63.80 1 usually ships 10-13 days
8 252-3007 Rivet $1.32 4 usually ships 11-15 days
9a 252-3008 Covering cap $18.15 1 usually ships 11-15 days
9b 252-3008 Covering cap $18.15 1 usually ships 11-15 days
10 252-3010 Handhold Call for price 1 (includes 12 and 19) usually ships 10-13 days
11 252-3011 Chemistry valve $19.25 1 usually ships 10-13 days
12 252-3012 Hexagon nut $0.99 1 usually ships 11-15 days
13 252-3013 Axle $7.54 1 usually ships 10-13 days
14 173-0744 Wheel caps set $37.08 2 usually ships 11-15 days
15 173-0744 Wheel caps set $37.08 1 usually ships 11-15 days
16 252-3016 Bracket $10.89 1 usually ships 10-13 days
17 252-3017 Screw M5x20mm $0.62 10 ships same day
18 173-6219 Hose (sold by the foot) $7.06 1 usually ships 10-13 days
20 252-2016 Filter with weight $30.69 1 usually ships 10-13 days
21 252-3019 Guide $3.30 2 usually ships 10-13 days
22 252-3020 Support $11.66 2 usually ships 10-13 days
23 252-3021 Chassis clip $4.95 2 usually ships 10-13 days
