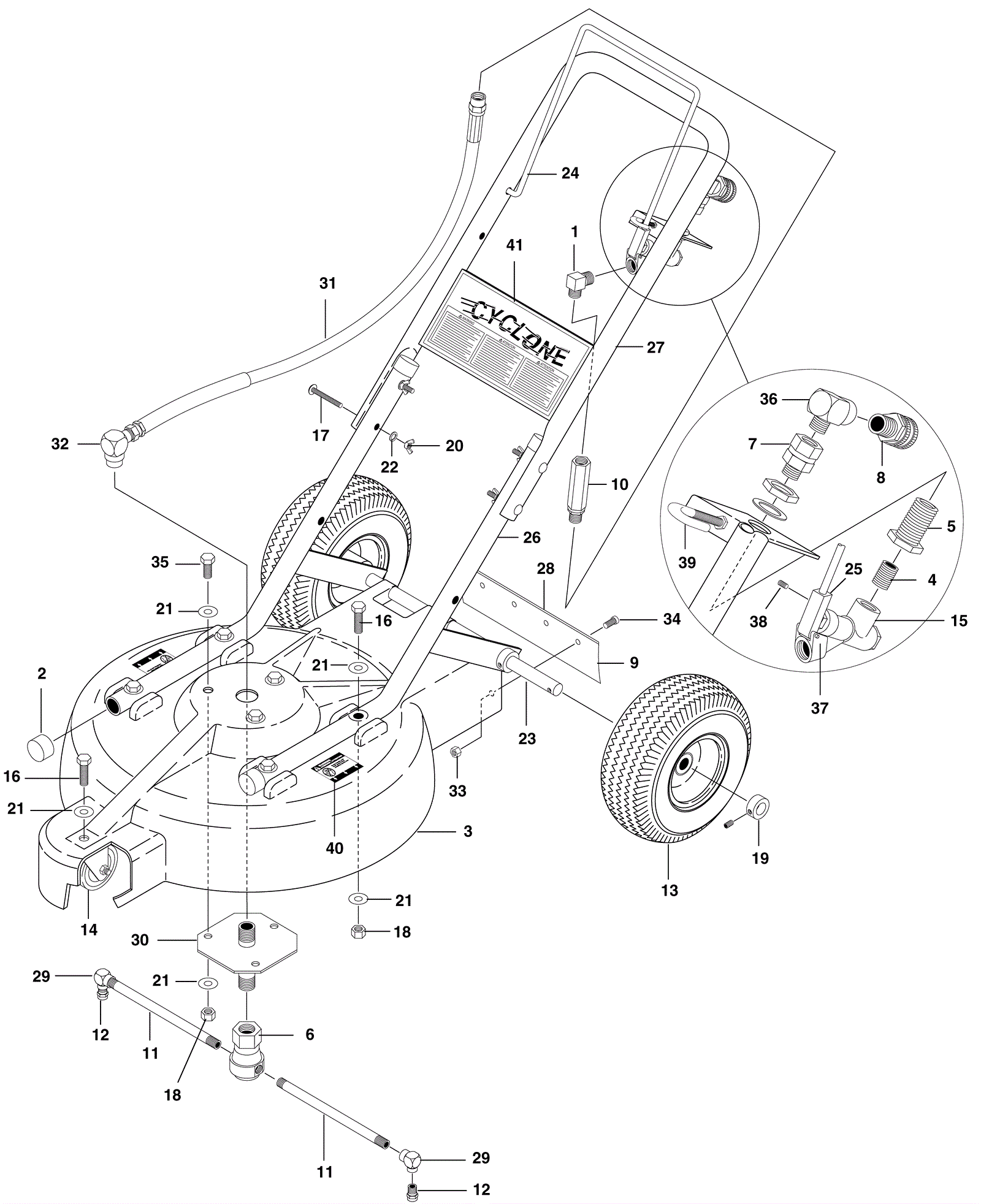

CYCLONE Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 252-2021 Elbow 1/4 inch male $8.80 1 usually ships 1-5 days
2 252-2022 Vinyl cap $0.99 4 usually ships 1-5 days
3 252-1982 Water jet base (black) $253.00 1 usually ships 1-5 days
4 252-2023 1/4 inch nipple $4.88 1 usually ships 1-5 days
5 252-2024 1/4 inch anchor connector $11.99 1 usually ships 1-5 days
6 252-1947 Swivel union $268.40 1 usually ships 1-5 days
7 252-2025 1/4 inch high pressure swivel $78.65 1 usually ships 1-5 days
8 252-1949 3/8 inch socket coupler $8.36 1 usually ships 10-11 days
9 252-2026 Splash guard $19.47 1 usually ships 10-11 days
10a 252-2027 High pressure filter $22.51 1 usually ships 1-5 days
10b 252-2028 High pressure filter screen $12.32 1 usually ships 1-5 days
10c N/A Not available Call for price 1 (Gasket) usually ships 3-26 days
11 252-2029 8 inch rotary wand $52.03 2 usually ships 1-5 days
12 252-2030 1/8 inch nozzle $8.86 2 usually ships 10-11 days
13 252-1967 Wheel and tire assembly $19.25 2 usually ships 10-11 days
14 252-1979 3 inch caster wheel (gray) $67.65 1 usually ships 10-11 days
15 252-2002 Actuator valve assembly $86.35 1 usually ships 10-11 days
16 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 5 ships same day
17 999-0605 Screw 1/4-20 x 2 carriage head stainless steel $5.50 4 ships same day
18 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 8 ships same day
19 252-0015 Collar 5/8 inch $2.73 4 usually ships 1-5 days
20 999-0603 Nut 1/4-20 wing stainless steel $7.33 4 ships same day
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 13 ships same day
22 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
23 252-2031 Axle $34.21 1 usually ships 1-5 days
24 252-1976 Trigger bar $36.41 1 usually ships 10-11 days
25 252-2032 Trigger bar valve adapter $26.73 1 usually ships 10-11 days
26 252-2033 Lower handle assembly $61.05 2 usually ships 1-5 days
27 252-2034 Upper handle assembly $100.10 1 usually ships 1-5 days
28 252-2035 Splash guard backup plate $11.00 1 usually ships 1-5 days
29 252-2036 90 degree elbow $10.56 2 usually ships 1-5 days
30 252-2037 Bulkhead nipple $73.15 1 usually ships 1-5 days
31 252-2038 Pressure hose 3/8 x 34 inch $55.55 1 usually ships 10-11 days
32 252-1713 90 degree elbow $23.32 1 usually ships 1-5 days
33 999-0679 Nut 10-32 hex stainless steel $0.99 4 ships same day
34 252-2045 Screw 10-32 x 1/2 socket head cap stainless steel $0.99 4 usually ships 1-5 days
35 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 3 ships same day
36 252-2039 Street elbow $9.19 1 usually ships 1-5 days
37 252-2040 Roll pin $0.99 1 usually ships 10-11 days
38 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 1 ships same day
39a 252-2041 Hook $1.98 1 usually ships 10-11 days
39b 252-2046 Nut 10-24 whiz loc $0.99 2 usually ships 1-5 days
40a 252-2042 Warning decal $5.50 2 usually ships 10-11 days
40b 252-2043 Made in USA decal $5.48 1 usually ships 10-11 days
41 252-2044 Cyclone decal $24.75 1 usually ships 10-11 days
