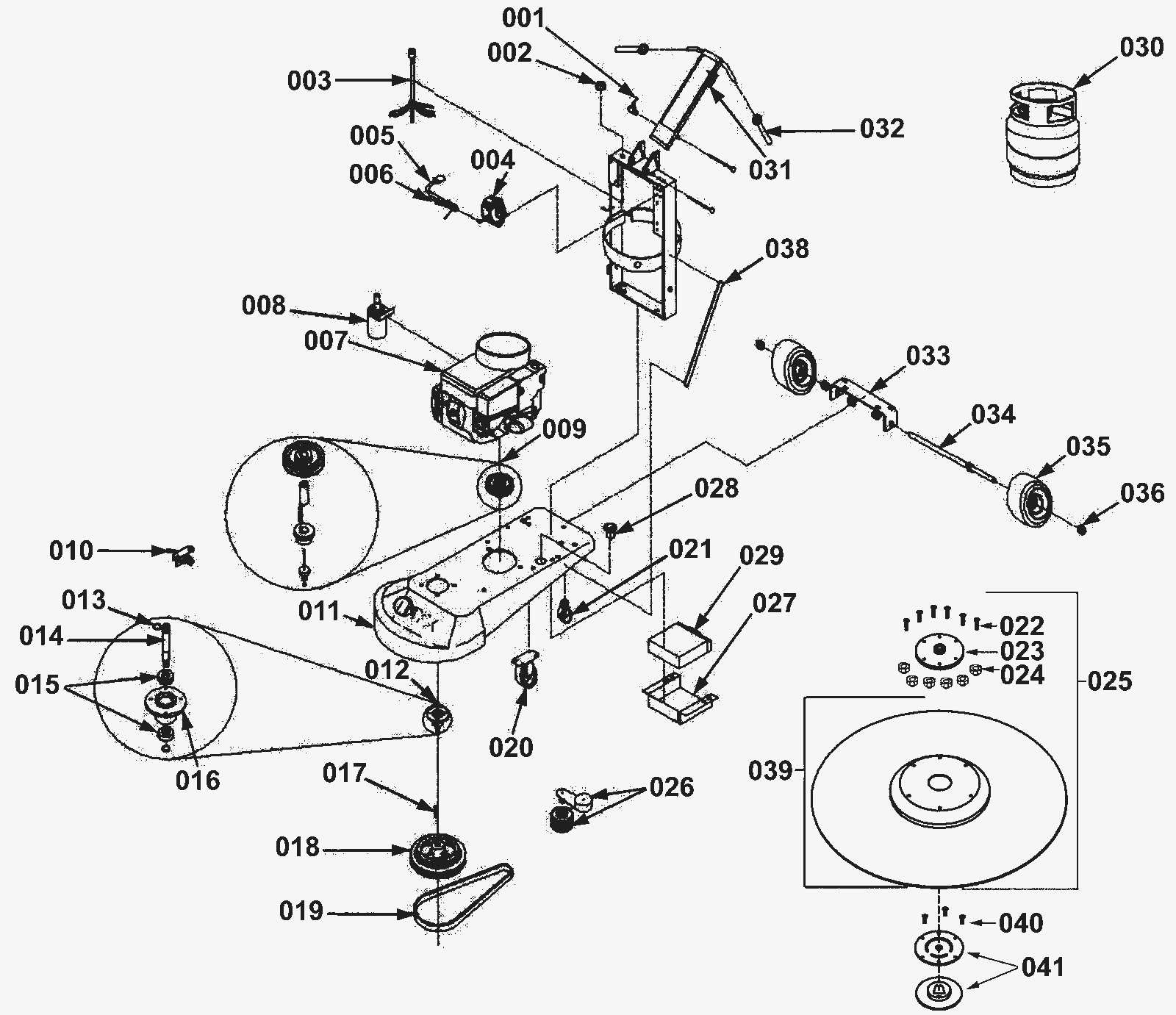

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
252-1366
|
Handle adjustment (OBSOLETE) |
1 |
|
|
002 |
169-0016
|
Key switch assembly with two keys |
1 |
|
|
003 |
252-1953
|
Ignition switch wiring harness (Onyx) |
1 |
|
|
004 |
991-6001
|
Fuel regulator (T60) |
1 |
|
|
005a |
991-6007
|
Propane fuel hose |
1 |
12V models |
|
005b |
252-1420
|
14 Inch hose assembly with regulator |
1 |
110V models |
|
005c |
252-1419
|
14 Inch fuel hose w/swivel (OBSOLETE) |
1 |
110V models |
|
006 |
991-6002
|
12V fuel lock off (Model 152) |
1 |
|
|
007a |
252-1371
|
11 HP Honda engine |
1 |
|
|
007b |
252-1372
|
13 HP Honda engine |
1 |
|
|
008a |
991-1607
|
12V starter for Honda |
1 |
12V models |
|
008b |
N/A
|
Not available |
1 |
(includes 008c) (120v electric starter) |
|
008c |
154-0599
|
Electric starter cord (OBSOLETE) |
1 |
|
|
009 |
160-0036
|
Pulley 3.5 x 1 |
1 |
|
|
009a |
160-0025
|
Pulley 6.2 x 1 |
1 |
|
|
010a |
160-0083
|
Starter solenoid (remote mounted) |
1 |
|
|
010b |
991-9257
|
SOLENOID -STARTER 12V |
1 |
(NON-OEM) |
|
011a |
252-1376
|
21 inch deck |
1 |
|
|
011b |
252-1377
|
24 inch deck assembly |
1 |
|
|
011c |
252-1378
|
27 inch deck assembly |
1 |
|
|
012 |
252-1341
|
Front end assembly (long) |
1 |
|
|
013 |
252-1379
|
Snap ring |
2 |
|
|
014 |
252-9005
|
6.625 shaft |
1 |
|
|
015 |
252-1380
|
Bearing |
2 |
|
|
016a |
252-2058
|
Front bearing assembly |
1 |
|
|
016b |
160-0025
|
Pulley 6.2 x 1 |
1 |
21 inch |
|
016c |
252-1417
|
7.5 Inch pulley for 24 inch buffer |
1 |
24 inch |
|
016d |
160-0135
|
Pulley 8.8 x 1 |
1 |
27 inch |
|
017 |
252-9024
|
Square keyway 1 1/4 x 1/4 |
2 |
|
|
018a |
252-1383
|
13.8 Inch pulley |
1 |
|
|
018b |
252-1384
|
11.25 Inch pulley |
1 |
|
|
019a |
252-1385
|
56 inch belt |
1 |
21 inch |
|
019b |
991-0002
|
BX43 belt |
1 |
24 inch |
|
019c |
991-0009
|
BX51 belt |
1 |
27 inch |
|
020a |
252-1386
|
Deluxe wheel bracket (5 holes) |
2 |
|
|
020b |
991-2014
|
6 inch drive wheel (includes bearings) |
2 |
|
|
020c |
164-3118
|
Delrin bearing for 164-0960 |
2 |
|
|
020d |
252-9009
|
Axle kit |
2 |
|
|
021 |
252-1387
|
Rear castor |
1 |
|
|
022 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
6 |
|
|
024 |
999-0069
|
Nut 5/16-18 hex |
6 |
|
|
025 |
996-5056
|
27 inch complete pad driver assembly (OBSOLETE) |
1 |
|
|
026a |
160-0030
|
Idler pulley with belt tensioner |
1 |
|
|
026b |
160-0030
|
Idler pulley with belt tensioner |
1 |
|
|
026c |
252-2061
|
Rotary tensioner pulley |
1 |
|
|
027 |
252-1396
|
Battery tray |
1 |
|
|
028a |
154-0019
|
Hour meter |
1 |
(OEM) |
|
028b |
991-8559
|
Hour meter |
1 |
(NON-OEM) |
|
029 |
162-0007
|
12V 12Ah sealed battery |
1 |
|
|
030a |
161-0003
|
Aluminum propane tank |
1 |
|
|
030b |
154-1065
|
Steel propane tank |
1 |
|
|
031a |
252-1400
|
Honda throttle cable 31 inch (OBSOLETE) |
1 |
|
|
031b |
160-0006
|
48 inch throttle control cable |
1 |
|
|
031c |
252-1412
|
Vacuum fuel lockoff |
1 |
110V models |
|
032 |
252-1401
|
Handle grip |
2 |
|
|
033 |
252-1402
|
Strip buff tire bracket |
1 |
|
|
034 |
252-1403
|
Strip buff axle |
1 |
|
|
035 |
252-1404
|
Strip buff tire |
2 |
|
|
036 |
252-1405
|
Zinc collar 3/4 inch ID |
6 |
|
|
038 |
252-1407
|
Support bar |
2 |
|
|
039 |
996-5059
|
27 inch flex and riser assembly |
1 |
|
|
040 |
999-1296
|
Screw 12 x 5/8 pan head phillips |
3 |
|
|
041 |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
1 |
|
|
