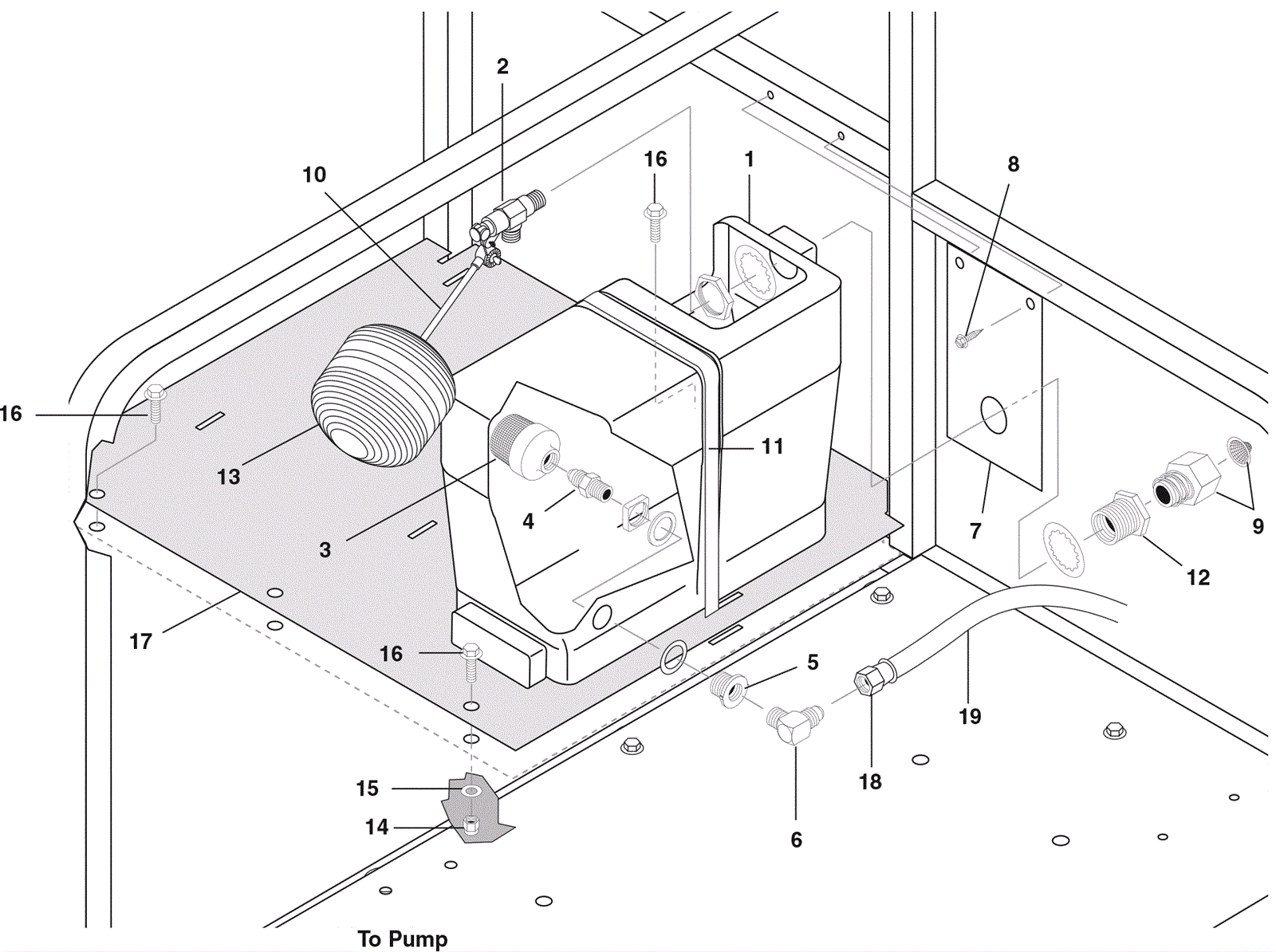

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
252-1816
|
Float tank |
1 |
|
|
2 |
252-1817
|
Float valve |
1 |
|
|
3 |
252-1522
|
Float tank strainer with mesh filter |
1 |
|
|
4 |
252-1257
|
Nipple 1/2 inch JIC x 1/2 inch MPT |
1 |
|
|
5 |
352-1037
|
1/2 inch bulkhead |
1 |
|
|
6 |
252-1192
|
Male elbow 3/4 inch x 1/2 inch |
1 |
|
|
7 |
252-1820
|
Support plate |
1 |
|
|
8 |
252-1821
|
Screw #14 x 1 tek |
2 |
|
|
9 |
252-1260
|
Swivel 1/2 inch MP x 3/4 inch GHF w/strainer |
1 |
|
|
10 |
252-1822
|
Float stem |
1 |
|
|
11 |
252-1823
|
48 inch cable |
1 |
|
|
12 |
252-1262
|
Connector anchor 1/2 inch |
1 |
|
|
13 |
252-1263
|
Black plastic float ball |
1 |
|
|
14 |
252-0109
|
Nut 1/4 inch ESNA |
3 |
|
|
15 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
16 |
252-1154
|
Screw 1/4 inch x 34 inch hex head |
3 |
|
|
17 |
252-1826
|
Plate |
1 |
|
|
18 |
252-1593
|
Female swivel |
1 |
|
|
19 |
252-1597
|
Push on hose (sold by the inch) |
1 |
|
|
