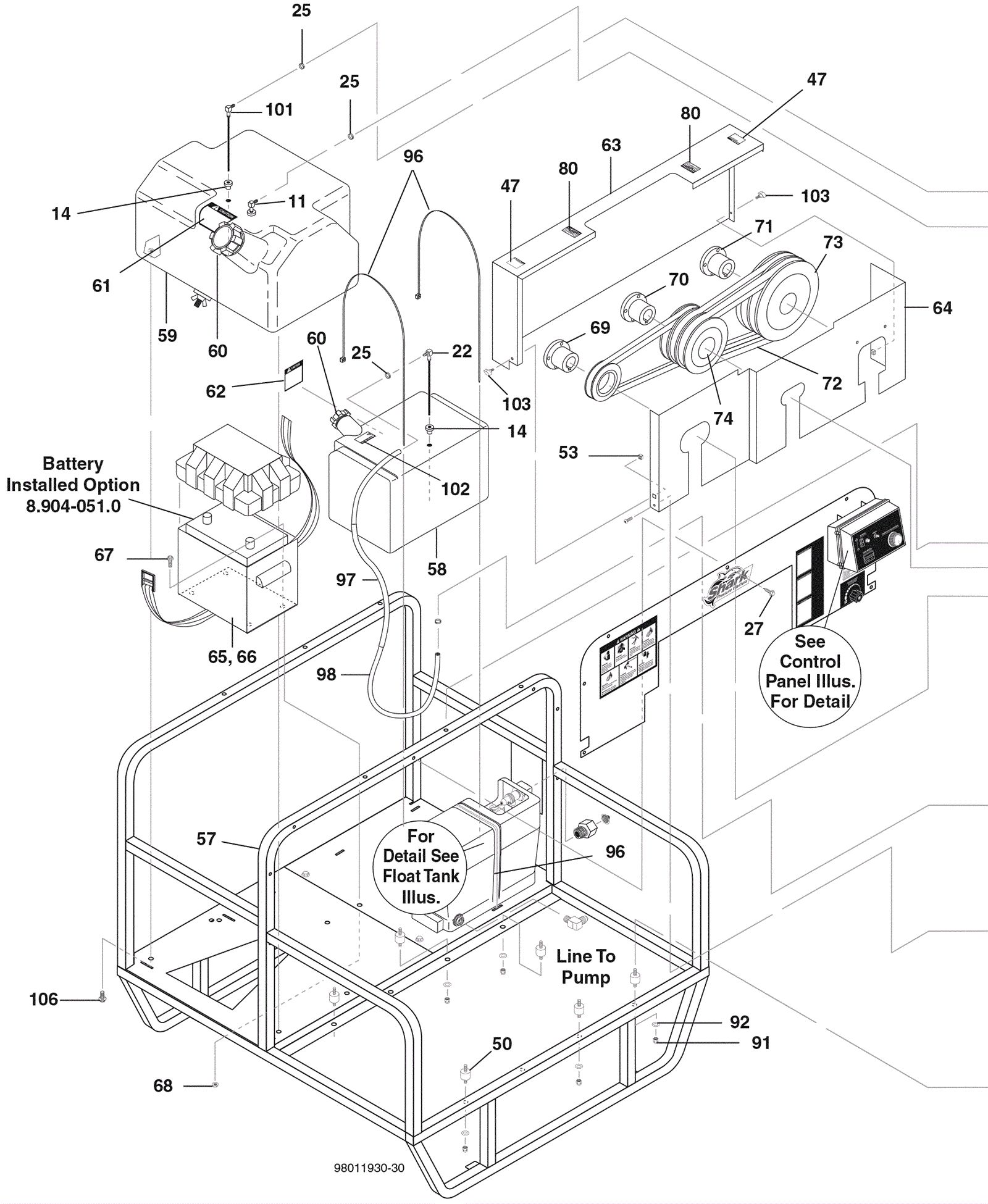

| # | Part | Description |
Req | Notes | Availability |
|---|
11 |
252-1099
|
Zinc elbow |
1 |
|
|
14 |
252-1102
|
Rubber bushing |
3 |
|
|
22 |
252-1845
|
Plastic dip tube |
1 |
|
|
25 |
252-1109
|
Hose clamp |
4 |
|
|
27 |
252-1821
|
Screw #14 x 1 tek |
11 |
|
|
47 |
252-1142
|
Belt guard label |
1 |
(qty 2 for long) |
|
50 |
252-1847
|
Rubber mount |
6 |
|
|
53 |
252-1629
|
Cage nut |
10 |
(qty 11 with generator) |
|
57 |
252-1848
|
Frame weldment |
1 |
|
|
58 |
252-1165
|
6 gallon burner diesel tank |
1 |
|
|
59 |
352-1024
|
8 gallon fuel tank |
1 |
|
|
60 |
252-1544
|
Fuel cap |
2 |
|
|
61 |
352-1025
|
Diesel decal |
1 |
|
|
62 |
252-1168
|
Unleaded caution label |
1 |
|
|
63 |
252-1169
|
Long belt guard weldment |
1 |
|
|
64 |
252-1172
|
Long face plate w/black weldment |
1 |
|
|
65 |
252-1174
|
Battery box |
1 |
|
|
66 |
252-1741
|
Battery box plate |
1 |
|
|
67 |
252-1176
|
Screw 3/8 inch x 3/4 inch HH NC |
4 |
|
|
68 |
252-1177
|
Nut 3/8 inch Flange whiz lock |
4 |
|
|
69 |
252-1178
|
Bushing, H x 5/8 inch |
1 |
|
|
70a |
252-1859
|
20HP engine |
1 |
(with generator) |
|
70b |
252-2092
|
Bushing |
1 |
(without generator) |
|
71 |
252-1179
|
Pump bushing, H x 24mm 1 |
1 |
|
|
72 |
225-0465
|
BX44 belt |
1 |
|
|
73 |
252-1864
|
Pulley |
1 |
(without generator) |
|
74a |
252-1861
|
Pulley |
1 |
(with generator) |
|
74b |
252-1870
|
Pulley |
1 |
(without generator) |
|
80 |
252-1701
|
Hot warning decal |
2 |
(qty 1 short belt guard) |
|
91 |
273-9720
|
Nut 5/16 |
6 |
|
|
92 |
999-0024
|
Washer 5/16 flat stainless steel |
12 |
|
|
96 |
252-1823
|
48 inch cable |
2 |
|
|
97 |
252-1871
|
Insulation |
30 inches |
|
|
98 |
252-1727
|
Push on hose |
1 |
|
|
101 |
252-1210
|
Dip tube, 10 3/4 inch |
1 |
|
|
102 |
252-1211
|
Cool engine danger label |
1 |
|
|
103 |
252-1873
|
Screw 1/4 x 1/2 thumb |
4 |
|
|
106 |
252-1647
|
Screw 1/4 x 1/2 whiz loc |
2 |
|
|
