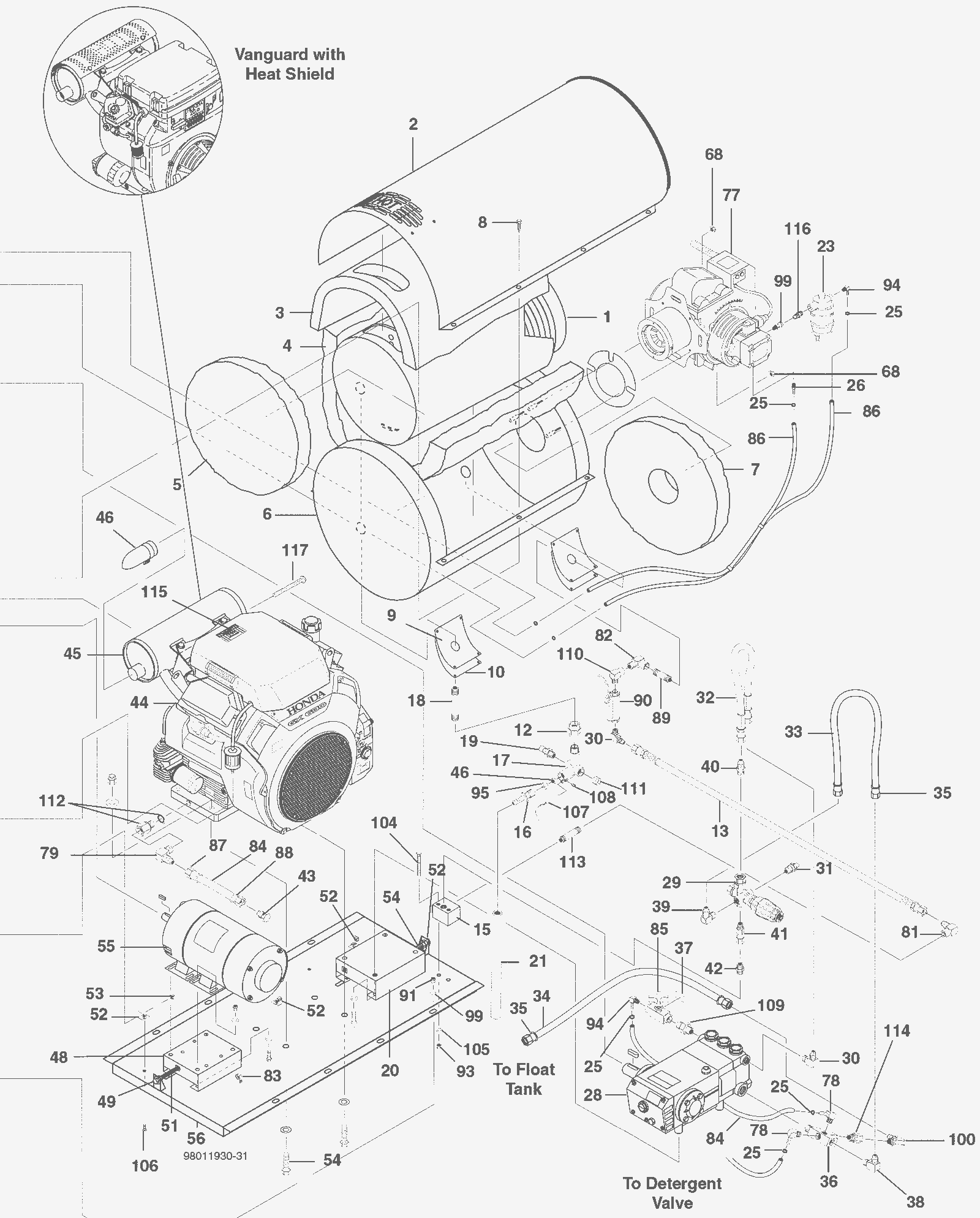

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
252-1528
|
Rodless coil |
1 |
|
|
2a |
252-1875
|
Top wrap |
1 |
(includes 2b) |
|
2b |
252-1089
|
Trim |
2 feet |
|
|
3 |
252-1877
|
Insulation 28 x 24 inch |
1 |
|
|
4 |
252-1878
|
Insulation 24 x 57 inch |
1 |
|
|
5 |
252-1879
|
Burner head insulation without hole |
1 |
|
|
6a |
252-1880
|
Bottom wrap weldment |
1 |
(includes 6b) |
|
6b |
252-1881
|
Bolt 3/8-16 x 1 3/4 |
2 |
|
|
7 |
252-1882
|
Burner head insulation with hole |
1 |
|
|
8 |
999-1531
|
Screw 3/8-16 x 1 hex washer head zinc plated |
8 |
|
|
9 |
252-1883
|
Burner plate gasket |
2 |
|
|
10a |
252-1884
|
Insulation retaining plate |
2 |
(includes 10b) |
|
10b |
213-0071
|
Screw #10 x 1/2 hex head stainless steel |
8 |
|
|
12 |
252-1886
|
Pipe cap |
1 |
|
|
13 |
252-1529
|
2 wire pressure hose 3/8 x 48 inch |
1 |
|
|
15 |
252-1887
|
Unloader block |
1 |
|
|
16 |
352-1027
|
3/8 inch hose barb |
1 |
|
|
17 |
252-1705
|
Discharge manifold |
1 |
|
|
18 |
252-1888
|
Pipe nipple |
1 |
|
|
19 |
252-1507
|
3/8 inch coupler with male threads |
1 |
|
|
20 |
252-1889
|
Pump rail |
1 |
|
|
21 |
252-1706
|
Conduit hose |
2 feet |
|
|
23 |
225-0450
|
Fuel filter |
1 |
|
|
25 |
252-1109
|
Hose clamp |
4 |
|
|
26 |
252-1890
|
Hosebarb |
1 |
|
|
28 |
252-1081
|
Pump |
1 |
|
|
29 |
225-0456
|
Unloader |
1 |
|
|
30 |
252-1637
|
Nipple 1/2 x 3/8 inch |
3 |
|
|
31 |
252-1113
|
Pump protector |
1 |
|
|
32 |
252-1893
|
16 inch pressure hose |
1 |
|
|
33 |
252-1597
|
Push on hose (sold by the inch) |
17 inches |
|
|
34 |
252-1597
|
Push on hose (sold by the inch) |
2 feet |
|
|
35a |
252-1894
|
Push on swivel |
4 |
(includes 35b-35d) |
|
35b |
252-1895
|
Snubbing washer |
3 |
|
|
35c |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
3 |
|
|
35d |
999-0034
|
Washer 3/8 split lock plain finish |
3 |
|
|
36 |
252-1896
|
Street tee |
1 |
|
|
37 |
252-1759
|
Open for steam decal |
1 |
|
|
38 |
252-1599
|
Elbow 1/2 x 1/2 inch |
1 |
|
|
39 |
252-1897
|
90 degree elbow |
1 |
|
|
40 |
252-1637
|
Nipple 1/2 x 3/8 inch |
1 |
|
|
41 |
252-1459
|
Female swivel |
1 |
|
|
42 |
252-1898
|
Pipe nipple |
1 |
|
|
43 |
252-1129
|
1/2 inch flare plug |
1 |
|
|
44 |
252-0298
|
ENGINE, HONDA GX630R, NO THROTTLE |
1 |
|
|
45a |
352-1028
|
Right muffler (Honda) |
1 |
(includes 45b-45d) |
|
45b |
252-1903
|
Bolt M8 x 20mm flange |
2 |
|
|
45c |
252-1904
|
Muffler |
1 |
|
|
45d |
999-1532
|
Screw 1/4-20 x 1/2 hex head stainless steel |
4 |
|
|
46a |
252-1985
|
Rupture disk |
1 |
(includes 46c-46j) |
|
46b |
252-1908
|
Exhaust deflector |
1 |
|
|
46c |
252-1909
|
Screw #10 tek |
1 |
|
|
46d |
252-1647
|
Screw 1/4 x 1/2 whiz loc |
5 |
|
|
46e |
252-1936
|
Muffler guard |
1 |
|
|
46f |
252-1910
|
Brace |
2 |
|
|
46g |
252-1911
|
Heat shield |
1 |
|
|
46h |
252-1140
|
Nut 1/4 flange zinc |
3 |
|
|
46i |
252-1629
|
Cage nut |
2 |
|
|
46j |
252-0004
|
Key shaft |
1 |
|
|
47 |
252-1142
|
Belt guard label |
2 |
(1 for short) |
|
48a |
252-1913
|
Pump rail |
1 |
(includes 48b-48d) |
|
48b |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
7 |
|
|
48c |
252-1895
|
Snubbing washer |
3 |
|
|
48d |
999-0034
|
Washer 3/8 split lock plain finish |
3 |
(with generator) |
|
49a |
252-1914
|
Belt tension bracket |
1 |
(2 with generator) (includes 49b-49c) |
|
49b |
273-9720
|
Nut 5/16 |
2 |
(4 with generator) |
|
49c |
252-1915
|
Bolt 5/16 |
4 |
|
|
49d |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
(4 with generator) |
|
51a |
252-1916
|
Bolt 3/8 x 3 1/2 |
1 |
(2 with generator) (includes 51b-51c) |
|
51b |
999-0959
|
Nut 3/8-16 hex |
4 |
|
|
51c |
999-0120
|
Washer 3/8 SAE flat |
2 |
(4 with generator) |
|
52a |
252-1917
|
Belt guard tab |
3 |
(4 with generator) (includes 52b) |
|
52b |
252-1154
|
Screw 1/4 inch x 34 inch hex head |
6 |
(7 with generator) |
|
53 |
252-1629
|
Cage nut |
10 |
(11 with generator) |
|
54a |
999-0550
|
Bolt 3/8-16 x 2 hex head stainless steel |
4 |
(includes 54c-54f) |
|
54b |
999-0178
|
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
4 |
|
|
54c |
999-0120
|
Washer 3/8 SAE flat |
9 |
|
|
54d |
252-1158
|
Nut 3/8' inch ESNA |
4 |
|
|
54e |
273-9720
|
Nut 5/16 |
4 |
|
|
54f |
999-0024
|
Washer 5/16 flat stainless steel |
9 |
|
|
55a |
252-1918
|
Generator |
1 |
(includes 55b) |
|
55b |
352-1029
|
Molded cord |
1 |
|
|
56 |
252-1162
|
Sub-frame weldment |
1 |
|
|
68 |
252-1177
|
Nut 3/8 inch Flange whiz lock |
4 |
|
|
85 |
252-1220
|
Flow contol w/metering valve |
1 |
|
|
77a |
352-1030
|
Burner assembly |
1 |
(includes 77b-77c) |
|
77b |
252-1923
|
16/4 cord (sold by the foot) |
3.66 feet |
|
|
77c |
252-1181
|
Strain relief, 1/2 inch |
1 |
|
|
78 |
252-1739
|
90 degree hosebarb |
2 |
|
|
79 |
252-0264
|
Elbow |
1 |
|
|
81 |
252-1713
|
90 degree elbow |
1 |
|
|
82 |
252-1925
|
Street elbow |
1 |
|
|
83 |
252-1188
|
Ro-clip clamp 1/2 inch |
1 |
|
|
84 |
252-1727
|
Push on hose |
2 feet |
|
|
86 |
252-1727
|
Push on hose |
2 |
|
|
87 |
252-1894
|
Push on swivel |
1 |
|
|
88 |
252-1751
|
Push on swivel |
1 |
|
|
89 |
252-1729
|
Nipple |
1 |
|
|
90 |
225-0424
|
Flow switch |
1 |
|
|
91 |
273-9720
|
Nut 5/16 |
6 |
|
|
93 |
252-1158
|
Nut 3/8' inch ESNA |
2 |
|
|
94 |
352-1031
|
Hose barb |
1 |
|
|
95 |
352-1032
|
Rupture disk spacer |
1 |
|
|
99 |
352-1033
|
1/4 inch adapter |
1 |
|
|
100 |
252-1192
|
Male elbow 3/4 inch x 1/2 inch |
1 |
|
|
104 |
252-1931
|
Bolt 3/8 x 2 1/2 zinc plated |
2 |
|
|
105 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
106 |
252-1647
|
Screw 1/4 x 1/2 whiz loc |
2 |
|
|
107 |
252-1932
|
Thermostat |
1 |
|
|
108 |
999-0448
|
Screw 10-24 x 1/4 cup point socket set alloy plain finish |
1 |
|
|
109 |
252-1934
|
Nipple |
1 |
|
|
110 |
252-1623
|
3/8 inch street elbow |
1 |
|
|
111 |
252-1935
|
Plug |
1 |
|
|
112 |
352-1034
|
Adapter (Honda) |
1 |
|
|
113 |
352-1003
|
Galvanized nipple 1/2 inch x 4 inch |
1 |
|
|
114 |
252-1636
|
Brass adapter |
1 |
|
|
115 |
252-1701
|
Hot warning decal |
1 |
|
|
116 |
352-1035
|
1/4 inch nipple |
1 |
|
|
117 |
352-1036
|
Screw pan head |
1 |
|
|
