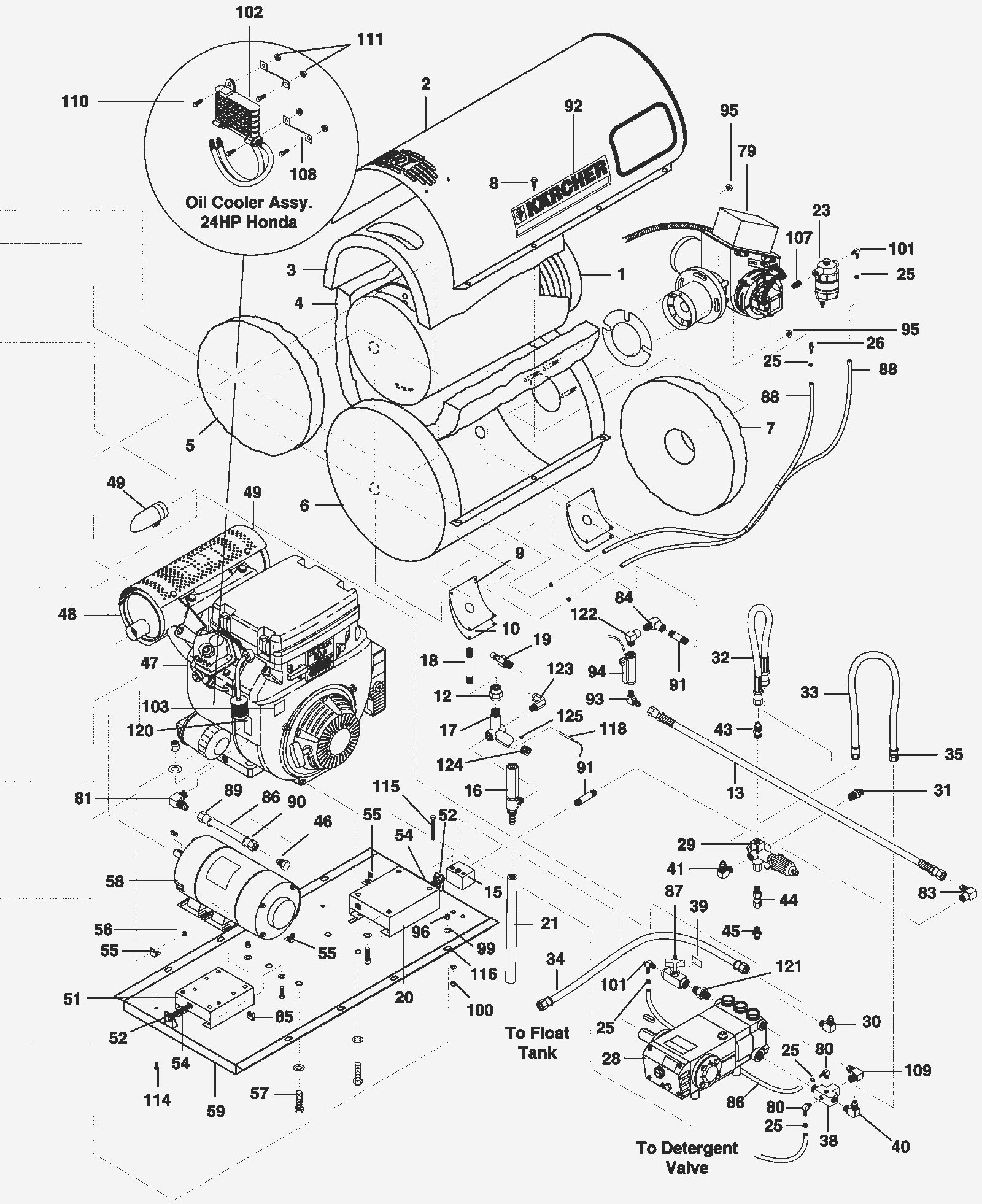

Engine Assembly

#PartDescription ReqNotesAvailability
1 252-1528 Rodless coil 1
2a 252-1875 Top wrap 1
2b 252-1089 Trim 6 ft
3 252-1877 Insulation 28 x 24 inch 1
4 252-1878 Insulation 24 x 57 inch 1
5 252-1879 Burner head insulation without hole 1
6a 252-1880 Bottom wrap weldment 1
6b 252-1881 Bolt 3/8-16 x 1 3/4 2
7 252-1882 Burner head insulation with hole 1
8 999-1531 Screw 3/8-16 x 1 hex washer head zinc plated 8
9 252-1883 Burner plate gasket 2
10a 252-1884 Insulation retaining plate 2
10b 213-0071 Screw #10 x 1/2 hex head stainless steel 8
12 252-1886 Pipe cap 1
13 252-1529 2 wire pressure hose 3/8 x 48 inch 1
15 252-1887 Unloader block 1
16 225-0446 Safety relief valve 1
17 252-1705 Discharge manifold 1
18 252-1888 Pipe nipple 1
19 252-1507 3/8 inch coupler with male threads 1 (from machine to hose)
20 252-1889 Pump rail 1
21 252-1706 Conduit hose 2 ft
23 225-0450 Fuel filter 1
26 252-1890 Hosebarb 1
28a 252-1891 Pump 1 (600.0 model)
28b 252-1081 Pump 1 (601.0, 602.0, 603.0, 604.0, 605.0 and 606.0 models)
28c 273-7784 Pump 1 Model 1.110-083.0
29 225-0456 Unloader 1
30 252-0264 Elbow 1
31 252-1113 Pump protector 1
32 252-1893 16 inch pressure hose 1
33 252-1597 Push on hose (sold by the inch) 17 in Order 2 ft
34 252-1597 Push on hose (sold by the inch) 2 ft
35a 252-1894 Push on swivel 4
35b 252-1895 Snubbing washer 3 (hardware for swivel)
35c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 3 (hardware for swivel)
35d 999-0034 Washer 3/8 split lock plain finish 3 (hardware for swivel)
38 252-1896 Street tee 1
39 252-1759 Open for steam decal 1
40 252-1599 Elbow 1/2 x 1/2 inch 1
41 252-1897 90 degree elbow 1
43 252-1637 Nipple 1/2 x 3/8 inch 1
44 252-1459 Female swivel 1
45 252-1898 Pipe nipple 1
46a 252-1129 1/2 inch flare plug 1 (601.0, 602.0, 603.0, 604.0, 605.0 and 606.0 models)
46b 252-1752 Plug 1 (600.0 model)
47a 252-1899 13HP engine 1 (600.0 model)
47b 252-1900 16HP engine 1 (601.0 and 602.0 models)
47c 252-1859 20HP engine 1 (603.0 and 604.0 models)
47d 252-1901 24HP engine 1 (605.0 and 606.0 models)
47d 252-0298 ENGINE, HONDA GX630R, NO THROTTLE 1 Model 1.103-828.0
48a 252-1902 Muffler 1 (Honda 20HP and 24HP)
48b 252-1903 Bolt M8 x 20mm flange 2 (Honda 20HP and 24HP)
48c 252-1904 Muffler 1 (Vanguard)
48d 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 4 (Vanguard)
49a 252-1906 Heat shield 1 (Honda 20HP and 24HP)
49b 252-1907 Screw M6 x 20mm button head 4 (Honda 20HP and 24HP)
49c 252-1908 Exhaust deflector 1 (Honda 20HP and 24HP)
49d 252-1909 Screw #10 tek 1 (Honda 20HP and 24HP)
49e 252-1647 Screw 1/4 x 1/2 whiz loc 5 (Vanguard)
49f 252-1936 Muffler guard 1 (Vanguard)
49g 252-1910 Brace 2 (Vanguard)
49h 252-1911 Heat shield 1 (Vanguard)
49i 252-1140 Nut 1/4 flange zinc 3 (Vanguard)
49j 252-1629 Cage nut 2 (Vanguard)
49k 252-0004 Key shaft 1 (both engines)
51a 252-1913 Pump rail 1 (with generator)
51b 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 7 (with generator)
51c 252-1895 Snubbing washer 3 (with generator)
51d 999-0034 Washer 3/8 split lock plain finish 3 (with generator)
52a 252-1914 Belt tension bracket 1 (without generator)
52b 252-1914 Belt tension bracket 2 (with generator)
52c 252-1915 Bolt 5/16 1 (after 2001)
52d 273-9720 Nut 5/16 4 (with generator)
52e 252-1915 Bolt 5/16 2 (without generator)
52f 252-1915 Bolt 5/16 4 (with generator)
52g 999-0024 Washer 5/16 flat stainless steel 2 (without generator)
52h 999-0024 Washer 5/16 flat stainless steel 4 (with generator)
54a 252-1916 Bolt 3/8 x 3 1/2 1 (without generator)
54b 252-1916 Bolt 3/8 x 3 1/2 2 (with generator)
54c 999-0959 Nut 3/8-16 hex 2 (without generator)
54d 999-0959 Nut 3/8-16 hex 4 (with generator)
54e 999-0120 Washer 3/8 SAE flat 2 (without generator)
54f 999-0120 Washer 3/8 SAE flat 4 (with generator)
55a 252-1917 Belt guard tab 3 (without generator)
55b 252-1917 Belt guard tab 4 (with generator)
55c 252-1154 Screw 1/4 inch x 34 inch hex head 6 (without generator)
55d 252-1154 Screw 1/4 inch x 34 inch hex head 7 (with generator)
56a 252-1629 Cage nut 10 (without generator)
56b 252-1629 Cage nut 11 (with generator)
57a 999-0550 Bolt 3/8-16 x 2 hex head stainless steel 4 (Honda engine)
57b 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 4 (Vanguard engine)
57c 999-0120 Washer 3/8 SAE flat 9 (Honda engine)
57d 252-1158 Nut 3/8' inch ESNA 4 (Honda engine)
57e 273-9720 Nut 5/16 4 (Vanguard engine)
57f 999-0024 Washer 5/16 flat stainless steel 9 (Vanguard engine)
58a 252-1918 Generator 1 (E/G models)
58b 352-1029 Molded cord 1 (for generator)
59 252-1162 Sub-frame weldment 1
79a 252-1921 Burner assembly 1 (600.0, 601.0, 603.0 and 605.0 models)
79b 252-1922 Burner assembly 1 (602.0, 604.0 and 606.0 models)
79c 252-1923 16/4 cord (sold by the foot) 4 ft (602.0, 604.0 and 606.0 models)
79d 252-1181 Strain relief, 1/2 inch 1 (602.0, 604.0 and 606.0 models)
80 252-1739 90 degree hosebarb 2
81a 252-1924 Elbow 1 (603.0, 604.0, 605.0 and 606.0 models)
81b 252-0264 Elbow 1 (601.0 and 602.0 models)
81c 252-0079 Oil drain plug 1
83 252-1713 90 degree elbow 1
84 252-1925 Street elbow 1
85 252-1188 Ro-clip clamp 1/2 inch 1 (all models except 600.0)
86 252-1727 Push on hose 2 ft
87 252-1220 Flow contol w/metering valve 1
88 252-1727 Push on hose 10 ft
89 252-1894 Push on swivel 1 (all models except 600.0)
90 252-1751 Push on swivel 1 (600.0 model)
91 252-1729 Nipple 2
92 252-1927 Stripe decal 1
93 252-0264 Elbow 1
94 225-0424 Flow switch 1
95 252-1177 Nut 3/8 inch Flange whiz lock 3
96 273-9720 Nut 5/16 12
99 999-0024 Washer 5/16 flat stainless steel 12
100 252-1158 Nut 3/8' inch ESNA 2
101 252-1768 Elbow 1
102 252-1928 Bolt M6 x 12mm socket head 2 (605.0 and 606.0 models)
103 252-1769 Decal 1
108 252-1206 24 HP Honda bracket oil cooler 2 (606.0 model)
109 252-1192 Male elbow 3/4 inch x 1/2 inch 1
110 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2 (606.0 model)
111 252-1140 Nut 1/4 flange zinc 2 (606.0 model)
114 252-1873 Screw 1/4 x 1/2 thumb 4
115 252-1931 Bolt 3/8 x 2 1/2 zinc plated 2
116 999-0120 Washer 3/8 SAE flat 2
118 252-1932 Thermostat 1
120 252-1933 EPA decal 1
121 252-1934 Nipple 1
122 252-1623 3/8 inch street elbow 1
123 252-1623 3/8 inch street elbow 1
124 252-1935 Plug 1
125 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish 1
N/S 177-0521 Combination switch assembly for GX630 1
