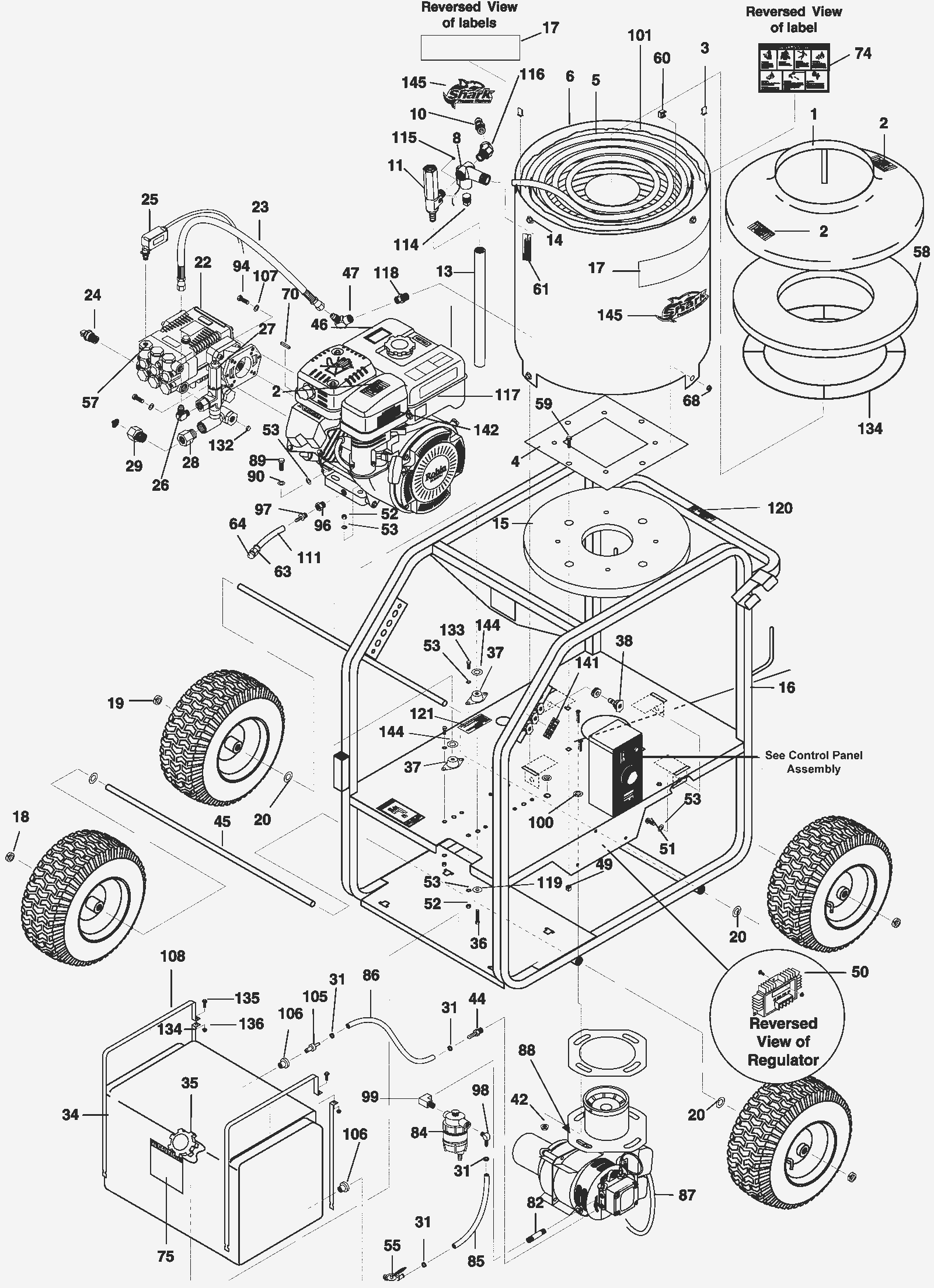

Frame and Engine Assembly - Models 554.0 and 555.0

#PartDescription ReqNotesAvailability
1 252-1700 Tank head assembly 1
2 252-1701 Hot warning decal 3
3 252-1702 Retaining clip 4
4 252-0008 Burner insulation retainer (OBSOLETE) 1
5 252-1778 Coil assembly 1
6 252-1779 Outer coil wrap 1
10 252-1507 3/8 inch coupler with male threads 1
11 225-0446 Safety relief valve 1
13 252-1706 Conduit hose 3 ft
14 252-1154 Screw 1/4 inch x 34 inch hex head 8
15 252-1708 Bottom insulation 1
16 252-1780 Frame assembly 1
17 252-1710 Decal 2
18 252-0270 Wheel assembly 4
19 252-0015 Collar 5/8 inch 4
20 999-0349 Washer 5/8 SAE flat 4
22a 252-1781 Pump (KG2530G) 1 (554.0 model)
22b 252-1782 Pump (KG3030G) 1 (555.0 model)
23 252-1737 Hose 3/8 x 29 inch 1
24 252-1546 Pump protector 1
25 252-1112 Temperature limit switch 1 (non steam option)
26 252-0264 Elbow 1
27 252-1738 Unloader 1
28 252-1602 1/2 inch brass elbow 1
29 252-1260 Swivel 1/2 inch MP x 3/4 inch GHF w/strainer 1
31 252-1109 Hose clamp 4
34 252-1165 6 gallon burner diesel tank 1
35 252-1544 Fuel cap 1
36 252-1783 Screw 5/16 x 2 3/4 whiz loc 2
37 252-1784 Vibration mount 4
38 273-9436 Grommet 4
42 252-1177 Nut 3/8 inch Flange whiz lock 4
44 252-1712 Hosebarb 1
45 252-1785 Axle 2
46 252-1211 Cool engine danger label 1
47 252-1786 90 degree elbow 1
49 252-0076 Nut 3/8 inch x 12 gauge, cage 4
50a 225-0448 Voltage regulator 1 (pull start)
50b 225-0449 Rectifier assembly 1 (electric start)
51 252-1715 Bolt 5/16 x 3/4 inch 14
52 273-9720 Nut 5/16 10
53 999-0024 Washer 5/16 flat stainless steel 28
55 252-1747 Shut-off valve 1
57 252-1748 Valve cap with port 1
58 252-1718 Tank head insulation 1
59 252-1719 Screw 3/8 x 1 1/4 whiz loc 4
60 252-0036 Nut 1/4 inch x 16 gauge cage 4
61 252-1721 Hot water outlet decal 1
63 252-1751 Push on swivel 1
64 252-1752 Plug 1
68 252-1722 Nut 5/16 whiz loc flange 8
70 252-1787 Square keyway 1
74 252-1724 Warning decal 1
75 252-1167 Diesel caution label 1
82 252-1726 Nipple 1/4 x 2 inch 1
84 225-0450 Fuel filter 1
85 252-1727 Push on hose 9 in
86 252-1727 Push on hose 11 in
87 252-1728 12/3 internal service cord 32 in
88 252-1181 Strain relief, 1/2 inch 1
89 252-1788 Bolt 5/16 x 1 1/2 2
90 999-0028 Washer 5/16 split lock plain finish 2
94 252-1789 Bolt 5/16 x 24 3/4 4
96 252-0047 Reducer M14 x 1/4 inch 1
97 252-1712 Hosebarb 1
98 252-1768 Elbow 1
99 252-1731 Street elbow 1
100 252-1791 Snap bushing 1
101 252-1792 Blanket insulation 1
105 252-1732 Double hosebarb 1
106 252-1102 Rubber bushing 2
107 999-0028 Washer 5/16 split lock plain finish 4
108 252-1767 Long fuel tank strap 2
111 252-1727 Push on hose 7 in
114 252-1733 Square head plug 1
115 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish 1
116 252-1608 45 degree elbow 1
117 252-1769 Decal 1
118 252-1793 Nipple 1
119 252-1794 Fender washer 2
120 252-0057 Tip over hazard decal 1
121 252-0094 Cleaning solution decal 1
132 252-1774 Short fuel tank strap 2
133 252-1176 Screw 3/8 inch x 3/4 inch HH NC 2
134 252-1774 Short fuel tank strap 2
135 252-1176 Screw 3/8 inch x 3/4 inch HH NC 2
136 252-1177 Nut 3/8 inch Flange whiz lock 2
141 252-1795 Nozzle decal 1
142 252-1777 Regulation decal 1
144 999-1213 Washer 5/16 x 1 1/2 fender stainless steel 4
145 252-1735 Shark decal 2
N/S 252-1964 Solenoid valve 1
N/S 252-0279 Fuel pump
