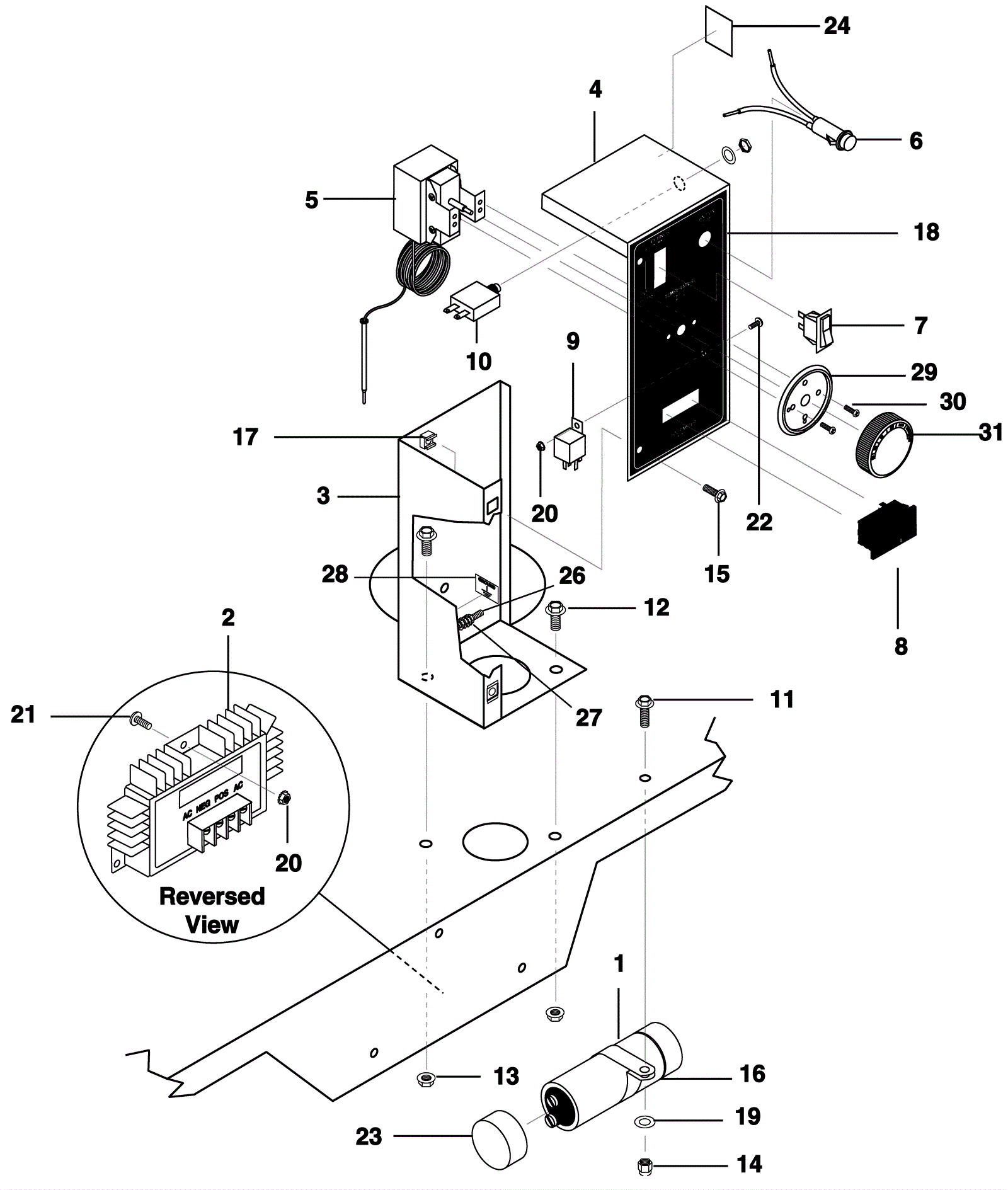

SGP-302517 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
N/S 252-0279 Fuel pump $209.00 1 usually ships 10-11 days
1 252-0104 Run capacitor $68.86 1 usually ships 14-22 days
2 225-0448 Voltage regulator $368.40 1 ships same day
3 252-1641 Electrical box $214.50 1 usually ships 1-5 days
4 252-0106 Electrical box cover assembly $89.45 1 usually ships 1-5 days
5a 225-0451 Thermostat $29.26 1 usually ships 10-11 days
5b 252-1139 Corrugated 1/4 inch conduit $2.26 36 in usually ships 1-5 days
6 252-1191 Green 12V indicator light (OBSOLETE) $13.20 1 usually ships 14-22 days
7 252-1199 Curvette switch (OBSOLETE) $5.12 1 usually ships 14-22 days
8 252-1644 Hour meter $75.33 1 usually ships 1-5 days
9 225-0453 12V relay $32.56 1 usually ships 10-11 days
11 252-0108 Screw 1/4 inch x 1-1/4 inch hex $2.20 1 usually ships 1-5 days
12 252-1647 Screw 1/4 x 1/2 whiz loc $0.99 2 usually ships 1-5 days
13 252-1140 Nut 1/4 flange zinc $0.99 2 usually ships 1-5 days
14 252-0109 Nut 1/4 inch ESNA $0.99 1 usually ships 1-5 days
15 999-1275 Screw 10-32 x 3/4 hex head stainless steel $1.23 2 ships same day
16 252-0111 Hose clamp $5.59 1 usually ships 1-5 days
17 252-0112 Nut cage 10/32 inch x 16 gauge $1.34 2 usually ships 1-5 days
18 252-0113 Control panel label $10.82 1 usually ships 1-5 days
19 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
20 252-1222 Nut 10/32 keps $0.99 4 usually ships 1-5 days
21 252-1654 Screw 10-32 x 3/4 $0.99 3 usually ships 1-5 days
22 252-0114 Screw 10/32 inch x 1/2 inch $0.99 1 usually ships 1-5 days
23 252-0115 Capacitor cap $4.09 1 usually ships 14-22 days
24 252-0116 Reset label $1.20 1 usually ships 1-5 days
26 252-1227 Screw 10-32 x 1 1/4 inch ground post $1.90 1 usually ships 1-5 days
27 252-1222 Nut 10/32 keps $0.99 4 usually ships 1-5 days
28 252-1659 Ground decal $0.99 1 usually ships 1-5 days
29 252-1660 Thermostat mounting plate $1.85 1 usually ships 10-11 days
30 252-1661 Screw M4 x 6mm $0.99 4 usually ships 10-11 days
31 252-1662 Thermostat dial $3.04 1 usually ships 10-11 days
