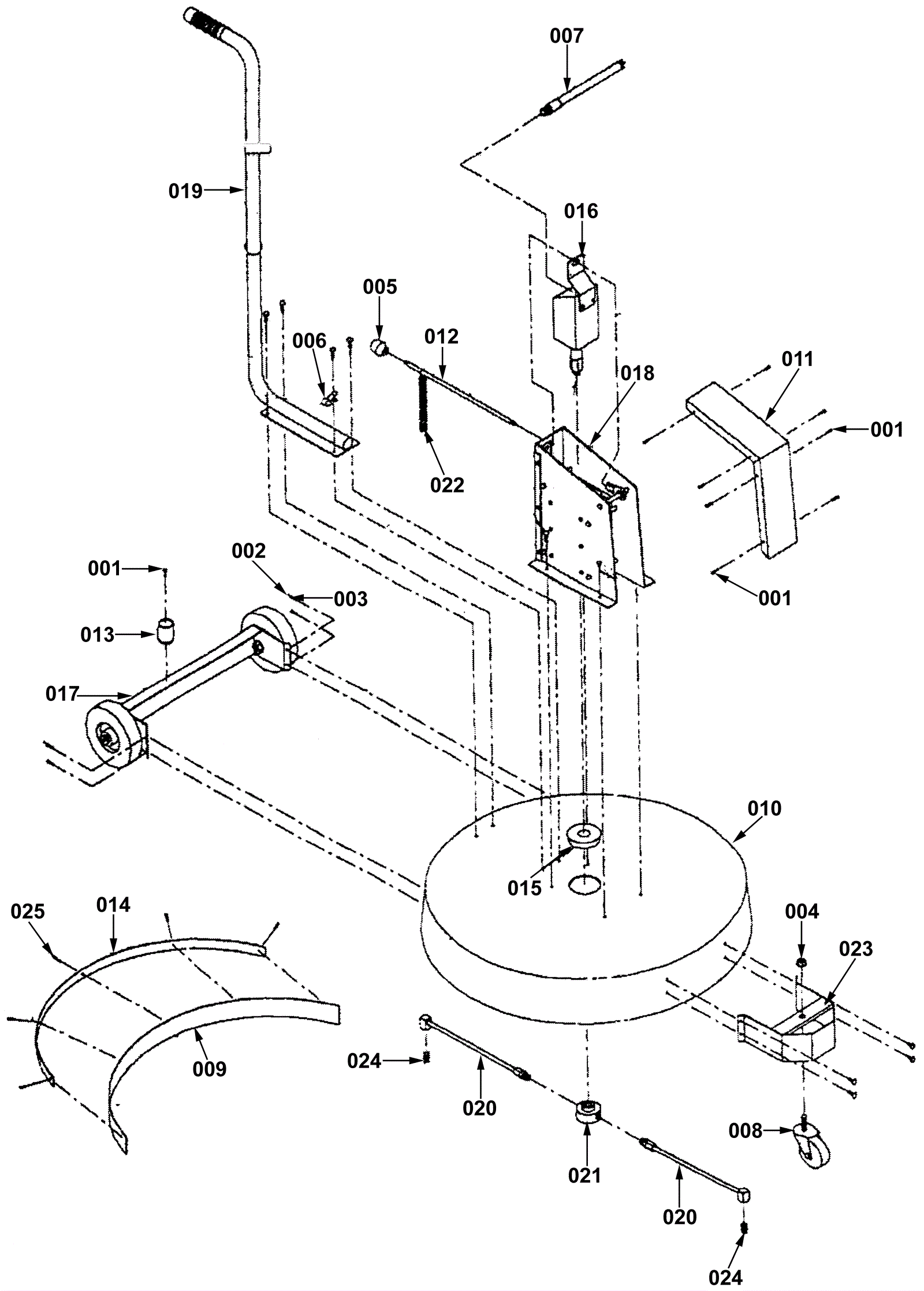

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
252-0215
|
Screw #10 thread cutting |
9 |
|
|
002 |
999-0320
|
Screw 1/4-20 x 3/4 socket head alloy plain finish |
16 |
|
|
003 |
252-0217
|
Nut 1/4 nylock |
16 |
|
|
004 |
252-0218
|
Nut 1/2 serrated whizlock |
1 |
|
|
005 |
252-0219
|
Knob |
1 |
|
|
006 |
252-0220
|
Clamp |
1 |
|
|
007 |
252-0221
|
Hose 1/4 x 60 |
1 |
|
|
008 |
252-0222
|
Caster (3 inch) |
1 |
|
|
009 |
252-0223
|
Vinyl edge |
1 |
|
|
010 |
252-0224
|
Spinner deck |
1 |
|
|
011 |
252-0225
|
Housing cover |
1 |
|
|
012 |
252-0226
|
Shift rod |
1 |
|
|
013 |
252-0227
|
Gun holder |
1 |
|
|
014 |
252-0228
|
Vinyl edging guard |
1 |
|
|
015 |
252-0229
|
Plastic plug |
1 |
|
|
016 |
252-0230
|
Union assembly |
1 |
|
|
017 |
252-0231
|
Wheel assembly |
1 |
|
|
018 |
252-0232
|
Housing assembly |
1 |
|
|
019 |
252-0233
|
Handle assembly |
1 |
|
|
020 |
252-0234
|
Spinner arm assembly |
2 |
|
|
021 |
252-0240
|
Manifold (3 port) |
1 |
|
|
023 |
252-0237
|
Caster mount weldment |
1 |
|
|
024 |
252-0238
|
Jet (#1503) |
2 |
|
|
025 |
252-0239
|
Pop rivet |
5 |
|
|
