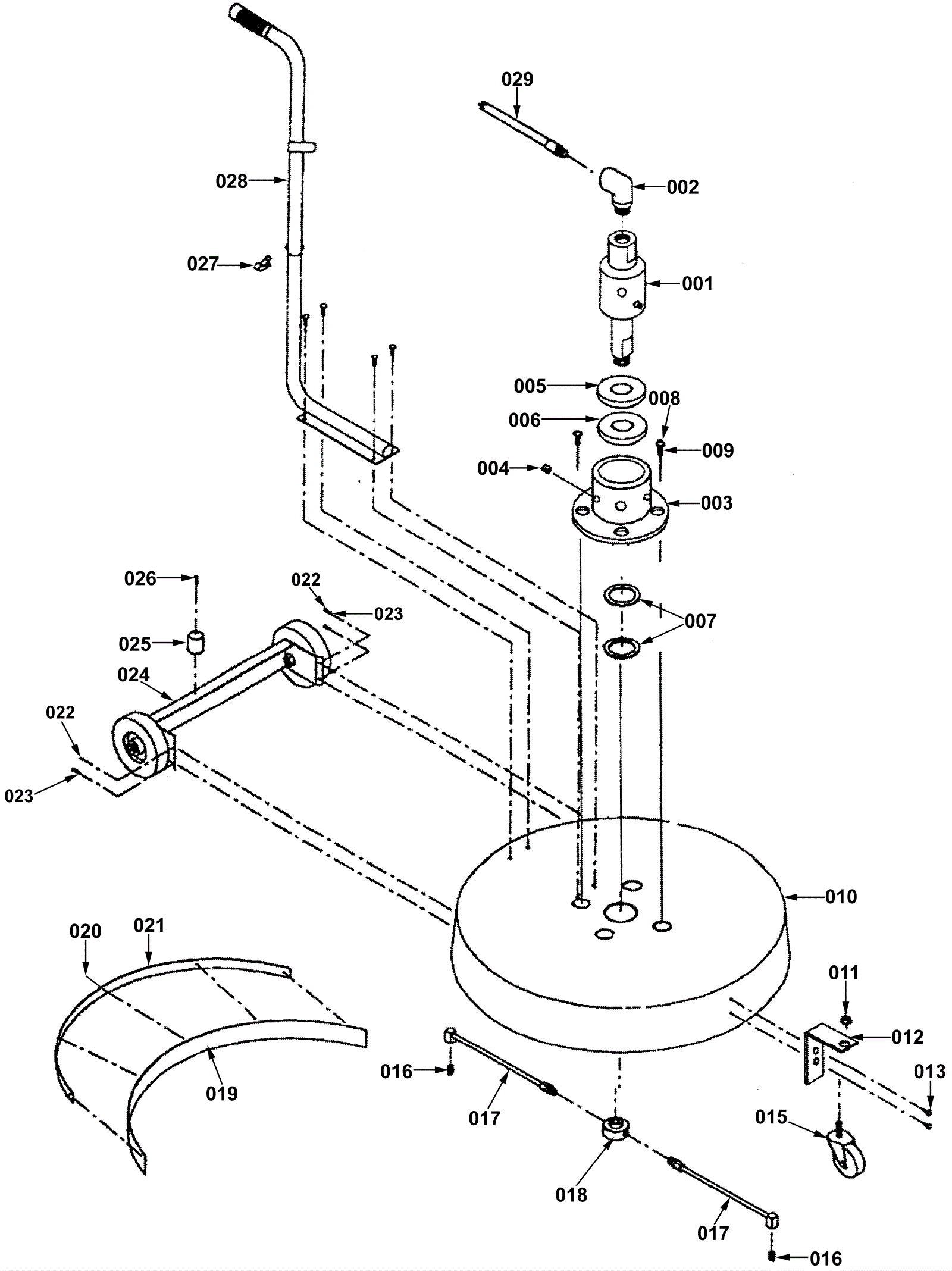

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
252-0241
|
Deublin spinner union |
1 |
|
|
002 |
252-0242
|
Elbow 3/8 inch x 90 degree |
1 |
|
|
003 |
252-0243
|
Union mount assembly |
1 |
(includes items 005 and 006) |
|
004 |
252-0244
|
Set screw |
3 |
|
|
005 |
252-0245
|
Mounting spacer |
1 |
|
|
006 |
252-0246
|
Gasket |
1 |
|
|
007 |
252-0247
|
Brass washer |
2 |
|
|
008 |
252-0248
|
Bolt 3/8 inch x 1 inch |
4 |
|
|
009 |
252-0249
|
Nut 3/8 inch - 16 nylock |
4 |
|
|
010 |
252-0250
|
Spinner deck 24 inch |
1 |
|
|
011 |
252-0218
|
Nut 1/2 serrated whizlock |
1 |
|
|
012 |
252-0252
|
Front caster bracket |
1 |
|
|
013 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
014 |
252-0217
|
Nut 1/4 nylock |
2 |
|
|
015 |
252-0222
|
Caster (3 inch) |
1 |
|
|
016 |
252-0254
|
Jet (1502.5) |
2 |
|
|
017 |
252-0255
|
Spinner arm assembly 24 inch (OBSOLETE) |
2 |
|
|
018 |
252-0256
|
Manifold (2 port) |
1 |
|
|
019 |
252-0257
|
Vinyl edge |
1 |
|
|
020 |
252-0239
|
Pop rivet |
5 |
|
|
021 |
252-0258
|
Vinyl edge guard |
1 |
|
|
022 |
999-0320
|
Screw 1/4-20 x 3/4 socket head alloy plain finish |
4 |
|
|
023 |
252-0217
|
Nut 1/4 nylock |
4 |
|
|
024 |
252-0259
|
Rear wheel assembly |
1 |
|
|
025 |
252-0227
|
Gun holder |
1 |
|
|
026 |
252-0215
|
Screw #10 thread cutting |
1 |
|
|
027 |
252-0220
|
Clamp |
1 |
|
|
028 |
252-0260
|
Handle assembly |
1 |
|
|
029 |
252-0221
|
Hose 1/4 x 60 |
1 |
|
|
