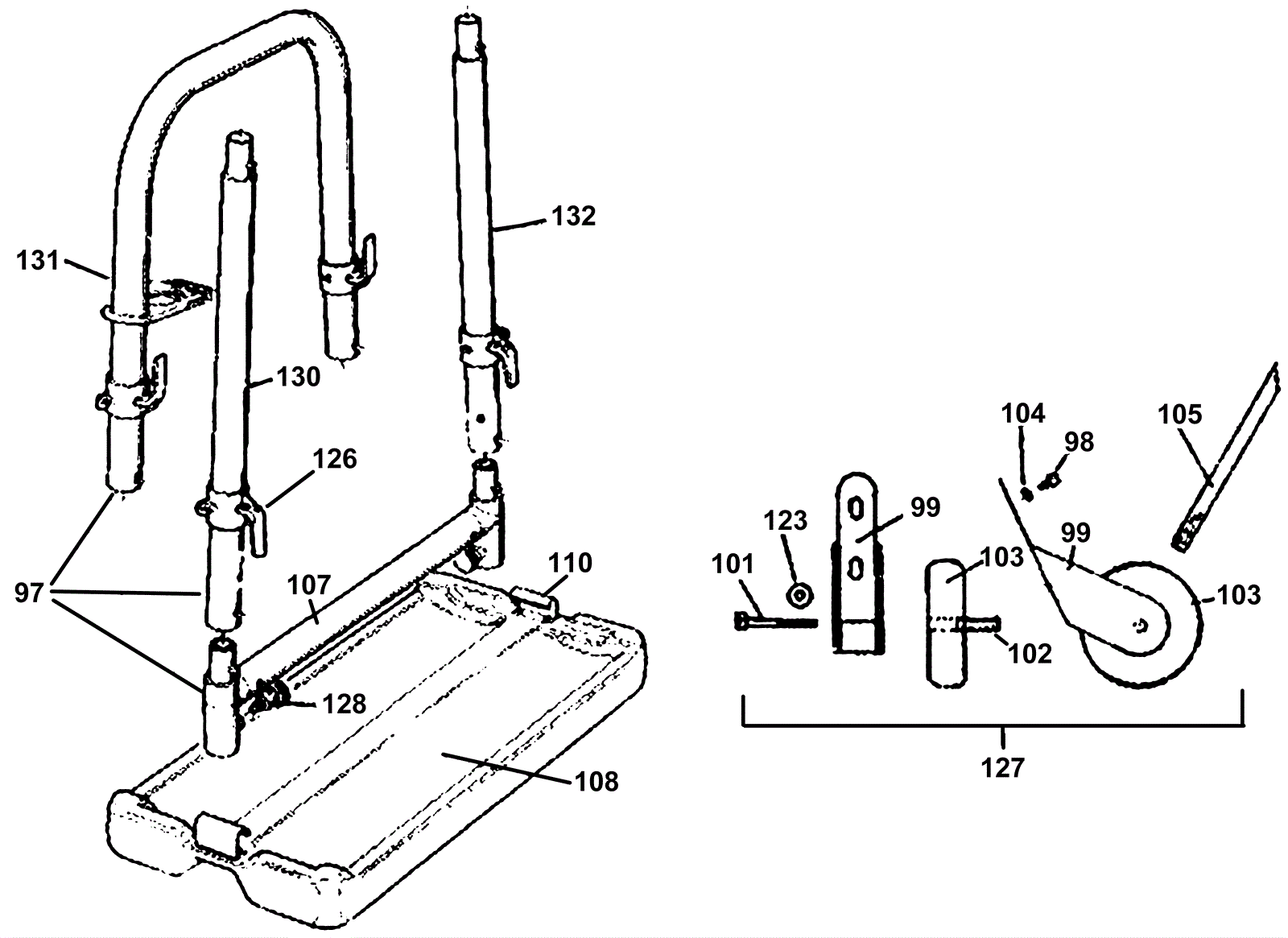

| # | Part | Description |
Req | Notes | Availability |
|---|
97 |
251-1039
|
Handle assembly |
2 |
|
|
98 |
251-1040
|
Screw |
2 |
|
|
99 |
251-1041
|
Wheel bracket |
2 |
|
|
101 |
251-1009
|
Stud |
2 |
|
|
102a |
251-1042
|
Wheel bushing |
2 |
(poly wheel) |
|
102b |
251-1043
|
Wheel bushing |
2 |
(rubber wheel) |
|
103 |
251-1044
|
Transport wheel |
2 |
|
|
104 |
251-1045
|
Wheel bracket washer |
2 |
|
|
105a |
251-1046
|
15 inch wheel bracket stud |
2 |
|
|
105b |
251-1047
|
20 inch wheel bracket stud |
2 |
|
|
107 |
251-1048
|
Crossover tube |
1 |
|
|
108 |
251-2035
|
15 inch storage tray |
1 |
|
|
108 |
251-2036
|
20 inch storage tray |
1 |
|
|
110 |
251-1049
|
Storage tray clip |
1 |
|
|
123 |
251-1050
|
Washer |
2 |
|
|
126 |
251-1051
|
Cable holder swivel |
2 |
|
|
127a |
251-1052
|
15 inch wheel assembly |
2 |
(includes 98-99, 101-105 and 123) |
|
127b |
251-1053
|
20 inch wheel assembly |
2 |
(includes 98-99, 101-105 and 123) |
|
128 |
251-1054
|
Snap-in assembly |
2 |
|
|
130 |
251-1055
|
Left upright handle |
2 |
|
|
131 |
251-1056
|
Handle loop |
1 |
|
|
132 |
251-1057
|
Right upright handle |
2 |
|
|
