TRIO 25

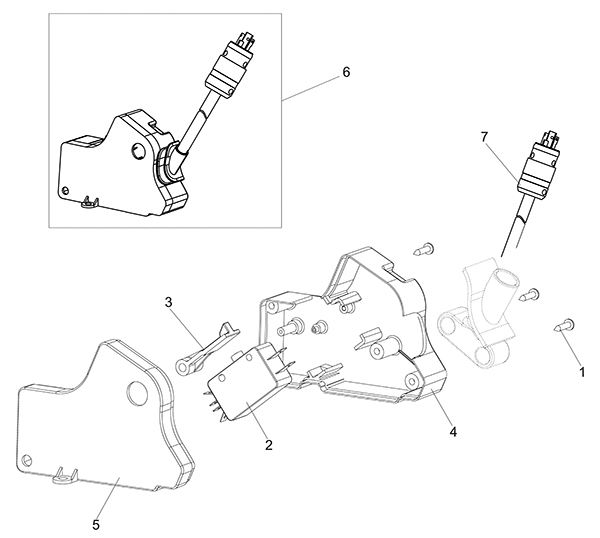

Electrical Box Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
251-2186
Screw M3 x 16mm
$1.00
3
usually ships 7-18 days
2
251-2181
Motor limit switch
$108.33
1
usually ships 7-18 days
3
251-2182
Limit switch lever
$5.00
1
ships same day
4
251-2178
Electrical base housing
$12.92
1
usually ships 7-18 days
5
251-2180
Top electrical housing
$9.17
1
usually ships 7-18 days
6
251-2185
Electrical box assembly
$230.00
1
(includes 1-5, 7)
usually ships 7-18 days
7
251-1150
Pigtail
$129.94
1
usually ships 7-18 days
