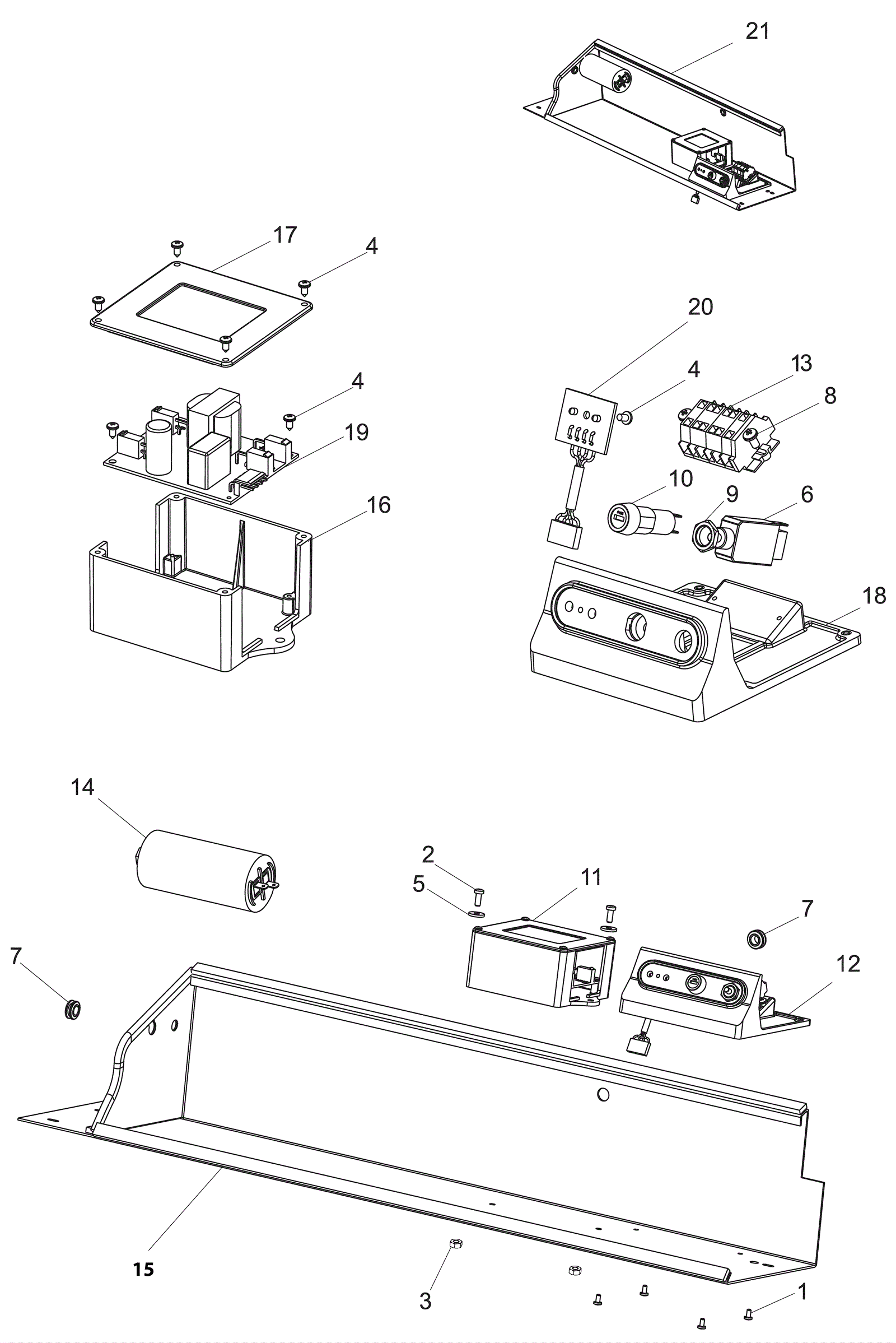

TRIO 25 Electrical Tray Assembly

#PartDescriptionPriceReqNotesAvailability
1 251-2128 Screw M3 x 6mm $1.00 4 usually ships 7-18 days
2 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 2 ships same day
3 251-2160 Nut $1.00 2 usually ships 7-18 days
4 251-2190 Screw $1.00 7 usually ships 7-18 days
5 251-2189 Washer $1.00 2 usually ships 7-18 days
6 N/A Not available Call for price 1 (circuit breaker) usually ships 3-26 days
7 251-2171 Grommet $2.00 2 usually ships 7-18 days
8 251-2133 Screw $1.00 2 usually ships 7-18 days
9 251-2174 Circuit breaker nut $2.00 1 usually ships 7-18 days
10 251-2176 Fuse holder $25.42 1 usually ships 7-18 days
11 251-2192 Control panel assembly $375.00 1 usually ships 7-18 days
12 251-2264 Electrical mounting bracket $131.69 1 usually ships 7-18 days
13 251-2170 Terminal block $19.96 1 usually ships 7-18 days
14 251-1209 Capacitor $81.83 1 usually ships 7-18 days
15 251-1210 Electrical tray Call for price 1 usually ships 7-18 days
16 251-2169 Control panel housing $13.33 1 usually ships 7-18 days
17 251-2168 Control panel top housing $5.83 1 usually ships 7-18 days
18 251-2265 Electrical bracket $25.83 1 usually ships 7-18 days
19 251-2249 PCB control panel $225.45 1 ships same day
20 251-2272 PCB indicator $33.40 1 usually ships 7-18 days
21 251-1211 Electrical tray assembly $751.50 1 (includes 1-20) usually ships 7-18 days
