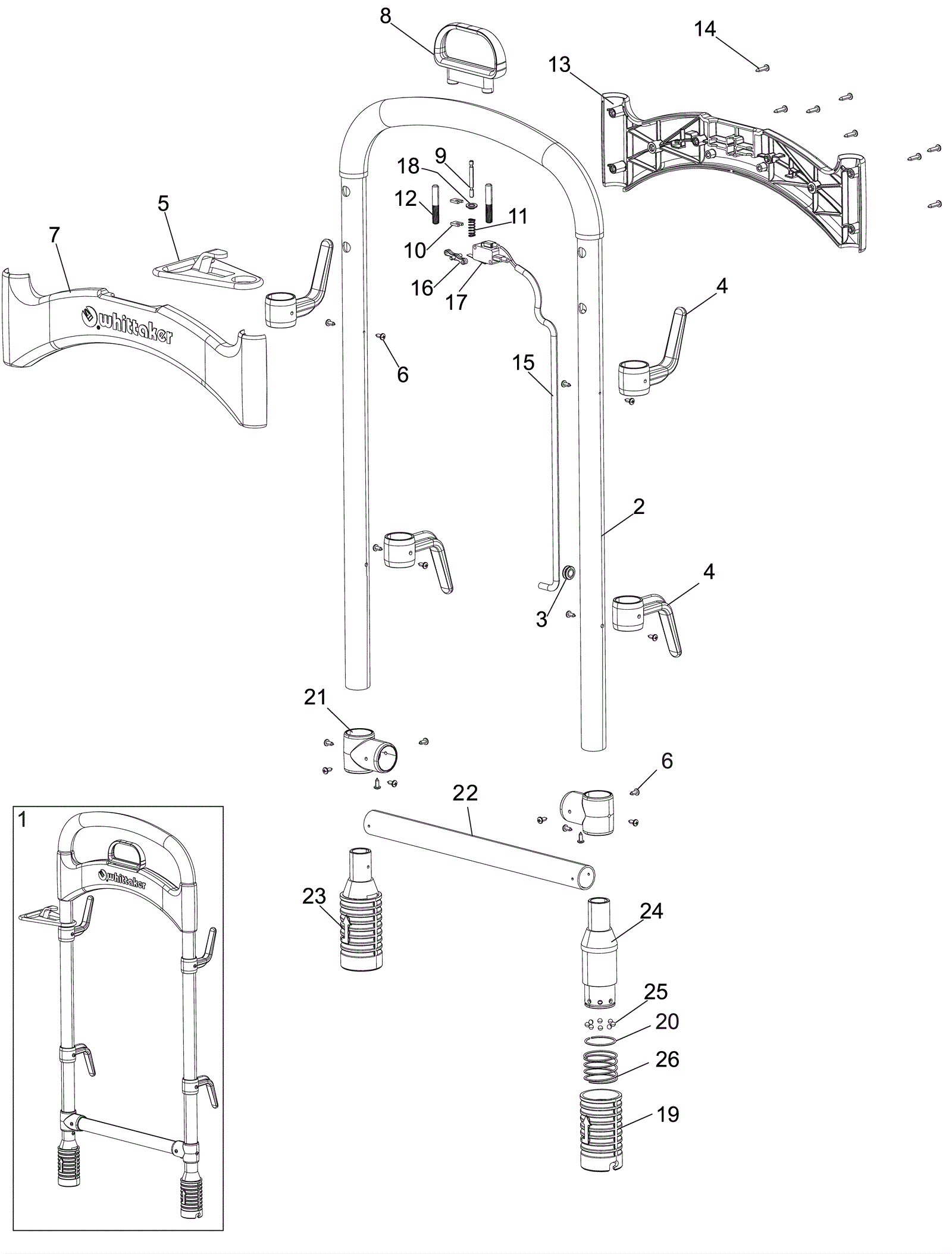

TRIO 25 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 251-1196 Handle assembly Call for price 1 (includes 2-26) usually ships 7-18 days
2 251-1197 Pipe handle Call for price 1 usually ships 7-18 days
3 251-2171 Grommet $2.00 1 usually ships 7-18 days
4 251-2226 Cable holder $14.95 4 usually ships 7-18 days
5 251-2225 Cable retainer $5.00 1 usually ships 7-18 days
6 251-2133 Screw $1.00 18 usually ships 7-18 days
7 251-2224 Front switch housing $43.00 1 usually ships 7-18 days
8 251-2227 Pull handle $12.50 1 usually ships 7-18 days
9 251-2229 Handle pin $10.44 1 usually ships 7-18 days
10 251-2230 Cable clamp $1.00 2 usually ships 7-18 days
11 251-2232 Handle spring $2.09 1 usually ships 7-18 days
12 251-2231 Pin $5.00 2 usually ships 7-18 days
13 251-2228 Rear switch housing $43.00 1 usually ships 7-18 days
14 251-2186 Screw M3 x 16mm $1.00 8 usually ships 7-18 days
15 251-2235 Cable assembly $33.33 1 usually ships 7-18 days
16 251-2233 Pump actuator switch $2.08 1 usually ships 7-18 days
17 251-2234 Pump switch $20.83 1 usually ships 7-18 days
18 251-2256 Bush spring $2.00 1 usually ships 7-18 days
19 251-2248 Coupling outer sleeve $10.02 2 usually ships 7-18 days
20 251-2246 Spring clip $1.50 2 usually ships 7-18 days
21 251-2241 Pipe holder $43.00 2 usually ships 7-18 days
22 251-2242 Pipe $41.75 1 usually ships 7-18 days
23 251-2243 Top handle connector assembly $208.38 2 usually ships 7-18 days
24 251-2244 Top handle connector $158.65 2 usually ships 7-18 days
25 251-2245 Coupling $5.00 16 usually ships 7-18 days
26 251-2247 Spring coupling $5.84 2 usually ships 7-18 days
