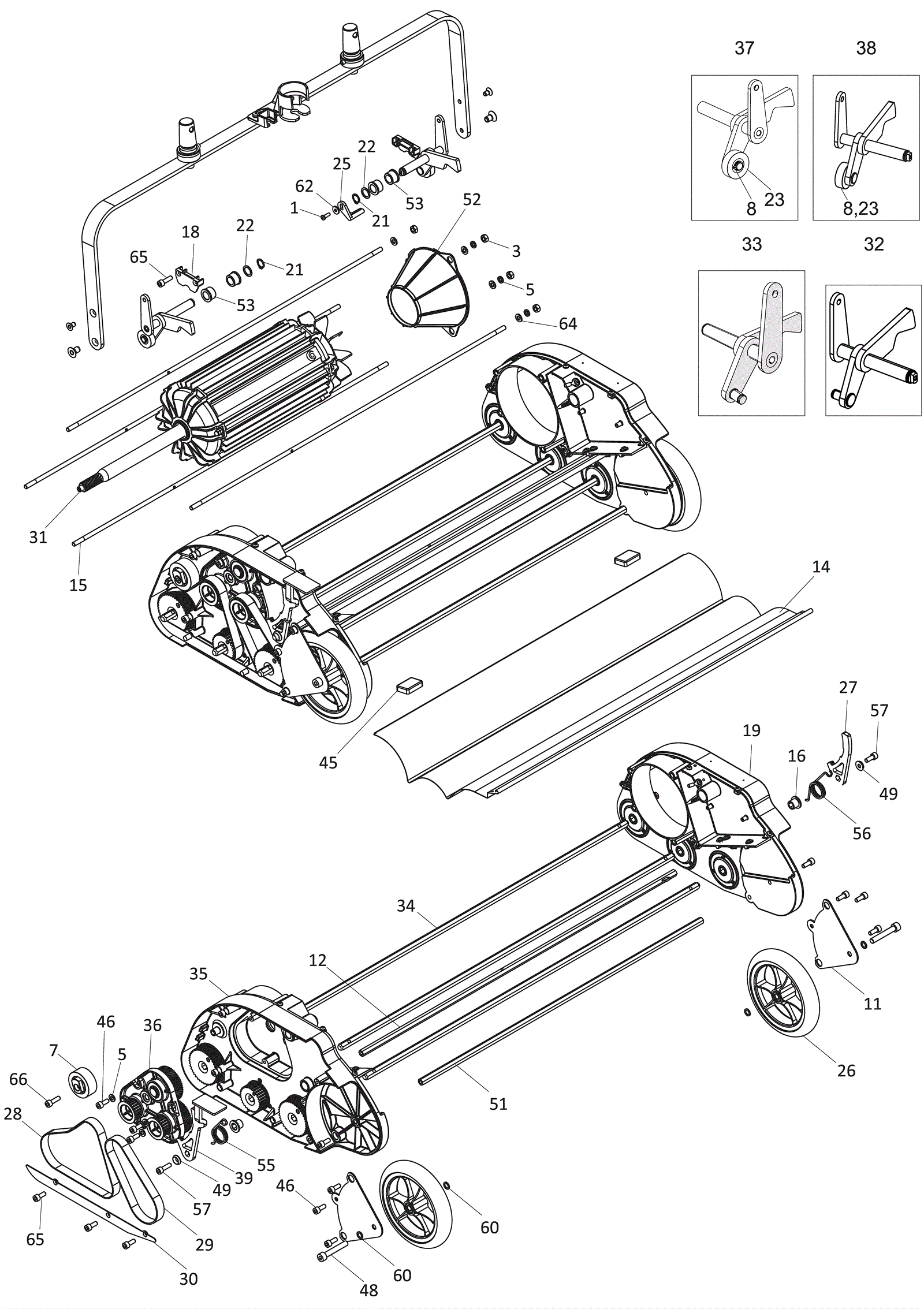

TRIO 25 Chassis Assembly-2

#PartDescriptionPriceReqNotesAvailability
1 999-1898 Screw M4-.7 x 12mm pan head phillips stainless steel $0.99 1 ships same day
3 251-1149 Nut $1.30 4 usually ships 7-18 days
5 251-2161 Washer $1.00 7 usually ships 7-18 days
7 251-2089 Idler assembly $41.67 1 usually ships 7-18 days
8 251-2124 Circlip $2.00 2 usually ships 7-18 days
11 251-2096 Wheel support $41.67 2 usually ships 7-18 days
12 251-1187 Shaft wedge $95.19 1 usually ships 7-18 days
14 251-1188 Brush shield $225.45 1 usually ships 7-18 days
15 251-1189 Tie rod $19.96 4 usually ships 7-18 days
16 251-2092 Bush wedge $5.00 2 usually ships 7-18 days
18 251-2097 Cap stopper $5.00 2 usually ships 7-18 days
19 251-2144 Idle housing assembly $533.33 1 usually ships 7-18 days
21 251-2271 Clip $1.00 2 usually ships 7-18 days
22 251-2126 Washer $2.00 2 usually ships 7-18 days
23 251-2119 Bearing $54.93 2 usually ships 7-18 days
25 251-2159 Actuator switch lever $8.33 1 usually ships 7-18 days
26 251-2095 Wheel $65.85 2 usually ships 7-18 days
27 251-2150 Right hand wedge $16.67 1 usually ships 7-18 days
28 251-2274 Belt 5MR 450 $101.87 1 usually ships 7-18 days
29 251-2275 Belt 5MR 350 $105.02 1 usually ships 7-18 days
30 251-2094 Belt shield $37.50 1 usually ships 7-18 days
31 251-1190 Motor assembly $1,628.25 1 usually ships 7-18 days
32 251-2149 Right hand wedge lever $111.67 1 usually ships 7-18 days
33 251-2098 Left hand wedge lever $111.67 1 usually ships 7-18 days
34 251-1191 Brush shaft $105.13 3 usually ships 7-18 days
35 251-2077 Drive housing assembly $776.55 1 usually ships 7-18 days
36 251-1192 Gear housing assembly $626.25 1 usually ships 7-18 days
37 251-2139 Left hand lever assembly $158.33 1 (includes 8,23) usually ships 7-18 days
38 251-2132 Right hand lever assembly $158.33 1 (includes 8,23) usually ships 7-18 days
39 251-2090 Left hand wedge assembly $50.00 1 usually ships 7-18 days
45 251-2167 Shield $5.00 2 usually ships 7-18 days
46 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 15 ships same day
48 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 2 ships same day
49 251-2127 Bridge washer $5.00 2 usually ships 7-18 days
51 251-1193 Support shaft $91.85 1 usually ships 7-18 days
52 251-2148 Diverter $12.50 1 usually ships 7-18 days
53 251-2120 Bushing $5.00 4 usually ships 7-18 days
55 251-2091 Left hand spring $9.17 1 usually ships 7-18 days
56 251-2151 Right hand wedge spring $9.17 1 usually ships 7-18 days
57 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 4 ships same day
60 251-2252 Washer $0.90 4 usually ships 7-18 days
62 251-2189 Washer $1.00 7 usually ships 7-18 days
64 251-2253 Washer $1.50 3 usually ships 7-18 days
65 999-1314 Screw M4-.7 x 10mm socket head zinc $0.99 5 usually ships 11-24 days
66 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 1 ships same day
N/S 251-1212 25 inch outer brush $242.15 2 usually ships 7-18 days
N/S 251-1213 25 inch center brush $242.15 1 usually ships 7-18 days
